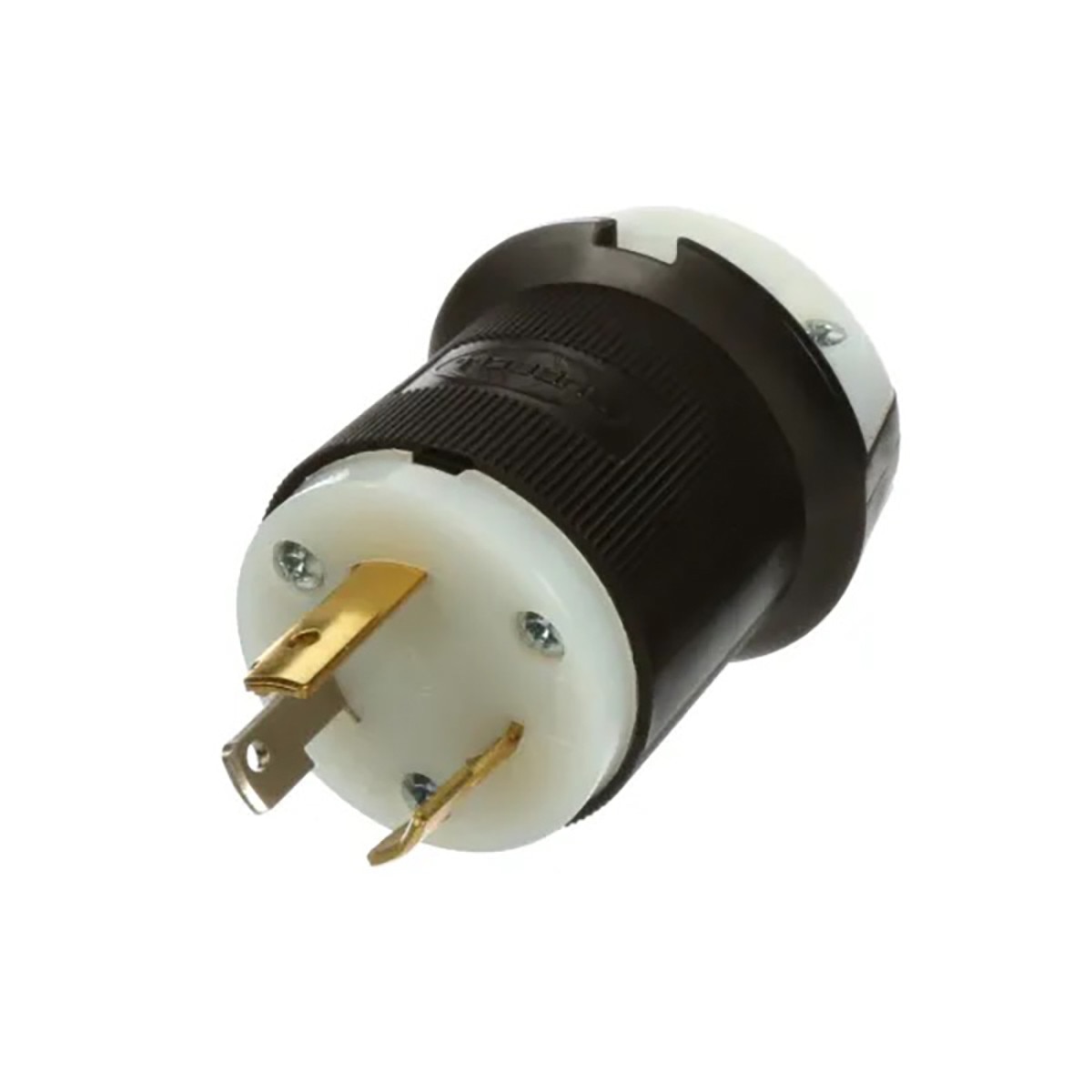

Hubbell HBL2611BK Insulgrip Plug Twist-Lock

Hubbell’s Twist-Lock Devices feature a new 30A, 125V AC, 2 Pole, 3 Wire Grounding Insulgrip Plug.


Features:


• Superior cord grip design protects terminations from excess strain.
• Clear, funnel shaped wire entry for ease of termination.
• Integral dust shield protects wiring chamber from dust or contaminants.
• Cord Diameter .360"-.930"(9-24)
• UPC 783585038735
• Catalog Number HBL2611
• Black and white nylon.
• Listed to UL 498
• Fed.Spec. W-C-596
• Certified to CSA C22.2 No.42
• Electrical:
  • Current Interrupting Certified for current interrupting at full rated current
  • Dielectric Voltage Withstands 2,000V minimum
• Mechanical:
  • Terminal Accommodation #16 AWG - #8 AWG stranded copper wire only.
  • Terminal Identification Terminals identified in accordance with UL 498
• Environmental:
  • Flammability HB or better per UL94/CSA 22.2 No.0.17
  • Moisture Resistance IP20 Suitability
• Operating Temperatures- Maximum Continuous 75 degrees C; Minimum -40 degrees C (w/o impact)
• Accessories:
  • Connector HBL2613
  • Single Receptacle HBL2610
  • Flanged Receptacle HBL2616
  • Weatherproof Boot HBL6031
• Resources:
  • Customer Use Drawing
  • eCatalog

Specifications:


• Housing / Cord Clamp - Nylon
• Terminal Retainer - Clear polycarbonate
• Blades - Brass
• Terminal Screws - #10-32 Brass (Phillips / Slotted / Robertson)
• Terminal Clamp - Cold rolled steel – nickel plated
• Assembly Screws - Steel - nickel plated
