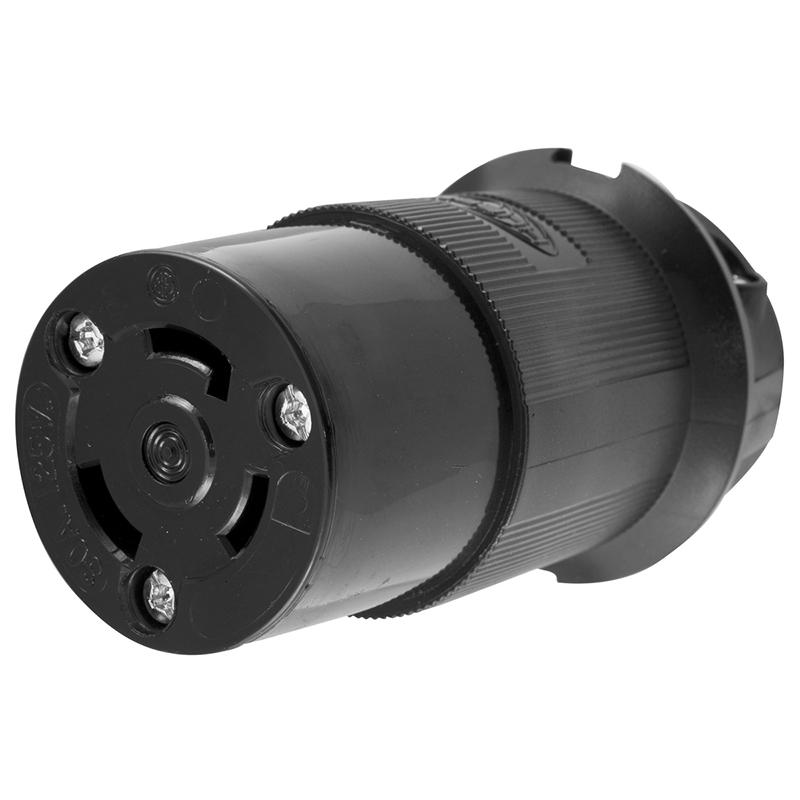

Hubbell HBL2613BK Twist-Lock Insulgrip Female Connector - 30A 125V - Black
Details
Locking Devices, Twist-Lock®, Industrial, Female Connector Body, 30A 125V, 2-Pole 3-Wire Grounding, L5-30R, Screw Terminal, Black and White.
WIRING_HBL2613_spec.pdf
Features:
- Superior cord grip design protects terminations from excess strain.
- Clear, funnel shaped wire entry for ease of termination.
- Integral dust shield protects wiring chamber from dust or contaminants.
General:
- Application: Heavy Duty Industrial
- Color: Noir, blanc
- Cord Range: 0.360"-0.930" (9-24)
- Environmental Conditions: Indoor Dry Unless Protected By Additional Means
- Insulation: Insulated Body
- Item Type: 30A Grounding Insulgrip® Connector
- Material: Nylon
- Material - Mounting Hardware: Cord Mounted
- Number Of Poles: 2-Pole
- OEM Brand Name: Hubbell Wiring Device-Kellems
- Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
Performance:
- Electrical - Current Interrupting - Certified for current interrupting at full rated current
- Electrical - Dielectric Voltage - Withstands 2,000V minimum
- Environmental - Flammability - HB or better per UL94 or CSA 22.2 No. 0.6
- Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact)
- Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only.
- Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
- Type: Connector Body
- UPC: 783585038766
Dimensions:
- 2.26 in x 2.26 in x 3.86 in
- Display Size: Standard
- Height: 3.86 in
- Length: 2.26 in
- Weight: 0.30 lb
- Width: 2.26 in
Electrical Ratings:
- Amperage Rating: 30 A
- Connectivity: Pressure Terminal Screws
- Current / Amperage Rating: 30 A
- Current Rating: 30 A
- Dielectric Strength: Withstands 2,000V minimum
- Phase: Single Phase
- Voltage Rating: 125 VAC
- Voltage Rating Description: 125 VAC
Conductor Related:
- Cable Range: 0.360 - 0.930 in
- Number Of Wires: 3-Wire
- Wire Size: #16 AWG to #8 AWG
Certifications and Compliance:
- Industry Standard(s)
- Certified to CSA C22.2 No.42
- Fed.Spec. W-C-596
- Listed to UL 498
- Nema Rating: L5-30R
Logistics:
- Carton Quantity: 30
