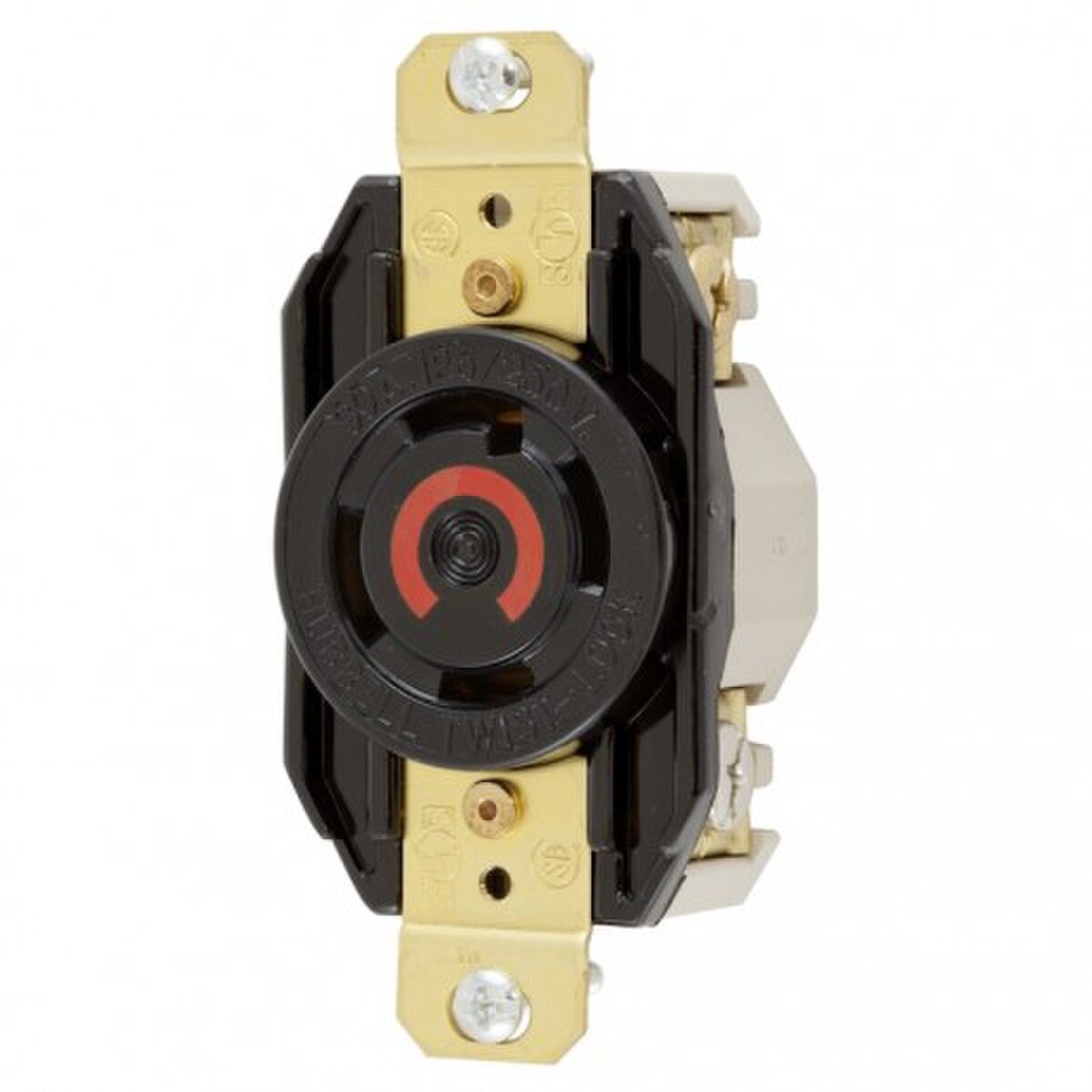

Hubbell HBL2710 L14-30 Receptacle

Locking Devices, Twist-Lock®, Industrial, Flush Receptacle, 30A 125/250V, 3-Pole 4-Wire Grounding, L14-30R, Screw Terminal, Black.

Features:

• Wire restraint recess for both back and side wiring, greatly reduces the possibility of loosening the terminal connection
• Face color coding by voltage facilitates locating and mating of proper devices
• All-brass mounting and grounding system provides a lower resistance ground path and greater resistance to corrosion than steel mounting systems

General:

• Application: Heavy Duty Industrial
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• Horsepower - Maximum: 2
• Item Type: Single Flush Receptacles
• Material: Nylon
• Material - Mounting Hardware: Screw Mounting
• Number Of Poles: 3-Pole
• OEM Brand Name: Hubbell Wiring Device-Kellems
• Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact

Performance:

• Electrical - Current Interrupting - Certified for current interrupting at full rated current
• Electrical - Dielectric Voltage - Withstands 2,000V minimum
• Environmental - Flammability - V2 or better per UL94/CSA 22.2 No.0.17
• Environmental - Moisture Resistance - IP20 Suitability
• Environmental - Operating Temperatures - Maximum Continuous 75°C, Minimum -40°C (w/o impact)
• Mechanical - Terminal Accommodation - #16 AWG - #8 AWG solid or stranded copper wire only.
• Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
• Type: Single Flush Receptacle
• UP: 783585236087

Dimensions:

• 3.28 in x 1.7 in x 1.31 in
• Display Size: Standard Sized Product
• Height: 1.31 in
• Length: 3.28 in
• Weight: 0.3 lb
• Width: 1.7 in

Electrical Ratings:

• Amperage Rating: 30 A
• Connectivity: Back and Side Wired Screw Terminals
• Current / Amperage Rating: 30 A
• Current Rating: 30 A
• Dielectric Strength: Withstands 2,000V minimum
• Phase: Single Phase
• Voltage Rating: 125/250 VAC
• Voltage Rating Description: 125/250 VAC

Conductor Related:

• Number Of Wires    4-Wire
• Wire Size    #16 AWG to #8 AWG

Certifications and Compliance:

• Industry Standard(s)
• Certified to CSA C22.2 No.42
• Fed.Spec. W-C-596
• Listed to UL 498
• Nema Rating    L14-30R

Logistics:

• Carton Quantity: 10
