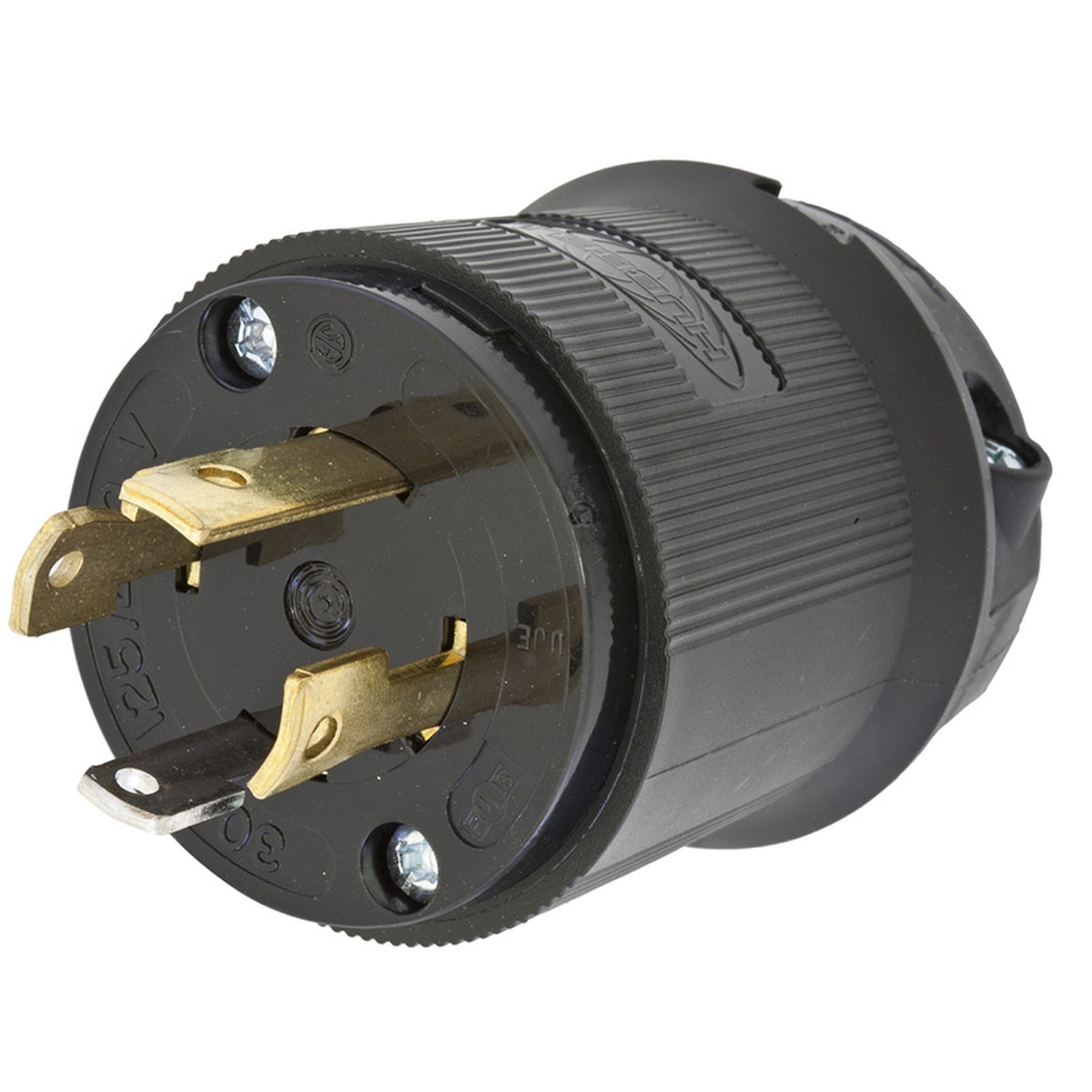

Hubbell HBL2711BK Twist-Lock Plug - 2P3W 30A 125/250V L14-30P - Black Nylon
Details
Locking Devices, Twist-Lock®, Insulgrip® Plug, 30A, 125/250V AC, 3 Pole, 4 Wire Grounding, NEMA L14-30P, Black nylon
Features:
- Superior cord grip design protects terminations from excess strain
Clear, funnel shaped wire entry for ease of termination - Integral dust shield protects wiring chamber from dust or contaminants
General:
- Application Extra Heavy Duty Industrial
- Color: Black
- Cord Range: 0.350"-1.150" (9-29)
- Environmental Conditions: Indoor Dry Unless Protected By Additional Means
- Horsepower - Maximum: 2
- Item Type: 30A Insulgrip® Plug
- UL 498
- Fed.Spec. W-C-596
- CSA C22.2 No.42
- Material: Nylon
- Material - Mounting Hardware: Cord Mounted
- Number Of Poles: 3-Pole
- OEM Brand Name: Hubbell Wiring Device-Kellems
- Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
Performance:
- Electrical-Current Interrupting - Certified for current interrupting at full rated current
- Electrical - Dielectric Voltage - Withstands 2,000V minimum
- Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only
- Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
- Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17
- Environmental - Operating Temperatures - Maximum Continuous 75°C
- Minimum -40°C (w/o impact)
- Environmental - Moisture Resistance - IP20 Suitability
- UPC: 783585172323
Dimensions:
- 2.75 in x 2.33 in x 2.33 in
- Display Size Standard Sized
- Height: 2.33 in
- Length: 2.75 in
- Weight: 0.30 lb
- Width: 2.33 in
Electrical Ratings:
- Amperage Rating: 30 A
- Connectivity: Pressure Terminal Screws
- Current / Amperage Rating: 30 A
- Current Rating: 30 A
- Dielectric Strength: Withstands 2,000V minimum
- Phase: Single Phase
- Voltage Rating: 125/250 VAC
- Voltage Rating Description: 125/250 VAC
Conductor Related:
- Cord Type: All Listed Portables
- Number Of Wires: 4-Wire Grounding
- Wire Size: #16 AWG to #8 AWG
Certifications and Compliance:
- Industry Standard(s)
- Certified to CSA C22.2 No.42
- Fed.Spec. W-C-596
- Listed to UL 498
- Nema Rating: L14-30P
Logistics:
- Carton Quantity: 30
