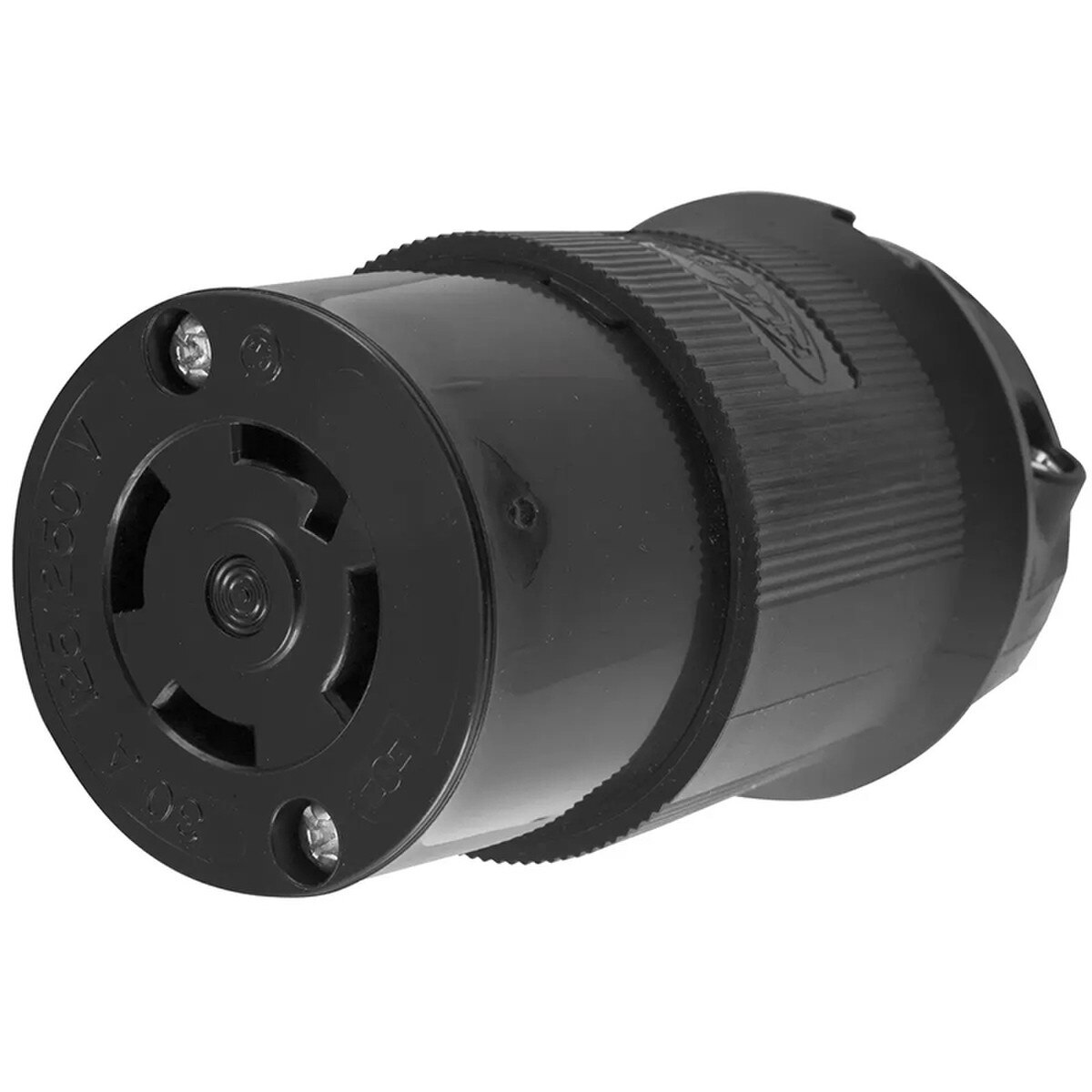

Hubbell HBL2713BK Twist-Lock Plug - 2P3W 30A 125/250V L14-30R - Black Nylon

Locking Devices, Twist-Lock®,Insulgrip® Connector, 30A, 125/250V AC, 3 Pole, 4 Wire Grounding, NEMA L14-30R, Black nylon

Features:

• Superior cord grip design protects terminations from excess strain
• Clear, funnel shaped wire entry for ease of termination
• Integral dust shield protects wiring chamber from dust or contaminants

General:

• Application: Heavy Duty Industrial
• Color: Black
• Cord Range: 0.350"-1.150" (9-29)
• Environmental Conditions    Indoor Dry Unless Protected By Additional Means
• Insulation: Insulated Body
• Item Type: 30A Insulgrip® Connector
• UL 498
• Fed.Spec. W-C-596
• CSA C22.2 No.42
• Material: Nylon
• Material - Mounting Hardware: Cord Mounted
• Number Of Poles: 3-Pole
• OEM Brand Name: Hubbell Wiring Device-Kellems
• Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact

Performance:

• Electrical-Current Interrupting - Certified for current interrupting at full rated current
• Electrical - Dielectric Voltage - Withstands 2,000V minimum
• Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only
• Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
• Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17
• Environmental - Operating Temperatures - Maximum Continuous 75°C
• Minimum -40°C (w/o impact)
• Environmental - Moisture Resistance - IP20 Suitability
• UPC: 783585172330

Dimensions:

• 2.33 in x 2.33 in x 3.86 in
• Display Size: Standard
• Height: 3.86 in
• Length: 2.33 in
• Weight: 0.60 lb
• Width: 2.33 in

Electrical Ratings:

• Amperage Rating: 30 A
• Connectivity: Pressure Terminal Screws
• Current / Amperage Rating: 30 A
• Current Rating: 30 A
• Dielectric Strength: Withstands 2,000V minimum
• Phase: Single Phase
• Voltage Rating: 125/250 VAC
• Voltage Rating Description: 125/250 VAC

Conductor Related:

• Number Of Wires: 4-Wire Grounding
• Wire Size    #16 AWG to #8 AWG

Certifications and Compliance:

• Industry Standard(s)
• Certified to CSA C22.2 No.42
• Fed.Spec. W-C-596
• Listed to UL 498
• Nema Rating    L14-30R

Logistics:

• Carton Quantity: 30
