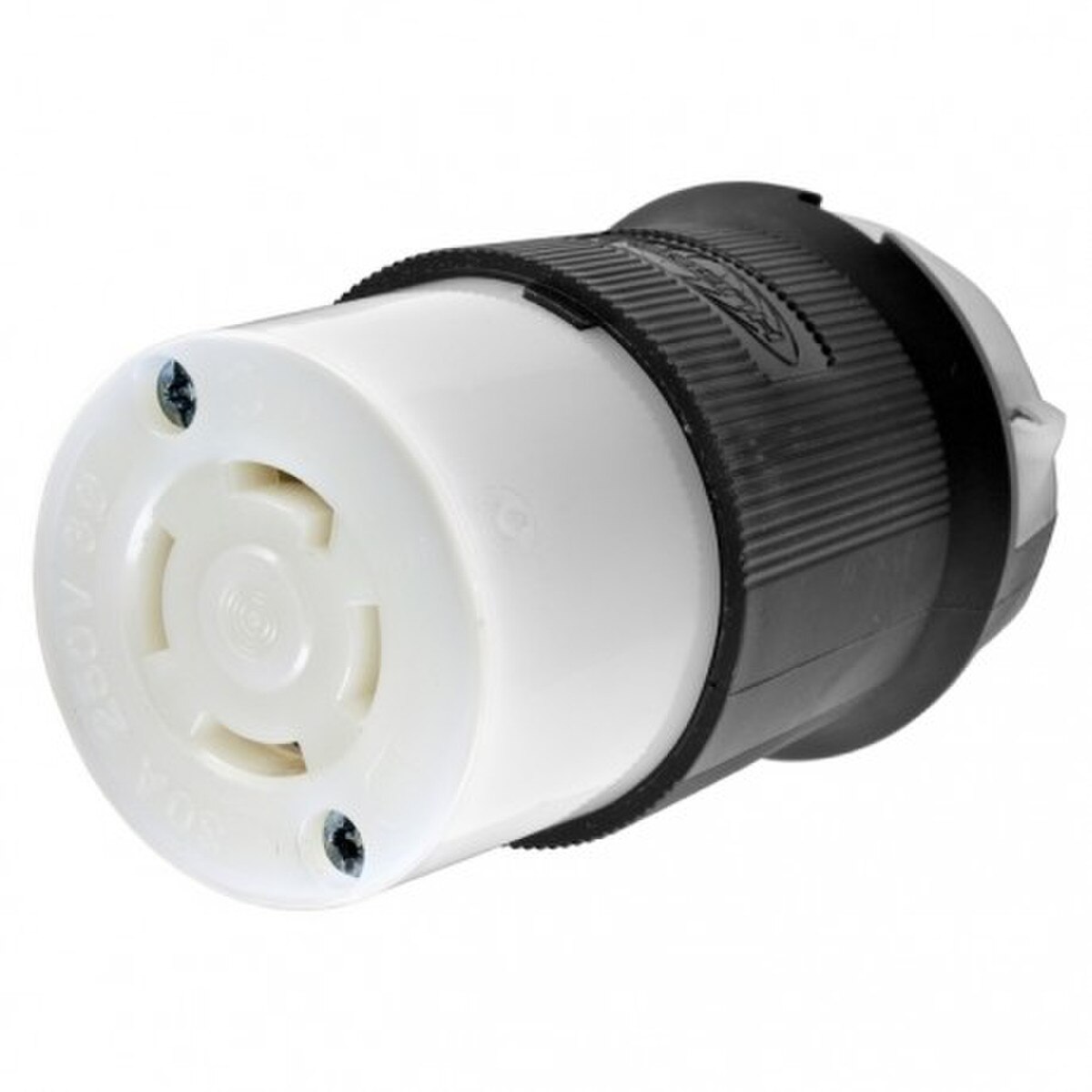

Hubbell HBL2723 L15-30 Female Connector

Locking Devices, Twist-Lock®, Industrial, Female Connector Body, 30A 3-Phase Delta 250V AC, 3-Pole 4-Wire Grounding, L15-30R, Screw Terminal, Black and White.

Features:

• Superior cord grip design protects terminations from excess strain.
• Clear, funnel shaped wire entry for ease of termination.
• Integral dust shield protects wiring chamber from dust or contaminants.

General:

• Application: Heavy Duty Industrial
• Color: Noir, blanc
• Cord Range: 0.350"-1.150" (9-29)
• Environmental Conditions    Indoor Dry Unless Protected By Additional Means
• Insulation: Insulated Body
  Item Type: 30A Grounding Insulgrip® Connector
• Material: Nylon
• Material - Mounting Hardware: Cord Mounted
• Number Of Poles: 3-Pole
• OEM Brand Name: Hubbell Wiring Device-Kellems
• Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact

Performance:

•  Electrical - Current Interrupting - Certified for current interrupting at full rated current
• Electrical - Dielectric Voltage - Withstands 2,000V minimum
• Environmental - Flammability - HB or better per UL94 or CSA 22.2 No. 0.6
• Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact)
• Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only.
• Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
• Type: Connector Body
• UPC: 783585039251

Dimensions:

• 2.33 in x 2.33 in x 3.86 in
• Display Size: Standard
• Height:: 3.86 in
• Length: 2.33 in
• Weight: 0.40 lb
• Width: 2.33 in

Electrical Ratings:

• Amperage Rating: 30 A
• Connectivity: Pressure Terminal Screws
  Current / Amperage Rating    30 A
• Current Rating    30 A
• Dielectric Strength    Withstands 2,000V minimum
• Phase    Three Phase
• Voltage Rating    3 Phase 250 VAC
• Voltage Rating Description    3 Phase 250 VAC

Conductor Related:

• Cable Range    0.350 - 1.150 in
• Number Of Wires    4-Wire
• Wire Size    #16 AWG to #8 AWG

Certifications and Compliance:

• Industry Standard(s)
• Certified to CSA C22.2 No.42
• Fed.Spec. W-C-596
• Listed to UL 498
• Nema Rating    L15-30R

Logistics:

• Carton Quantity    30
