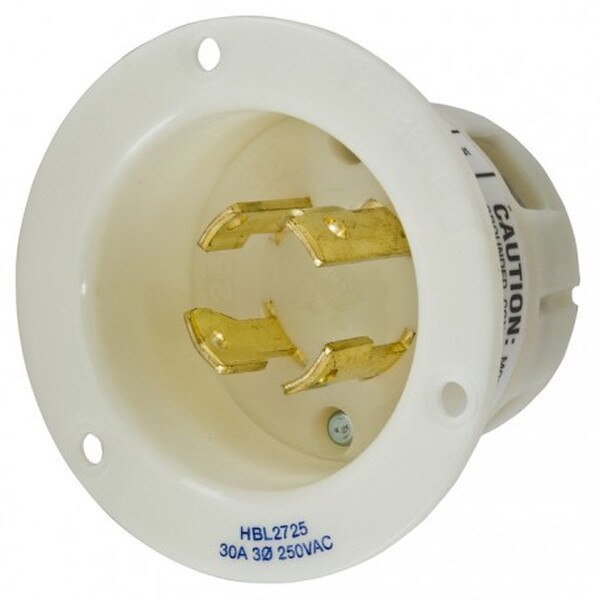

Hubbell HBL2725 L15-30 Flanged Inlet

Locking Devices, Twist-Lock®, Industrial, Insulgrip® Flanged Inlet, 30A 3-Phase 250V AC, 3-Pole 4-Wire Grounding, NEMA L15- 30P, Screw Terminal, Nylon casing, Back wired, White.

Features:

• Backwired terminations for ease of installation
• #10-32 Multiple drive terminal screws (Slotted, Phillips, Robertson)
• Mounting screws included

General:

• Application: Extra Heavy Duty Industrial
• Color: White
• Environmental Conditions    Indoor Dry Unless Protected By Additional Means
• Insulation    Insulated Body
• Item Type: 30A Grounding Insulgrip® Flanged Inlet
• Material: Nylon
• Material - Mounting Hardware: Screw Mounting
• Number Of Poles: 3-Pole
• OEM Brand Name: Hubbell Wiring Device-Kellems
• Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact

Performance:

• Electrical - Current Interrupting - Certified for current interrupting at full rated current
• Electrical - Dielectric Voltage - Withstands 2,000V minimum
• Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17
• Environmental - Moisture Resistance - IP20 Suitability
• Environmental - Operating Temperatures - Maximum Continuous 75°C. Minimum -40°C (w/o impact)
• Mechanical - Terminal Accommodation - #16 AWG - #8 AWG solid or stranded copper wire only.
• Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
• Type: Flanged Inlet
• UPC: 783585039282

Dimensions:

• 3.06 in x 3.06 in x 2.27 in
• Display Size    Standard Sized Product
• Height: 2.27 in
• Length: 3.06 in
• Weight: 0.20 lb
• Width: 3.06 in

Electrical Ratings:

• Amperage Rating: 30 A
• Connectivity: Back Wired Screw Terminals
• Current / Amperage Rating: 30 A
• Current Rating: 30 A
• Dielectric Strength: Withstands 2,000V minimum
  Phase: Three Phase
• Voltage Rating: 3 Phase 250 VAC
• Voltage Rating Description: 3 Phase 250 VAC

Conductor Related:

• Number Of Wires: 4-Wire
• Wire Size: #16 AWG to #8 AWG

Certifications and Compliance:

• Industry Standard(s)
• Certified to CSA C22.2 No.42
• Fed.Spec. W-C-596
• Listed to UL 498
• Nema Rating    L15-30P

Logistics:

• Carton Quantity: 10
