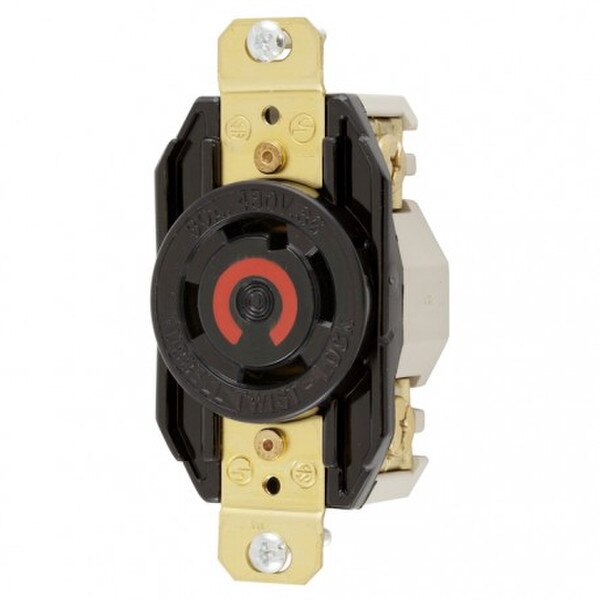

Hubbell HBL2730 L16-30 Single Receptacle
Details
Locking Devices, Twist-Lock®, Industrial, Single Flush Receptacle, 30A 3-Phase 480V AC, 3-Pole 4-Wire Grounding, NEMA L16-30R, Screw Terminal, Nylon face, Back and side wire, Black.
Features:
- High-impact, abuse-resistant nylon face
- Wire restraint recess for both back and side wiring, greatly reduces the possibility of loosening the terminal connection
- Face color coding by voltage facilitates locating and mating of proper devices
- All-brass mounting and grounding system provides a lower resistance ground path and greater resistance to corrosion than steel mounting systems
General:
- Application: Heavy Duty Industrial
- Environmental Conditions Indoor Dry Unless Protected By Additional Means
- Horsepower - Maximum 10
- Item Type Single Flush Receptacles
- Material Nylon
- Material - Mounting Hardware Screw Mounting
- Number Of Poles 3-Pole
- OEM Brand Name Hubbell Wiring Device-Kellems
- Operating Temperature -40°C to 85 °C
Performance:
- Electrical - Current Interrupting - Certified for current interrupting at full rated current
- Electrical - Dielectric Voltage - Withstands 2,000V minimum
- Environmental - Flammability - V2 or better per UL94/CSA 22.2 No.0.17
- Environmental - Moisture Resistance - IP20 Suitability
- Environmental - Operating Temperatures - Maximum Continuous 75°C, Minimum -40°C (w/o impact)
- Mechanical - Terminal Accommodation - #16 AWG - #8 AWG solid or stranded copper wire only
- .Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
- Type: Single Flush Receptacle
- UPC: 783585236155
Dimensions:
- 3.28 in x 1.7 in x 1.31 in
- Display Size: Standard Sized Product
- Height: 1.31 in
- Length: 3.28 in
- Weight: 0.25 lb
- Width: 1.7 in
Electrical Ratings:
- Amperage Rating: 30 A
- Connectivity: Back and Side Wired Screw Terminals
- Current / Amperage Rating: 30 A
- Current Rating: 30 A
- Dielectric Strength: Withstands 2,000V minimum
- Phase: Three Phase
- Voltage Rating: 3 Phase 480 VAC
- Voltage Rating Description: 3 Phase 480 VAC
Conductor Related:
- Number Of Wires: 4-Wire
- Wire Size : #16 AWG to #8 AWG
Certifications and Compliance:
- Industry Standard(s)
- Certified to CSA C22.2 No.42
- Fed.Spec. W-C-596
- Listed to UL 498
- Nema Rating: L16-30R
Logistics:
- Carton Quantity: 10
