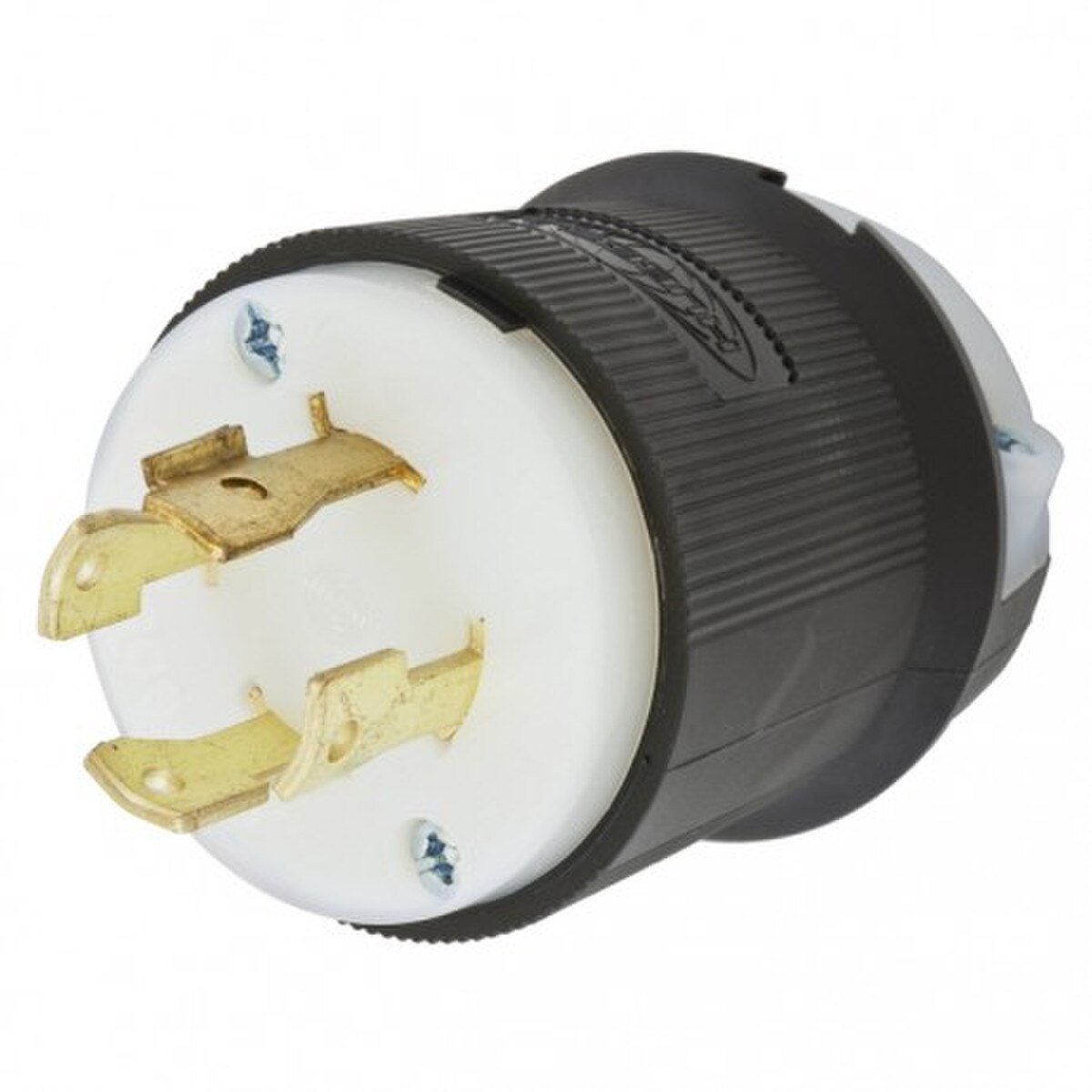

Hubbell HBL2741 L17-30 Male Plug

Locking Devices, Twist-Lock®, Industrial, Male Insulgrip® Plug, 30A 3-Phase 600V AC, 3-Pole 4-Wire Grounding, NEMA L17-30P, Screw Terminal, Black and White Nylon.

Features:

• Ribbed nylon housing provides a secure grip and impact and chemical resistance.
• Superior cord grip design protects terminations from excess strain.
• Clear, funnel shaped wire entry for ease of termination.
• Integral dust shield protects wiring chamber from dust or contaminants.

General:

• Application: Extra Heavy Duty Industrial
• Color: Noir, blanc
• Cord Range: 0.350"-1.150" (9-29)
• Environmental Conditions    Indoor Dry Unless Protected By Additional Means
• Item Type    30A Grounding Insulgrip® Plug
• Material    Nylon
• Material - Mounting Hardware    Cord Mounted
• Number Of Poles    3-Pole
  OEM Brand Name    Hubbell Wiring Device-Kellems
• Operating Temperature    Maximum continuous 75°C and minimum -40°C without Impact

Performance:

• Electrical - Current Interrupting - Certified for current interrupting at full rated current
• Electrical - Dielectric Voltage - Withstands 2,000V minimum
  Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17
• Environmental - Moisture Resistance - IP20 Suitability
• Environmental - Operating Temperatures - Maximum Continuous 75°C, Minimum -40°C (w/o impact)
• Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only.
• Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
• Type    Plugs
• UPC    783585039374

Dimensions:

• 2.33 in x 2.33 in x 2.75 in
• Display Size: Standard Sized
• Height: 2.75 in
• Length: 2.33 in
• Weight: 0.30 lb
• Width: 2.33 in

Electrical Ratings:

• Amperage Rating: 30 A
• Connectivity    Pressure Terminal Screws
• Current / Amperage Rating    30 A
• Current Rating    30 A
• Dielectric Strength    Withstands 2,000V minimum
• Phase    Three Phase
• Voltage Rating    3 Phase 600 VAC
• Voltage Rating Description    3 Phase 600 VAC

Conductor Related:

• Cable Range: 0.350 - 1.150 in
• Cord Type: All Listed Portables
• Number Of Wires: 4-Wire
• Wire Size: #16 AWG to #8 AWG

Certifications and Compliance:

• Industry Standard(s)
• Certified to CSA C22.2 No.42
• Fed.Spec. W-C-596
• Listed to UL 498
• Nema Rating    L17-30P

Logistics:

• Carton Quantity: 30
