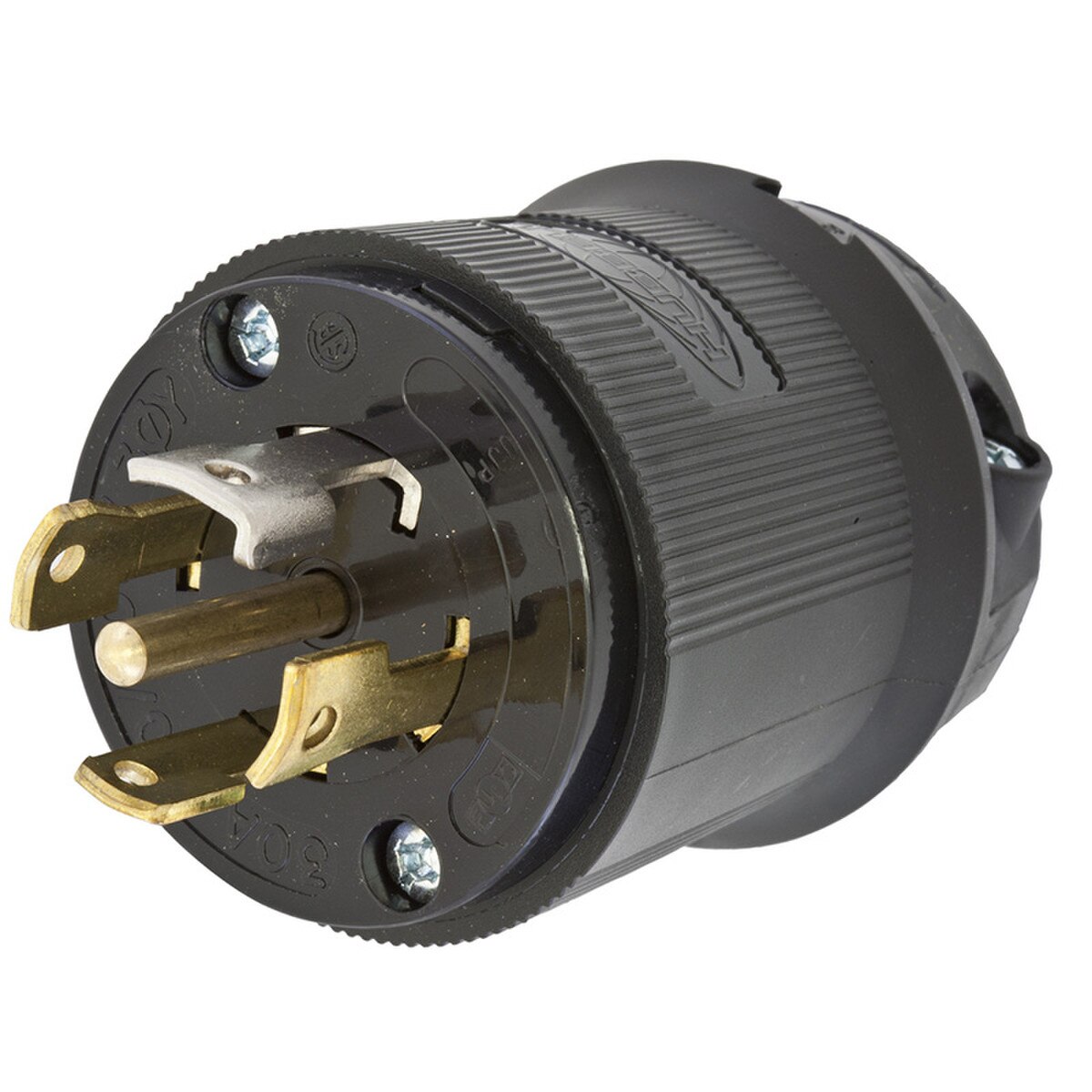

Hubbell HBL2811BK Insulgrip L21-30R Twistlock - Male Plug - Black
Details
Specifications:
- Wiring Scheme: 4-Pole, 5-Wire Grounding
- Amperage: 30A
- Voltage: 3 Phase Y 120/208V AC
- NEMA Configuration: L21-30R
- Item Style: Insulgrip
- Device Color: Black
- Horsepower: 3
- Cord Dia.: .35"-1.15" (9-29)
- Blade Holder Material: Black Nylon
- Terminal Retainer Material: Clear polycarbonate
- Housing Material: Black Nylon
- Cord Clamp Material: Black Nylon
- Blade Material: Brass
- Terminal Clamp Material: .08" (2) steel-nickel plated
- Terminal Screw Material: #10-32 Brass (white finish on neutral screw when used) Multi-drive
- Ground Screw Material: #10-32 Brass (green finish) Multi-drive
- Cord Clamp Screw Material: Steel, zinc plated Multi-drive
- Body Holding Screw Material: Steel, zinc plated Multi-drive
- Ratings: Molded In or Stamped On
- Catalog No: Permanently ink marked on product
- Dielectric Voltage Withstand: 2,000V minimum
- Current Interrupting: Certified for current interrupting at full rated current
- Temperature Rise: Max 30C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75.
- Cord Accommodation: Round portable service cords of diameters commensurate with the device rating as defined in UL Standard 62, CSA C22.2 No. 49.
- Terminal Accommodation: 30A #10 AWG
- Terminal Identification: Terminals identified in accordance with UL 498 (X, Y, Z, White, Green)
- Flammability: HB or better per UL 94 or CSA 22.2 No. 0.6
- Operating Temperatures: Maximum Continuous 75 C Minimum -40 C (w/o impact)
- Moisture Resistance: IP20
