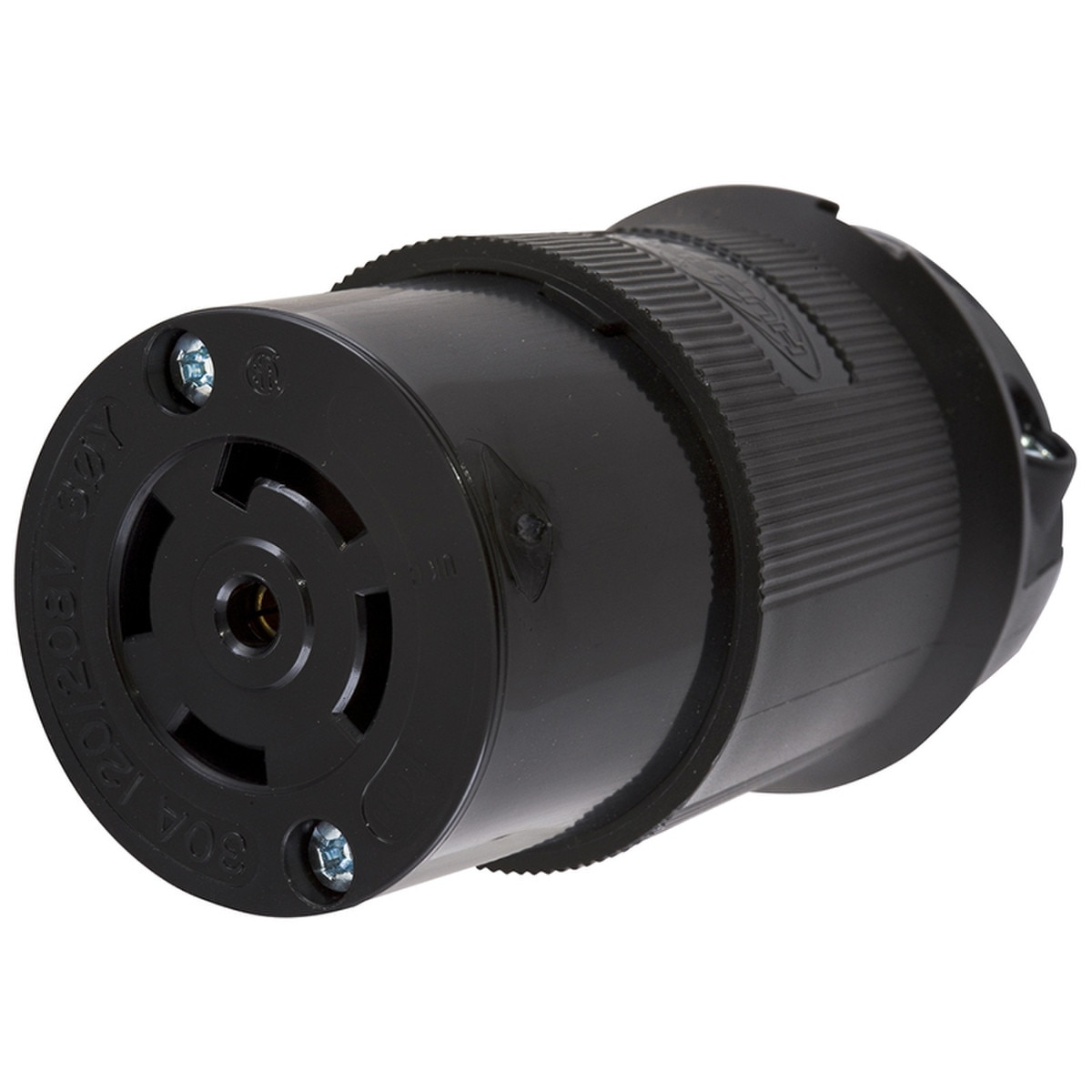

Hubbell HBL2813BK Insulgrip L21-30R Twistlock - Female Connector - Black

Specifications:

• Wiring Scheme: 4-Pole, 5-Wire Grounding
• Amperage: 30A
• Voltage: 3 Phase Y 120/208V AC
• NEMA Configuration: L21-30R
• Item Style: Insulgrip
• Device Color: Black
• Cord Dia.: .35"-1.15" (9-29)
• Contact Nose Material: Black Nylon
• Terminal Retainer Material: Clear polycarbonate
• Housing Material: Black Nylon
• Cord Clamp Material: Black Nylon
• Terminal Clamp Material: .08" (2) steel-nickel plated
• Terminal Screw Material: #10-32 Brass (white finish on neutral screw when used) Multi-drive
• Ground Screw Material: #10-32 Brass (green finish) Multi-drive
• Cord Clamp Screw Material: Steel, zinc plated Multi-drive
• Body Holding Screw Material: Steel, zinc plated Multi-drive
• Body Contact Carrier Material: Natural White Nylon
• Contact Spring Material: Brass
• Spring Binding Plate Material :Brass
• Ground Contact Material: .031" (.8) Brass
• Ratings: Molded In or Stamped On
• Catalog No: Permanently ink marked on product
• Dielectric Voltage Withstand: 2,000V minimum
• Current Interrupting: Certified for current interrupting at full rated current
• Temperature Rise: Max 30C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75.
• Cord Accommodation: Round portable service cords of diameters commensurate with the device rating as defined in UL Standard 62, CSA C22.2 No. 49.
• Terminal Accommodation: 30A #10 AWG
• Terminal Identification: Terminals identified in accordance with UL 498 (X, Y, Z, White, Green)
• Flammability: HB or better per UL 94 or CSA 22.2 No. 0.6
• Operating Temperatures: Maximum Continuous 75 C Minimum -40 C (w/o impact)
• Moisture Resistance: IP20
