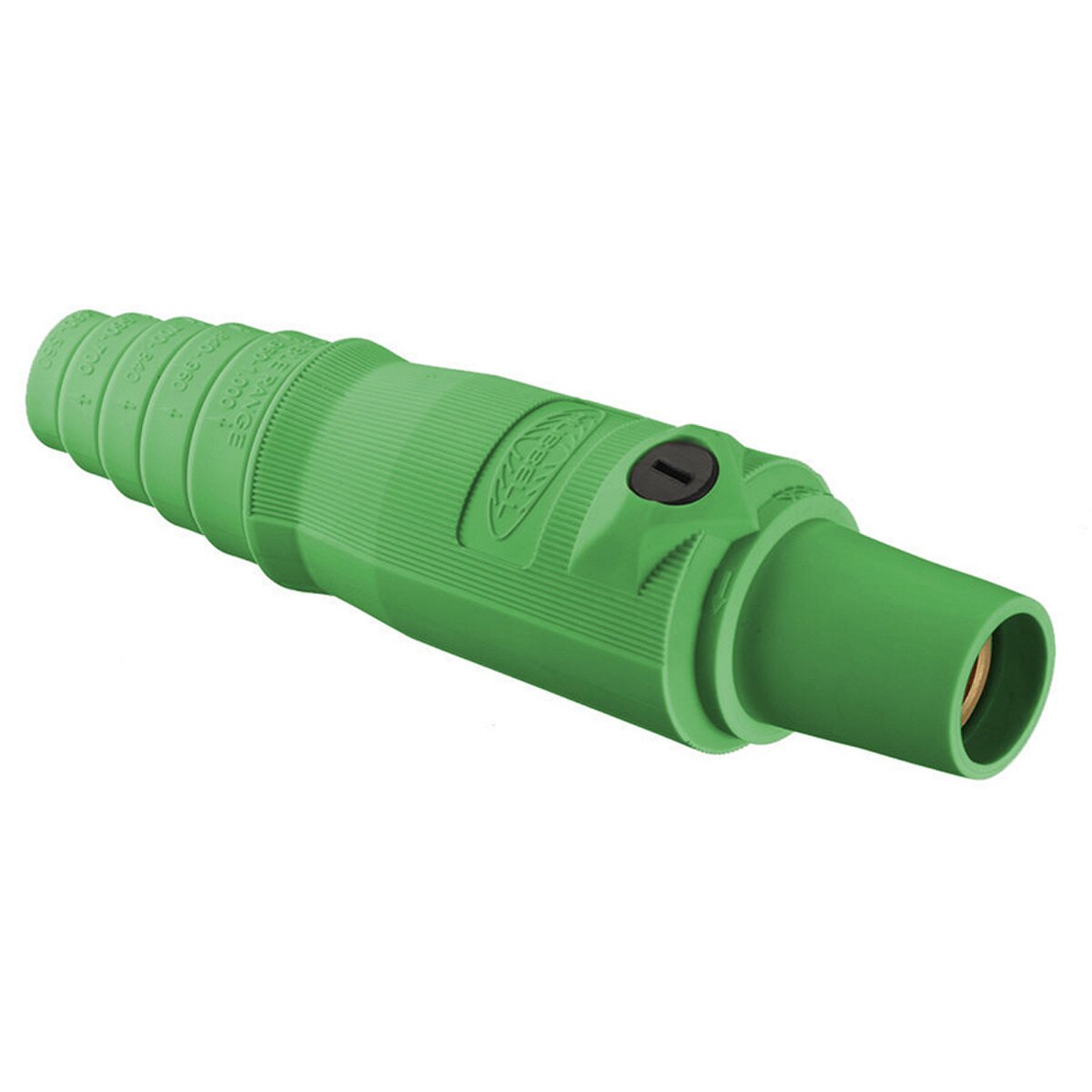

Hubbell HBL300FGN Cable Mount Female Plug - Green - 4-2/0

The name Hubbell Wiring Device-Kellems is synonymous with innovation and quality. In keeping with this reputation, Hubbell Wiring Device-Kellems offers aline of innovative, high quality, single pole plugs, receptacles and accessories. The Hubbell Single Pole Connector line is rated for 600 volts AC and 250 volts DC, up to 400 amps. Acceptable cable sizes #4 through 4/0. Single pole connectors are the right choice for supplying temporary electrical power distribution for entertainment, theme parks, carnival equipment, concerts, movie making, and numerous other applications requiring temporary power. Single pole devices have been designed with ease of assembly and disassembly in mind, no special tools are required. A high strength non-conductive retaining screw is all that is needed to securely lock the contacts to the insulated sleeve.

• High Conductivity Brass Contact - Provides improved performance by helping to reduce operating temperatures and extends life.
• Turn and Lock Symbol - Aids in the mating of devices and provides a clear indication that the devices are properly connected.
• Easily Identifiable Cable Cut Off Points For Secure Fit - Allows you to easily customized the housing to the required cable size. Makes cutting to the correct cable size very easy. Accommodates wide range of cables (0. 46" - 1. 02").
• Strip Gauge - Molded into every plug and receptacle housing. Simplifies installation and saves time.
• Extra Long Locking Ring - Non-conductive inner sleeve reduces force required to install housing over contacts. Easier to rotate contact in body for installing retaining screw.

Hubbell_Plug_Spec_Sheet_36694_File_1.pdf
