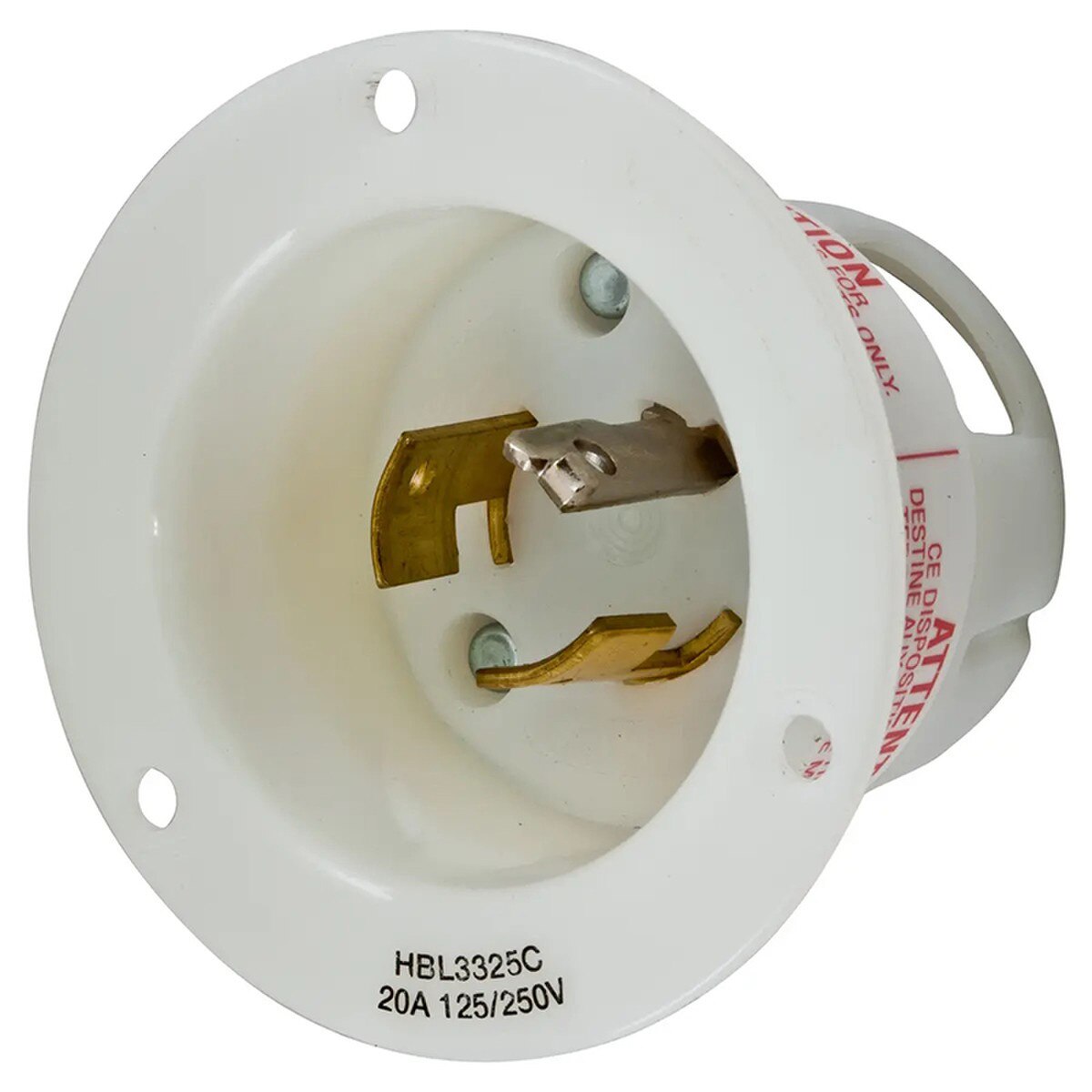

Hubbell HBL3325C Non-NEMA 20AMP - 125/250V - Flanged Inlet

Locking Devices, Twist-Lock®, Industrial, Insulgrip® Flanged Inlet, 20A 125/250V, 3-Pole 3-Wire Non-Grounding, Non-NEMA, Screw Terminal, Nylon casing, Back wired, White.

Features:

• Impact resistant thermoplastic construction
• Backwired terminations for ease of installation
• #10-32 Multiple drive terminal screws (Slotted, Phillips, Robertson)
• Mounting screws included

Specifications:

General:

• Application: Extra Heavy Duty Industrial
• Color: White
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• Insulation: Insulated Body
• Item Type: 20A Insulgrip® Flanged Inlet
• Material: Nylon
• Material - Mounting Hardware: Screw Mounting
• Number Of Poles: 3-Pole
• OEM Brand Name: Hubbell Wiring Device-Kellems
• Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact

Performance:

• Electrical - Current Interrupting - Certified for current interrupting at full rated current
• Electrical - Dielectric Voltage - Withstands 2,000V minimum
• Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17
• Environmental - Moisture Resistance - IP20 Suitability
• Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact)
• Mechanical - Terminal Accommodation - #16 AWG - #10 AWG solid or stranded copper wire only
• Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
• Temperature Rating: Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
• Type: Flanged Inlet
• UPC: 783585039794

Dimensions:

• Dimensions: 2.88 in x 2.88 in x 1.93 in
• Display Size: Standard Sized Product
• Height: 1.93 in
• Length: 2.88 in
• Weight: 0.4 lb
• Width: 2.88 in

Electrical Ratings:

• Amperage Rating: 20 A
• Connectivity: Back Wired Screw Terminals
• Current/Amperage Rating: 20 A
• Current Rating: 20 A
• Dielectric Strength: Withstands 2,000V minimum
• Phase: Single Phase
• Voltage Rating: 125/250 VAC
• Voltage Rating Description: 125/250 VAC

Conductor Related:

• Number Of Wires: 3-Wire
• Wire Size: #16 AWG to #10 AWG

Certifications and Compliance:

• Industry Standard(s): Certified to CSA C22.2 No.42, Fed.Spec. W-C-596, Listed to UL 498
• Nema Rating: Non-NEMA

Logistics:

• Carton Quantity: 10
