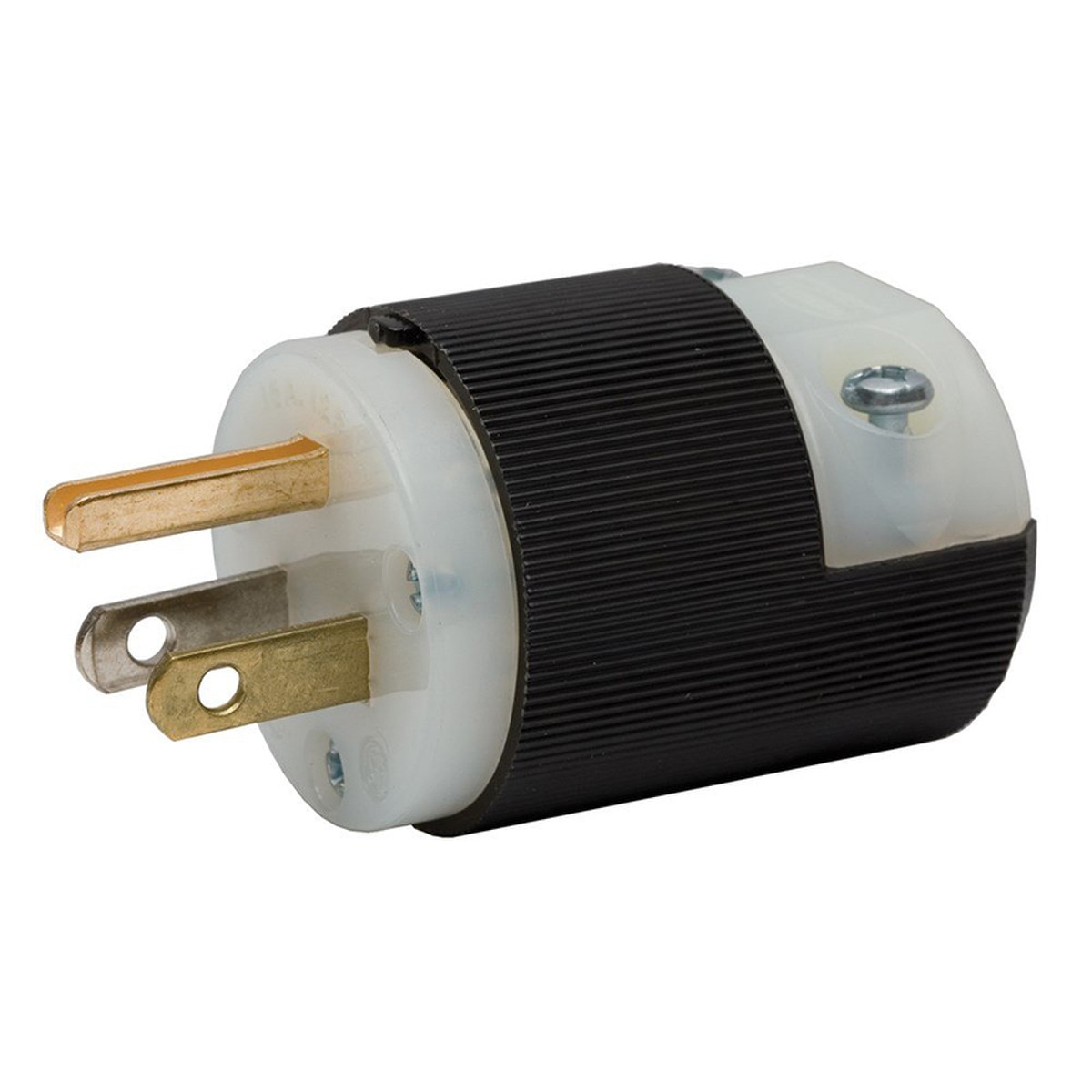

Hubbell HBL5266C Insulgrip 5-15P Edison - 15A 125V Male Plug - Black and White

Features:

• Body Style: Straight
• Standard: NEMA
• Amperage: 15A
• Voltage: 125V
• Poles and Wires: 2 Pole, 3-Wire Grounding
• Hospital Grade: No
• Plug/Connector Grade: Insulgrip
• Color: Black and White
• NEMA No.: 5-15P
• Horsepower: 0.5
• Cord Diameter: .230"-.720" (5.8-18.3)
• Type: 2 Pole, 3 Wire, Grounding
• Rating: 15A,125V
• Certification: UL Listed to UL498 File E1706, CSA Certified to C22.2 No. 42 File 280
• IP Suitability: IP20
• Housing Material: Nylon-Black
• Blade Holder Material: Nylon-Natural
• Retainer Material: Poly carbonate-Clear
• Cord Clamp Material: Nylon-Natural
• Contact Blades Material: .060" (1.5) Brass
• Ground Contact Blade Material: .040" (1.0) Copper Alloy
• Terminal Screw Material: #8-32 Brass /Ni plated for neutral
• Ground Screw Material: #8-32 Brass, Multiple Drive (Green)
• Dielectric Voltage: Withstands 2,000V minimum
• Current Interrupting: Certified for current interrupting at full rated current
• Temperature Rise: Max 30 degrees C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%
• Terminal Identification: Terminals identified in accordance with UL498 (Brass, White, Green)
• Terminal Accommodation: #18-#10 AWG copper stranded conductor
• Product Identification: Ratings are a permanent part of the device
• Flammability: UL 94 HB or better
• Operating Temperatures: Maximum continuous 75 degrees C, minimum -40 degrees C (w/o impact)
• Weight: 0.350 lbs
