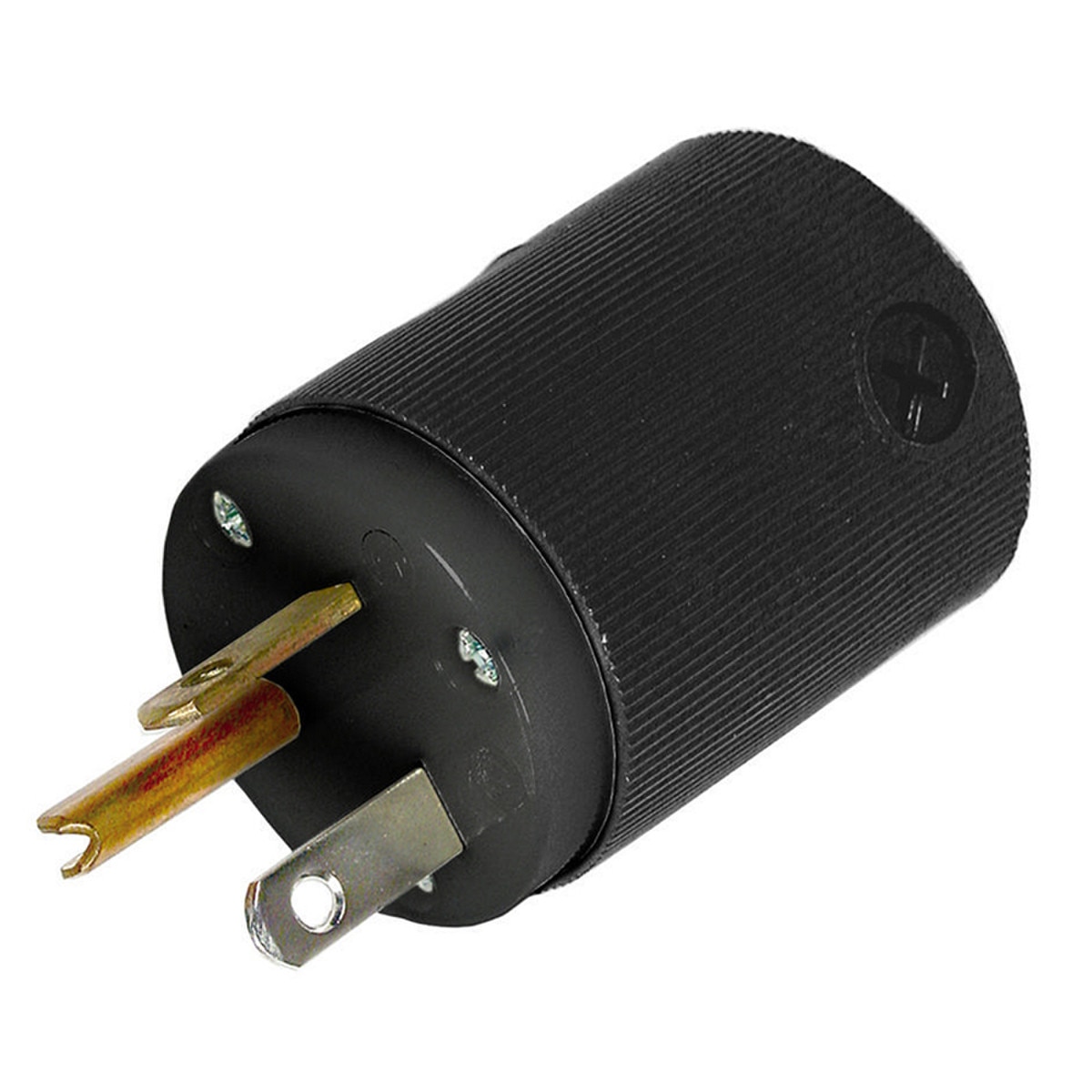

Hubbell HBL5366EBK Insulgrip Plug 20A-125V

This Hubbell Insulgrip Plug is a black 20A-125V male edison large cord clamp that works best with 12/3SOOW cable.

Features:

• Black nylon with extra large cord clamp
• Cord Diameter - .360"-.720"(9.1-18. 3)
• UPC - 783585541389
• Catalog Number - HBL5366EBK
• Ribbed nylon housing is impact and chemical resistant
• VARI-SIZE adjustable cord clamp
• Fast lead assembly screws
• Beveled housing prevents snagging

Electrical:

• Current Interrupting - Certified for current interrupting at full rated current
• Dielectric Voltage - Withstands 2,000V minimum

Mechanical:

• Cord Accommodation - .360"-.720"(9.1-18.3)
• Terminal Accommodation - #18-10 AWG. Stranded copper wire only
• Terminal Identification - Terminals identified in accordance with UL 498 and CSA

Environmental:

• Flammability - UL 94 HB or better
• IP Suitability - IP20
• Operating Temperatures - Maximum continuous 75°C; minimum -40°C (w/o impact)

Accessories:

• Weatherproof Boot - HBL6017

Resources

• eCatalog

Specifications:

• Housing/Cord Clamp - Nylon
• Blade Holder - Nylon
• Terminal Retainer - Clear Polycarbonate
• Blades - .060 in. (1.5) Brass
• Terminal Screws - #8-32 Brass, multiple drive
• Terminal Clamp - Nickel plated steel
• Assembly Screws - Nickel plated steel

Listings:

• UL Listed to UL498 File E1706
• CSA Certified to C22.2 No. 42 File 280
• Fed. Spec. W-C596G
• NEMA® WD-6 Compliant
