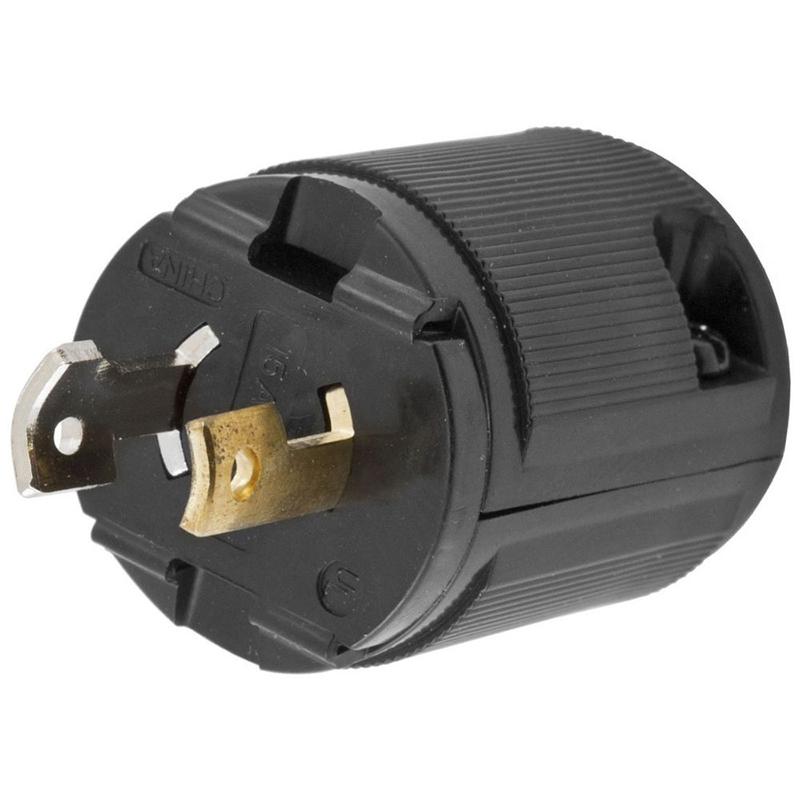

Hubbell HBL7465V Midget ML-1P Twistlock Plug

These hinged midget plugs open partially to connect and terminate cables. Also known as midget valise plugs, they have screw terminations that tighten down on conductors to secure them. Hinged plugs require fewer termination screws than standard plugs, allowing them to be quickly wired and assembled. Midget plugs are smaller than standard plugs and can fit into tight spaces and equipment they cannot. They are only compatible with midget locking-blade receptacles and connectors.

Specifications:

• Brand: HUBBELL
• Manufacturer Part Number: HBL7465V
• NEMA Plug Configuration: ML1-15P
• Current Rating:15 A
• Voltage Rating: 125V AC
• Wire Connection Type: Screw Terminals
• Wiring Style: Hinged
• Connection Orientation: Straight
• Number of Poles: 2
• Number of Blades: 2
• Housing Color: Black
• Shrouded: No
• IP Rating: IP21
• Resistance Properties: Chemical Resistant; Impact Resistant
• Standards: Federal Specification W-C-596
• Blade Material: Brass
• Body Length: 1.25 in
• For Environment: Dry
• For Location: Indoor
• For Maximum Cable Diameter: 0.385 in
• For Minimum Cable Diameter: 0.22 in
• Grounding: Non-Grounded
• Housing Material: Nylon
• Market: Commercial; Industrial
• Maximum Operating Temperature: 75 °C
• Maximum Wire Size: 14 AWG
• Midget Locking: Yes
• Minimum Operating Temperature: -40 °C
• Minimum Wire Size: 18 AWG
• Outside Diameter: 1.06 in
• Overall Length: 1.25 in
• Phase: Single
• Polarized: Yes
• UL 94 Flammability Rating: HB
• UNSPSC: 39121403
• Country of Origin: China (subject to change)
