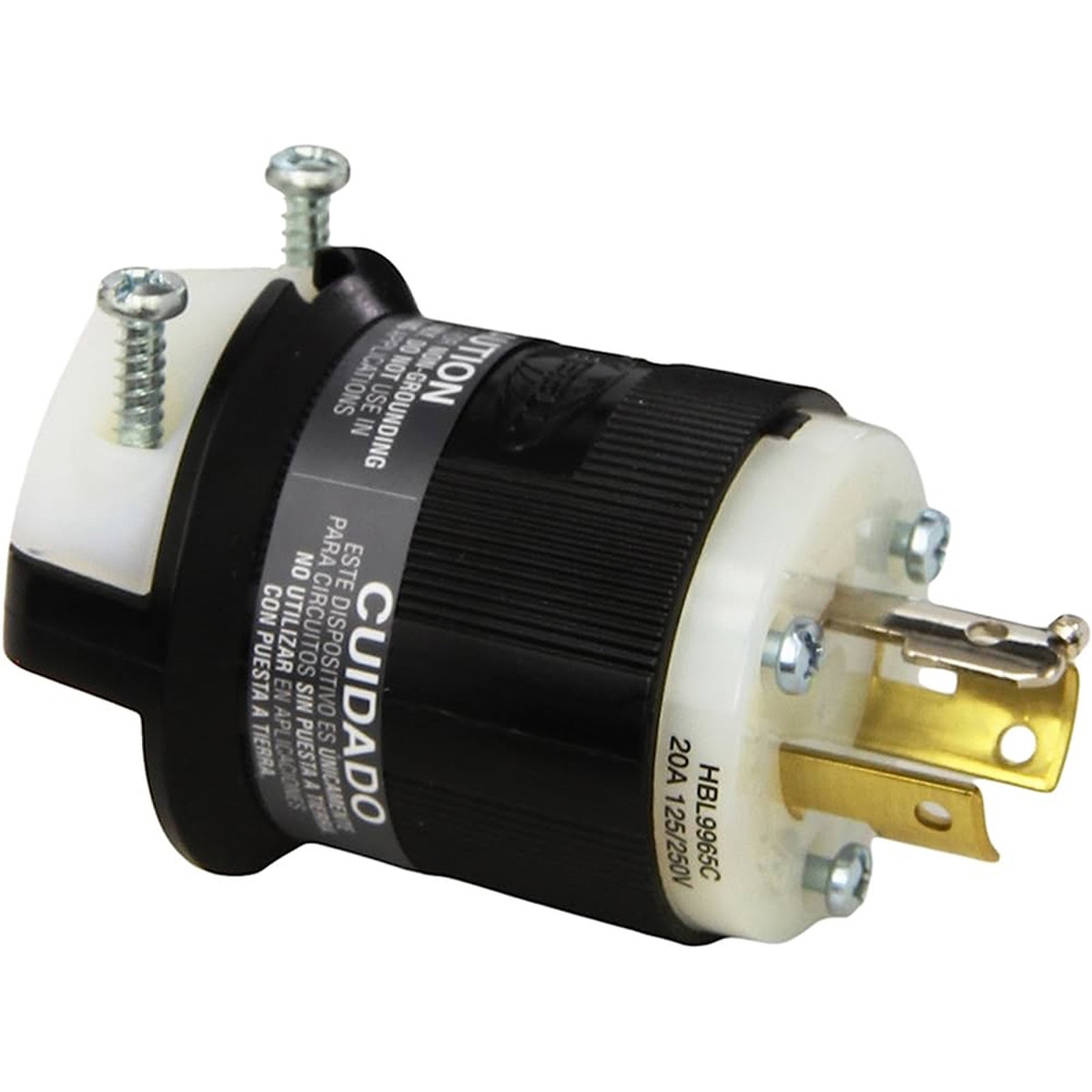

Hubbell HBL9965C Insulgrip Non-NEMA Twist-Lock - Nub Out Male Plug - BLK and WH
Details
Product Specifications:
- Product Item: Plug
- Wiring Scheme: 3-Pole, 3-Wire Non-Grounding
- Amperage: 20A
- Voltage: 125/250V AC
- NEMA Configuration: Non-NEMA
- Item Style: Insulgrip
- Device Color: Black/White
- Cord Dia.: .360"-.930" (9-24)
- Blade Holder Material: Natural White Nylon
- Terminal Retainer Material: Clear polycarbonate
- Housing Material: Black nylon
- Cord Clamp Material: Natural (white) nylon
- Blade Material: Brass
- Terminal Clamp Material: .08" (2) brass-nickel plated
- Terminal Screw Material: #10-32 Brass (white finish on neutral screw when used) Multi-drive
- Ground Screw Material: #10-32 Brass (green finish) Multi-drive
- Cord Clamp Screw Material: Steel, zinc plated Multi-drive
- Body Holding Screw Material: Steel, zinc plated Multi-drive
- Ratings: Molded In or Stamped On
- Catalog No: Permanently ink marked on product
- Dielectric Voltage Withstand: 2,000V minimum
- Current Interrupting: Certified for current interrupting at full rated current
- Temperature Rise: Max 30C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75.
- Cord Accommodation: Round portable service cords of diameters commensurate with the device rating as defined in UL Standard 62, CSA C22.2 No. 49.
- Terminal Accommodation: 20A #12 AWG
- Terminal Identification: Terminals identified in accordance with UL 498 (X, Y, Z, White, Green)
- Flammability: HB or better per UL 94 or CSA 22.2 No. 0.6
- Operating Temperatures: Maximum Continuous 75 C Minimum -40 C (w/o impact)
- Moisture Resistance: IP20
- Listings: UL
- UPC Number: 783585037608
- Weight in LBs: 0.25
