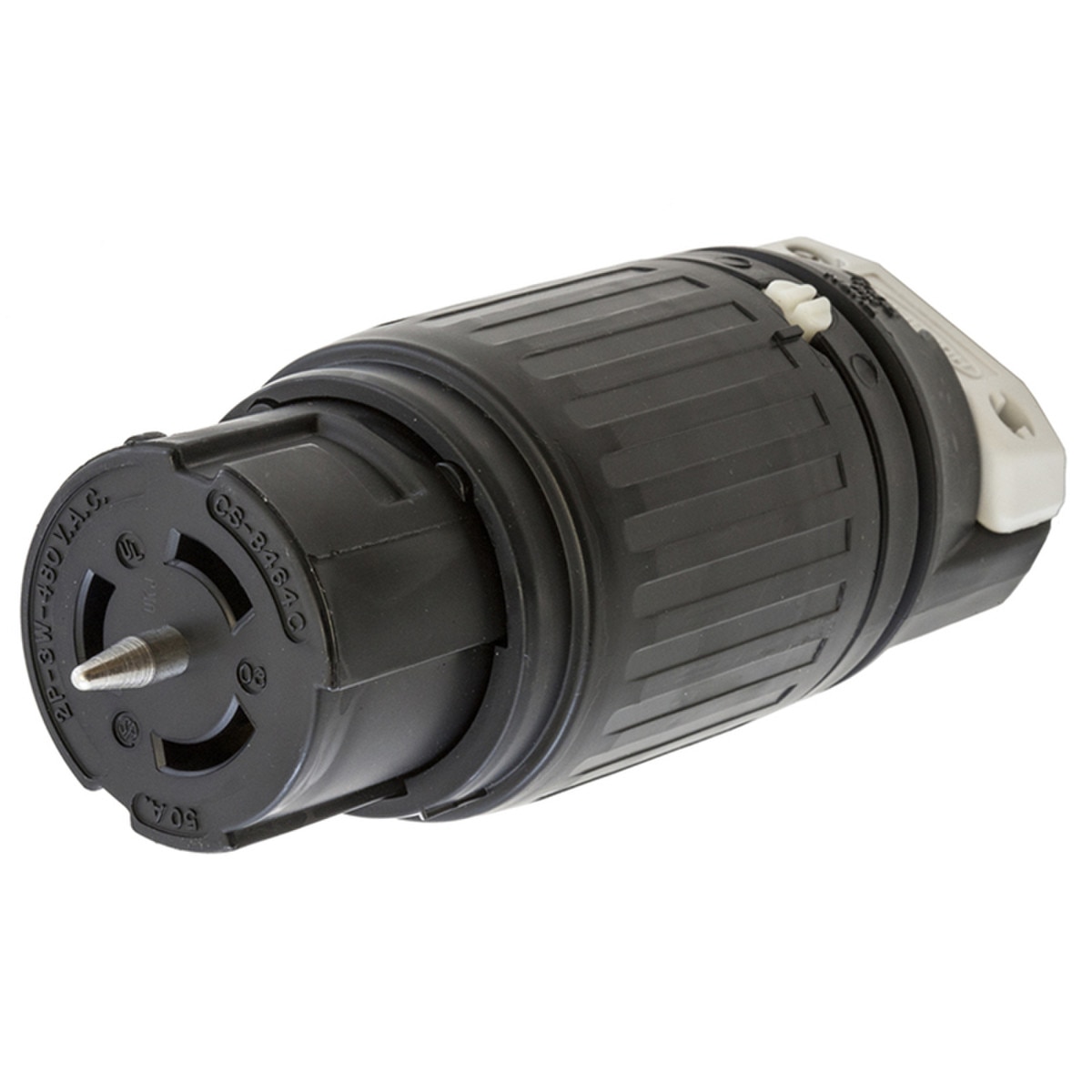

Hubbell HBLCS8264C 50A 250V Female Connector
Details
Locking Devices, Twist-Lock®, Industrial, Female Connector Body, 50A 250V, 2-Pole 3-Wire Grounding, Non-NEMA, Screw Terminal, Black and White
Hubbell’s 50 Amp Twist-Lock® Devices feature a heavy-duty design and super-tough nylon housing built for heavy-duty applications and impact resistance, even in the harshest environments. Their rigid construction restricts contact distortion, minimizing the possibility of mating dissimilar devices. The cord grip’s offset gripping jaws securely hold the conductors and the cord jacket for excellent strain relief.
WIRING_CS8264C_spec.pdf
Hubbell’s 50 Amp Twist-Lock® Devices feature a heavy-duty design and super-tough nylon housing built for heavy-duty applications and impact resistance, even in the harshest environments. Their rigid construction restricts contact distortion, minimizing the possibility of mating dissimilar devices. The cord grip’s offset gripping jaws securely hold the conductors and the cord jacket for excellent strain relief.
Features:
- Box terminal with hex socket threaded slug, permits high clamping pressure on conductors without damaging strands
- Heavy duty two-piece external cord clamp provides maximum strain relief
- Thermoplastic polyester interior provides heat resistance and impact strength
- Oversized contacts minimize operating temperature
- Standard Product
General:
- Application: Heavy Duty Industrial
- Color: Black, White
- Cord Range: .830"-1.250"(21.08-31.75)
- Environmental Conditions: Indoor Dry Unless Protected By Additional Means
- Insulation: Insulated Body
- Item Type: Insulgrip Connector
- Material: Nylon
- Material - Mounting Hardware: Cord Mounted
- Number Of Poles: 2-Pole
- OEM Brand Name: Hubbell Wiring Device-Kellems
- Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
Performance:
- Electrical - Current Interrupting - Certified for current interrupting at full rated current
- Electrical - Dielectric Voltage - Withstands 2,000V minimum
- Environmental - Flammability - HB or better
- Environmental - Operating Temperatures - Maximum continuous 75°C minimum –40°C (w/o impact)
- Mechanical - Terminal Accommodation - #10 AWG - #6 AWG stranded copper wire only
- Type: Connector Body
- UPC: 783585828466
Dimensions:
- 6.50 in x 2.56 in x 2.50 in
- Display Size: Standard
- Height: 2.50 in
- Length: 6.50 in
- Weight: 0.95 lb
- Width: 2.56 in
Electrical Ratings:
- Amperage Rating: 50 A
- Connectivity: Pressure Terminal Screws
- Current / Amperage Rating: 50 A
- Current Rating: 50 A
- Dielectric Strength: Withstands 2,000V minimum
- Voltage Rating: 250 V
- Voltage Rating Description: 250 V
Conductor Related:
- Cable Range: 0.830 - 1.250 in
- Number Of Wires: 3-Wire
- Wire Size: #10 AWG to #6 AWG
Industry Standard(s):
- Certified to CSA C22.2 No.42
- Listed to UL 498
Logistics:
- Carton Quantity: 10
