  • Hubbell Heavy Duty IEC Pin and Sleeve Female Connector Body, 100A 3-Phase Wye 120/208V AC, Watertight

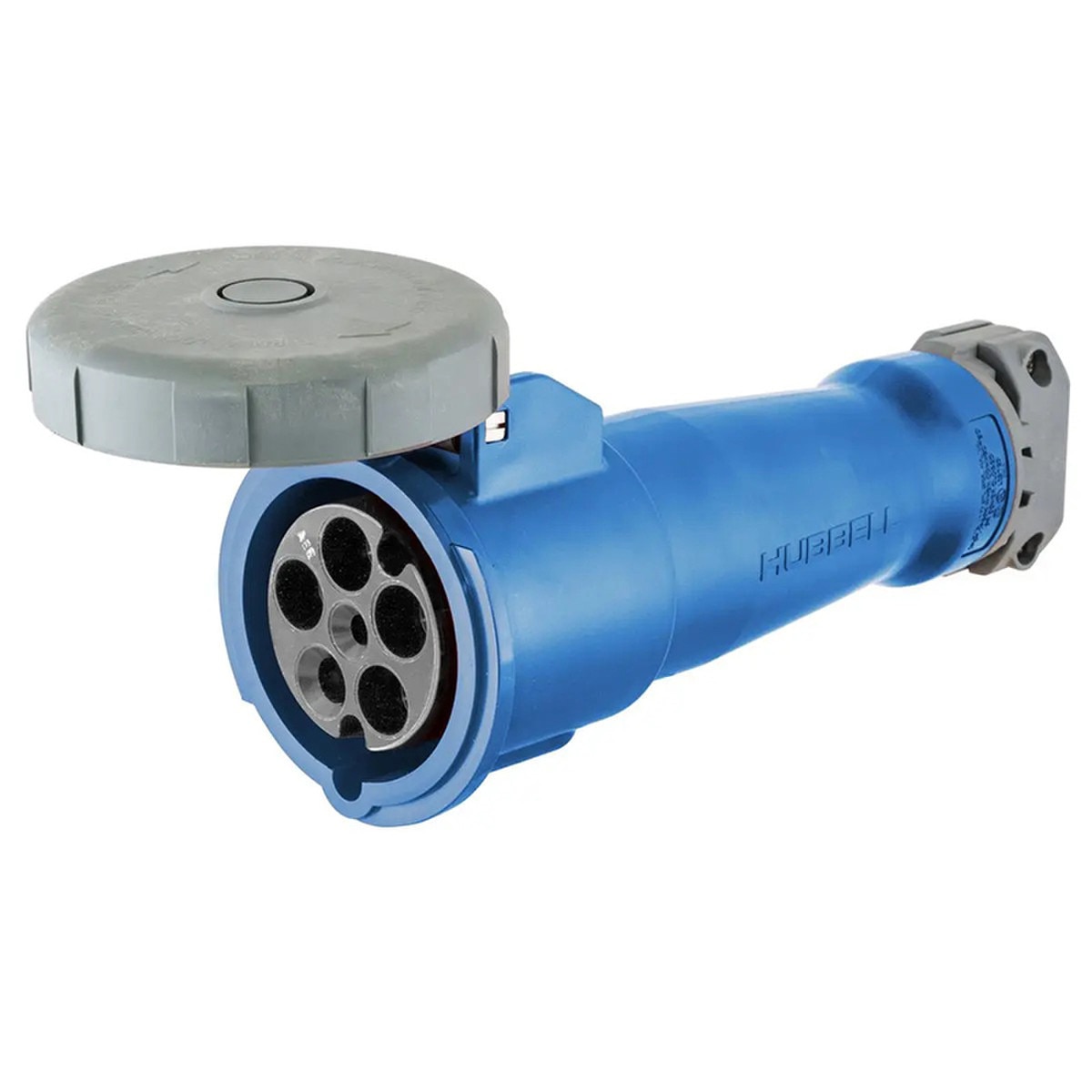

Hubbell Heavy Duty IEC Pin and Sleeve Female Connector Body, 100A 3-Phase Wye 120/208V AC, Watertight

(0)No Reviews yet
$979.91
SKU: Hubbell HBL5100C9W

Details

Heavy Duty Products, IEC Pin and Sleeve Devices, Industrial Grade, Female, Connector Body, 100A 3-Phase Wye 120/208V AC, 4-Pole 5-Wire Grounding, Terminal Screws, Blue, Watertight


Watertight Devices - Hubbell’s IEC 60309 Pin and Sleeve plugs, connectors, inlets and receptacles are the highest performing products available. The HBL® series of IEC pin and sleeve were designed for the demanding North American market. Hubbell was the first and is still only manufacturer of IEC 60309 devices in the USA and have numerous innovative features noted below. The IEC line of plugs and connectors are made with a rugged super tough, one-piece housing. The thermoset polyester contact carrier provides a high resistance to electrical tracking. They withstand higher temperatures which may result from overload or arcing. The heavy-duty, external cord grip provides superior strain relief on the conductors. Hubbell’s horsepower rated plugs and receptacles meet NEC 430.109(F) requirements and recognized as an approved disconnecting “line of sight” disconnecting means.


  • Self-closing gasketed cover
  • Color coded housings for easy identification
  • Super tough insulated non-metallic housing
  • Watertight

General:

  • Application: High Ampacity Connections
  • Color: Blue
  • Environmental Conditions: Watertight
  • Insulation: Insulated Body
  • Item Type: Standard
  • Material - Mounting Hardware: Cord Mounted
  • Number Of Poles: 4-Pole
  • OEM Brand Name: Hubbell Wiring Device-Kellems
  • Series: HBL Heavy Duty
  • Style: Standard Service
  • Temperature Rating: Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
  • Type: Watertight Connector Body
  • UPC: 783585405063

Performance:

  • Electrical - Current Interrupting - Certified for current interrupting at full rated current
  • Electrical - Dielectric Voltage - Withstand 3000V AC
  • Electrical - Max. Working Voltage - 600V RMS
  • Environmental - Flammability - HB or better per UL 94 or CSA C22.2 No. 0.17
  • Environmental - Ingress Protection - IP67 Suitability
  • Environmental - Moisture Resistance - Watertight per IEC 60309-1
  • Environmental - Operating Temperatures - Maximum Continuous 75°C, Minimum - 40°C w/o impact
  • Mechanical - Impact Resistance - Per CSA C22.2 No. 182.1 / UL1682
  • Mechanical - Product Identification - Ratings are a permanent part of the device housing
  • Mechanical - Terminal Identification - Terminals identified in accordance with North American and IEC conventions

Dimensions:

  • Display Size: Standard

Electrical Ratings:

  • Amperage Rating: 100 A
  • Connectivity: Pressure Terminal Screws
  • Current / Amperage Rating: 100 A
  • Current Rating: 100 A
  • Voltage Rating: 3 Phase Y 120/208 VAC
  • Voltage Rating Description: 3 Phase Y 120/208 VAC

Conductor Related:

  • Conductor Range: #3 AWG to #1/0 AWG
  • Number Of Conductors: 5-Wire Grounding
  • Number Of Wires: 5-Wire

Certifications and Compliance:

  • CSA Certified File LR280C
  • UL Classified to IEC 60309-1 IEC 60309-2
  • UL Listed, File E146033
  • Nema Rating: Non-NEMA

Logistics:

  • Carton Quantity: 6

Hubbell HBL5100C9W Instruction Manual.pdf
Hubbell HBL5100C9W Specifications.pdf
Hubbell HBL5100C9W Dimensional Drawing.pdf
Hubbell HBL5100C9W Warranty.pdf
