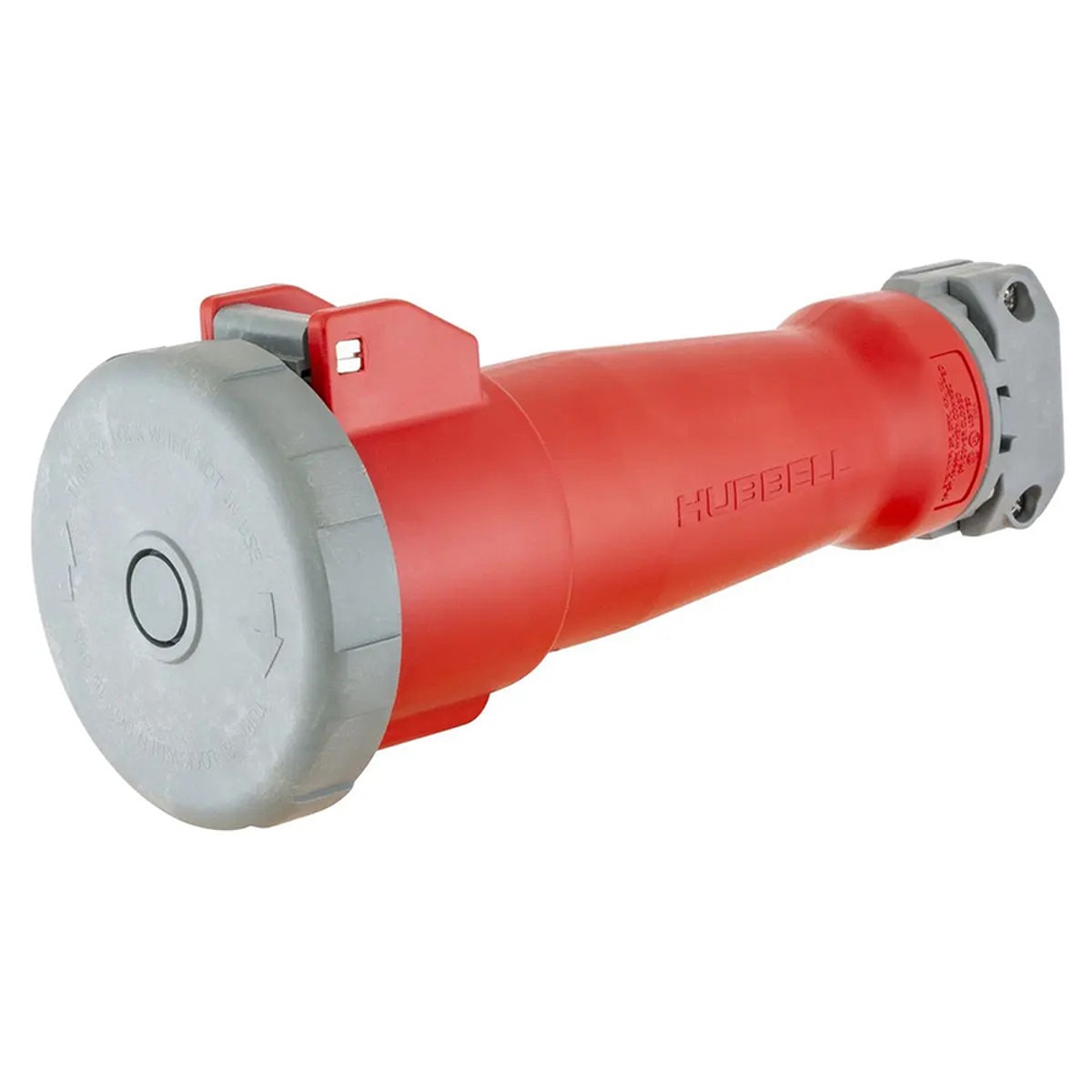

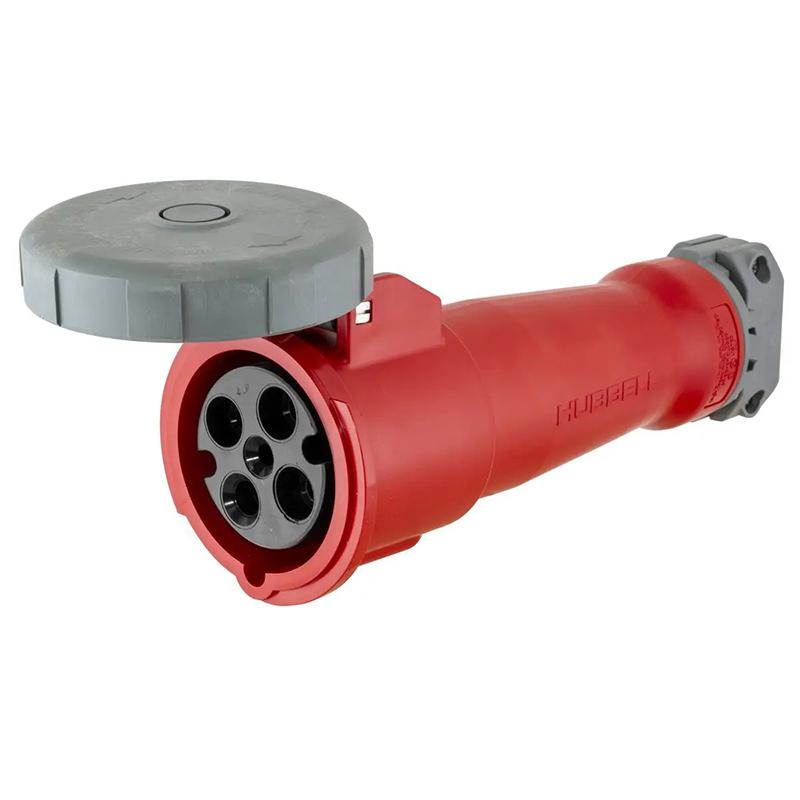

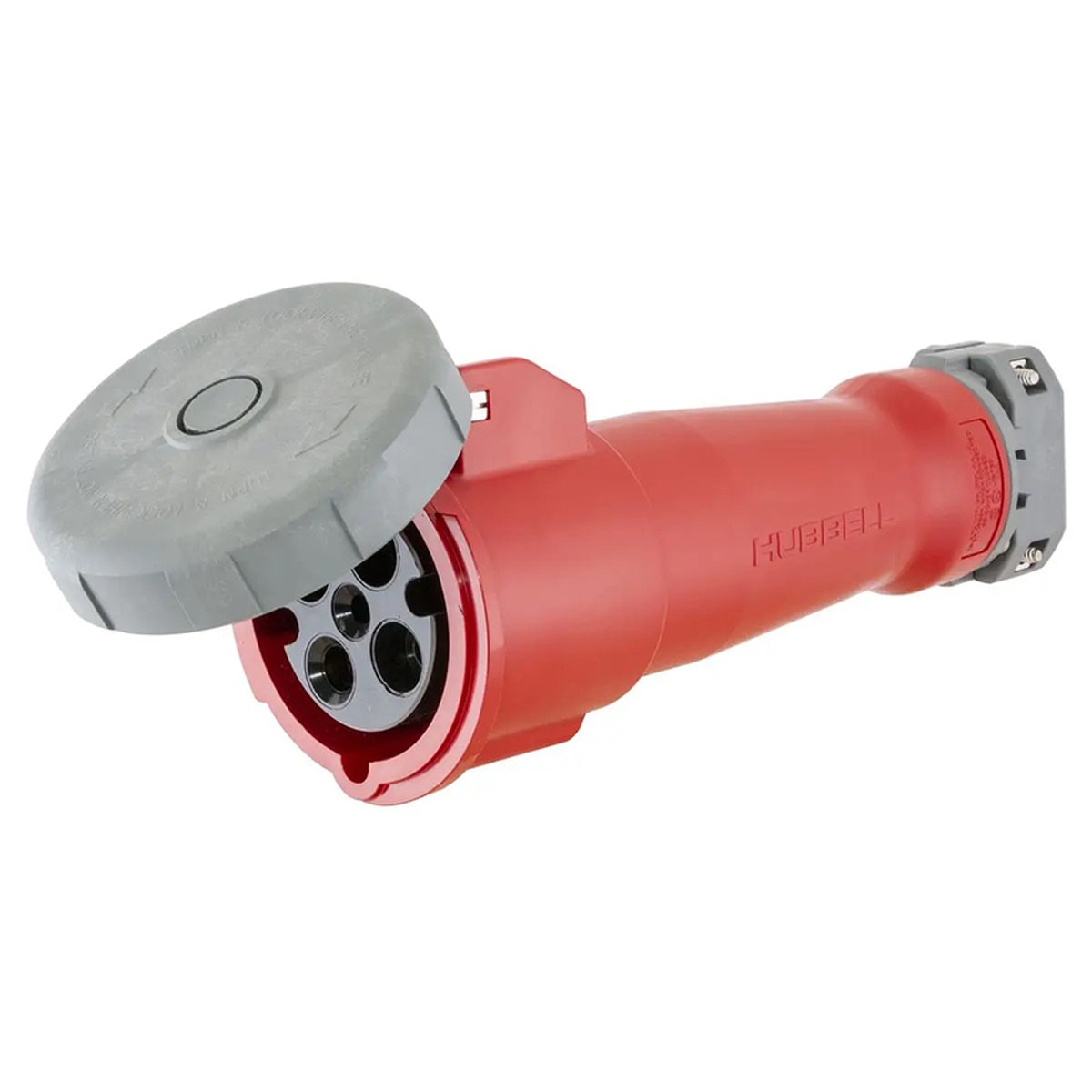

Hubbell Heavy Duty IEC Pin and Sleeve, Industrial Grade Female Connector Body, 100A 3-Phase Delta 480V AC, Watertight

Heavy Duty Products, IEC Pin and Sleeve Devices, Industrial Grade, Female, Connector Body, 100A 3-Phase Delta 480V AC, 3-Pole 4-Wire Grounding, Terminal Screws, Red, Watertight

Watertight Devices - Hubbell’s IEC 60309 Pin and Sleeve plugs, connectors, inlets and receptacles are the highest performing products available. The HBL® series of IEC pin and sleeve were designed for the demanding North American market. Hubbell was the first and is still only manufacturer of IEC 60309 devices in the USA and have numerous innovative features noted below. The IEC line of plugs and connectors are made with a rugged super tough, one-piece housing. The thermoset polyester contact carrier provides a high resistance to electrical tracking. They withstand higher temperatures which may result from overload or arcing. The heavy-duty, external cord grip provides superior strain relief on the conductors. Hubbell’s horsepower rated plugs and receptacles meet NEC 430.109(F) requirements and recognized as an approved disconnecting “line of sight” disconnecting means.

• Self-closing gasket cover
• Color coded housings for easy identification
• Super tough insulated non-metallic housing
• Watertight

General:

• Application: High Ampacity Connections
• Catalog Number: HBL4100C7W
• Color: Red
• EU RoHS Indicator: Yes
• Material - Mounting Hardware: Cord Mounted
• Number Of Poles: 3-Pole
• OEM Brand Name: Hubbell Wiring Device-Kellems
• Style: Standard Service
• Temperature Rating: Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
• Type: Watertight Connector Body
• UPC: 783585403991

Specifications:

• Cord Clamps - Reinforced Thermoplastic Polyester
• Covers - Reinforced Thermoplastic Polyester
• Gaskets - Solid Neoprene
• Glands - Solid Neoprene
• Housing - Zytel® ST801 Nylon

Electrical Ratings:

• Amperage Rating: 100 A
• Connectivity: Pressure Terminal Screws
• Voltage Rating: 3 Phase 480 VAC

Conductor Related:

• Conductor Range: #3 AWG to #1/0 AWG
• Number of Conductors: 4-Wire Grounding
• Number Of Wires: 4-Wire

Certifications And Compliance:

• Buy America(n) Qualified: Buy American Act Compliant (All status valid till December 2024)
• EU RoHS Indicator: Yes
• Nema Rating: Non-NEMA

Industry Standard(s):

• CSA Certified File LR280C
• UL Classified to IEC 60309-1 IEC 60309-2
• UL Listed, File E146033

Operational:

• Temperature Rating: Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.

Configuration:

• Number Of Poles: 3-Pole

Logistics:

• Carton Quantity: 6
• Pallet Quantity: 126
