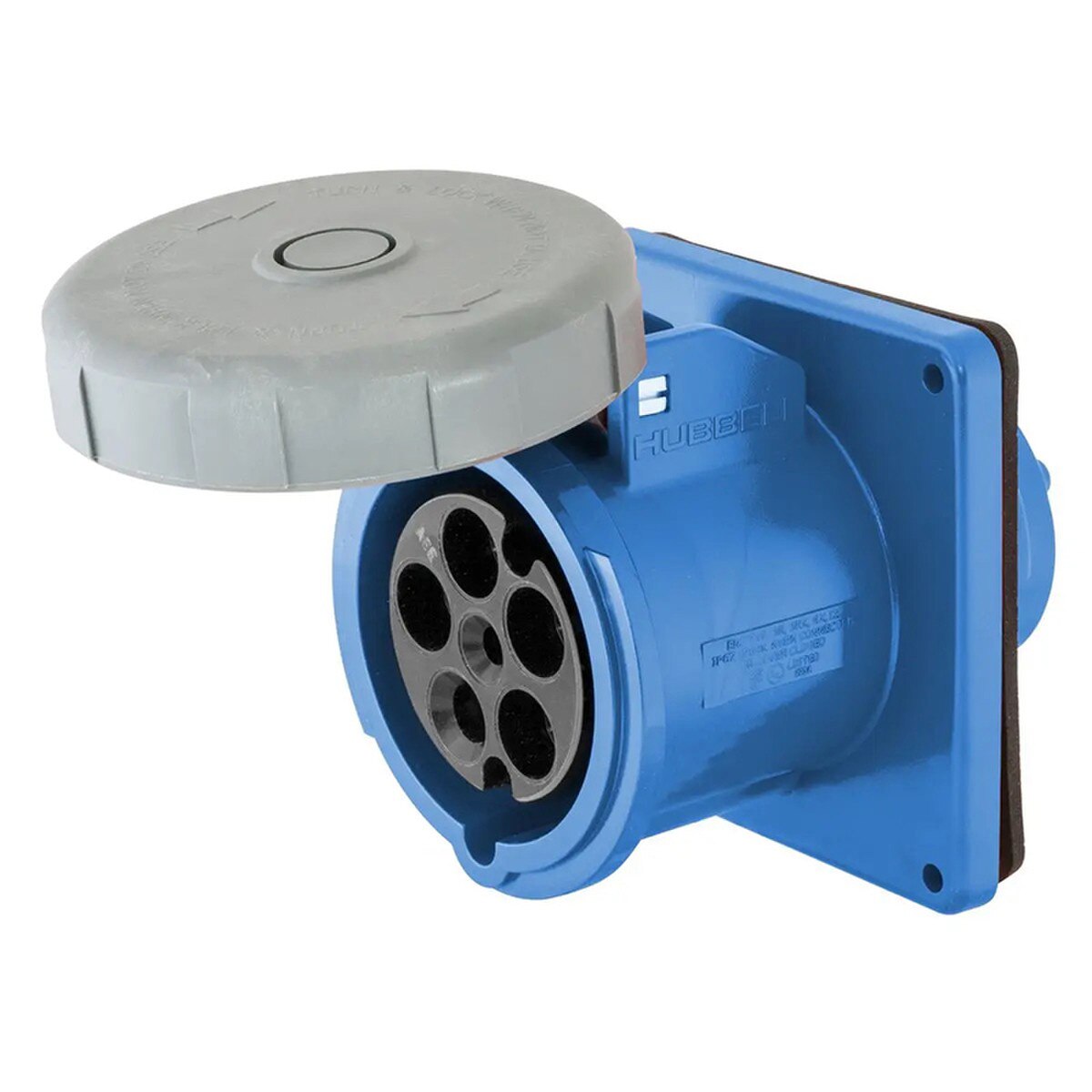

Hubbell Heavy Duty IEC Pin and Sleeve Industrial Grade Female Receptacle, 100A 3-Phase Wye 120/208V AC, Watertight

Heavy Duty Products, IEC Pin and Sleeve Devices, Industrial Grade, Female, Receptacle, 100A 3-Phase Wye 120/208V AC, 4-Pole 5-Wire Grounding, Terminal Screws, Blue, Watertight

Watertight Devices - Hubbell’s IEC 60309 Pin and Sleeve plugs, connectors, inlets and receptacles are the highest performing products available. The HBL® series of IEC pin and sleeve were designed for the demanding North American market. Hubbell was the first and is still only manufacturer of IEC 60309 devices in the USA and have numerous innovative features noted below. The IEC line of plugs and connectors are made with a rugged super tough, one-piece housing. The thermoset polyester contact carrier provides a high resistance to electrical tracking. They withstand higher temperatures which may result from overload or arcing. The heavy-duty, external cord grip provides superior strain relief on the conductors. Hubbell’s horsepower rated plugs and receptacles meet NEC 430.109(F) requirements and recognized as an approved disconnecting “line of sight” disconnecting means.

• Self-closing gasket cover
• Color coded housings for easy identification
• Super tough insulated non-metallic housing
• Watertight

General:

• Application: High Ampacity Watertight Connections
• Catalog Number: HBL5100R9W
• Color: Blue
• EU RoHS Indicator: Yes
• Material: Thermoplastic
• Material - Mounting Hardware: Screw Mounting
• Number Of Poles: 4-Pole
• OEM Brand Name: Hubbell Wiring Device-Kellems
• Style: Standard Service
• Type: Watertight Receptacle
• UPC: 783585405124

Specifications:

• Cover - Reinforced Thermoplastic Polyester
• Cover Screw - Nickel-plated brass
• Gaskets - Solid Neoprene
• Housing - Zytel® 101 Nylon
• Mounting Flange - Zytel® 101 Nylon

Electrical Ratings:

• Amperage Rating: 100 A
• Connectivity: Pressure Terminal Screws
• Phase: Three Phase
• Voltage Rating: 3 Phase Y 120/208 VAC
• Wattage: 20800

Conductor Related:

• Number Of Wires: 5-Wire
• Wire Size: #3 AWG to #1/0 AWG

Certifications And Compliance:

• EU RoHS Indicator: Yes
• Nema Rating: Non-NEMA

Industry Standard(s):

• Listed To Standard UL1682

Configuration:

• Number Of Poles: 4-Pole

Logistics:

• Carton Quantity: 6
• Pallet Quantity: 252
