  • Hubbell Heavy Duty IEC Pin and Sleeve Male Plug, 100A 3-Phase Wye 277/480V AC, 4- Pole 5-Wire Grounding, Watertight

Hubbell Heavy Duty IEC Pin and Sleeve Male Plug, 100A 3-Phase Wye 277/480V AC, 4- Pole 5-Wire Grounding, Watertight

(0)No Reviews yet
$531.66
SKU: Hubbell HBL5100P7W

Details

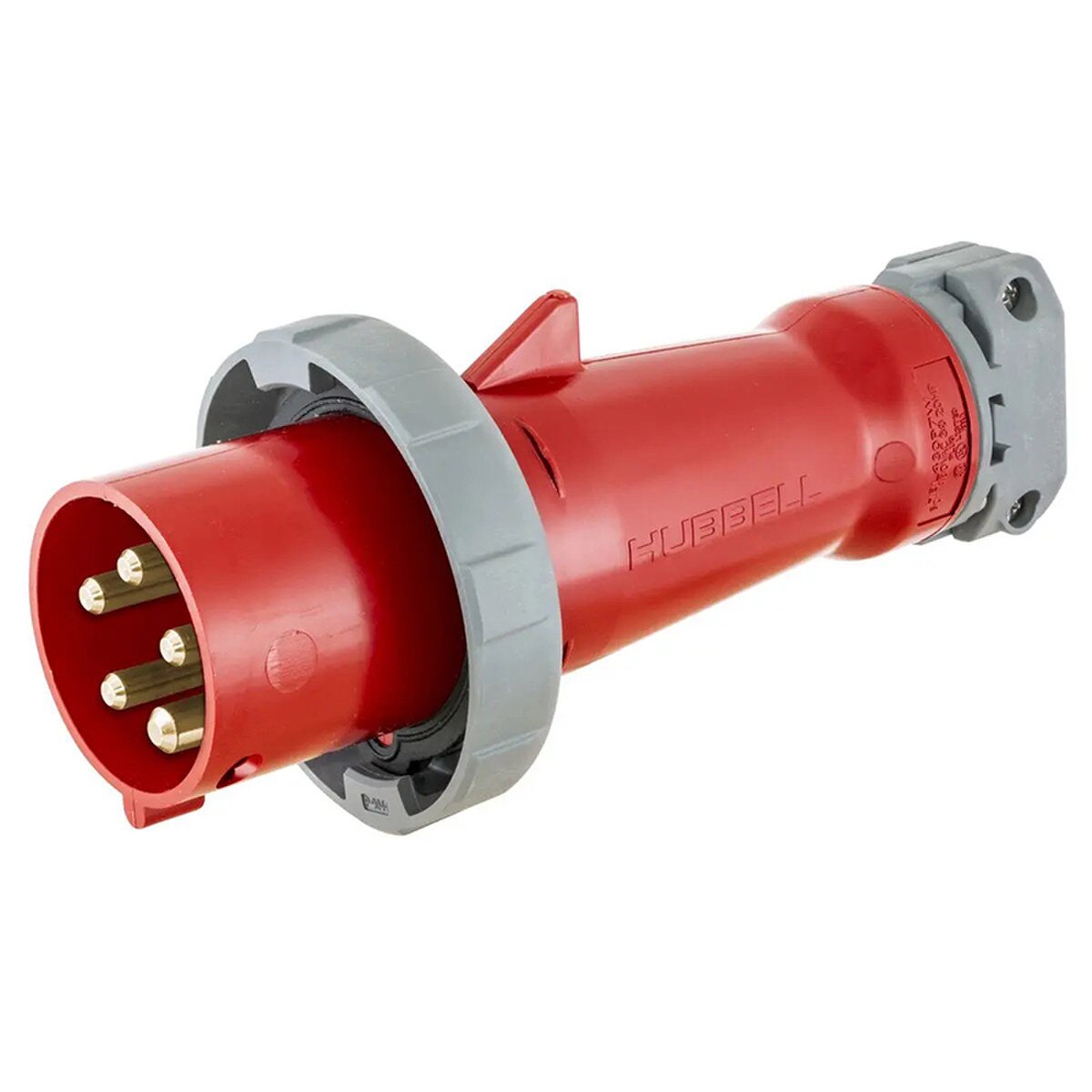

Heavy Duty IEC Pin and Sleeve Industrial Grade Male Plug 100A 3-Phase Wye 277/480V AC, 4-Pole 5-Wire Grounding, Terminal Screws, Watertight


Watertight Devices - Hubbell’s IEC 60309 Pin and Sleeve plugs, connectors, inlets and receptacles are the highest performing products available. The HBL® series of IEC pin and sleeve were designed for the demanding North American market. Hubbell was the first and is still only manufacturer of IEC 60309 devices in the USA and have numerous innovative features noted below. The IEC line of plugs and connectors are made with a rugged super tough, one-piece housing. The thermoset polyester contact carrier provides a high resistance to electrical tracking. They withstand higher temperatures which may result from overload or arcing. The heavy-duty, external cord grip provides superior strain relief on the conductors. Hubbell’s horsepower rated plugs and receptacles meet NEC 430.109(F) requirements and recognized as an approved disconnecting “line of sight” disconnecting means.


  • Solid one-piece pins for reliable electrical contact
  • Gasketed sealing ring provides watertight seal
  • Heavy duty external cord grips for maximum cord retention
  • Watertight

General:

  • Application: High Ampacity Connections
  • Color: Red
  • Environmental Conditions: Watertight
  • Item Type: Male Plug
  • Material: Composite
  • Material - Mounting Hardware: Cord Mounted
  • Number Of Poles: 4-Pole
  • OEM Brand Name: Hubbell Wiring Device-Kellems
  • Series: HBL Heavy Duty
  • Style: Standard Service
  • Type: Watertight Plug
  • UPC: 783585405087

Performance:

  • Electrical - Current Interrupting - Certified for current interrupting at full rated current
  • Electrical - Dielectric Voltage - Withstand 3000V AC
  • Electrical - Max. Working Voltage - 600V RMS
  • Environmental - Flammability - HB or better per UL 94 or CSA C22.2 No. 0.17
  • Environmental - Ingress Protection - IP67 Suitability
  • Environmental - Moisture Resistance - Watertight per IEC 60309-1
  • Environmental - Operating Temperatures - Maximum Continuous 75°C, Minimum - 40°C w/o impact
  • Mechanical - Impact Resistance - Per CSA C22.2 No. 182.1 / UL1682
  • Mechanical - Product Identification - Ratings are a permanent part of the device housing
  • Mechanical - Terminal Identification - Terminals identified in accordance with North American and IEC conventions

Dimensions:

  • Display Size: Standard Sized

Electrical Ratings:

  • Amperage Rating: 100 A
  • Connectivity: Pressure Terminal Screws
  • Current / Amperage Rating: 100 A
  • Current Rating: 100 A
  • Phase: Three Phase
  • Voltage Rating: 3 Phase Y 277/480 VAC
  • Voltage Rating Description: 3 Phase Y 277/480 VAC

Conductor Related:

  • Cord Type: All Portable
  • Number Of Wires: 5-Wire
  • Wire Size: #3 AWG to #1/0 AWG

Certifications and Compliance:

  • CSA Certified File LR280C
  • UL Classified to IEC Standards 60309-1
  • UL Listed, File E146033
  • Nema Rating: Non-NEMA

Logistics:

  • Carton Quantity: 6
  • Pallet Quantity: 126

Hubbell HBL5100P7W Instruction Manual.pdf
Hubbell HBL5100P7W Specifications.pdf
Hubbell HBL5100P7W Dimensional Drawing.pdf
Hubbell HBL5100P7W Warranty.pdf
