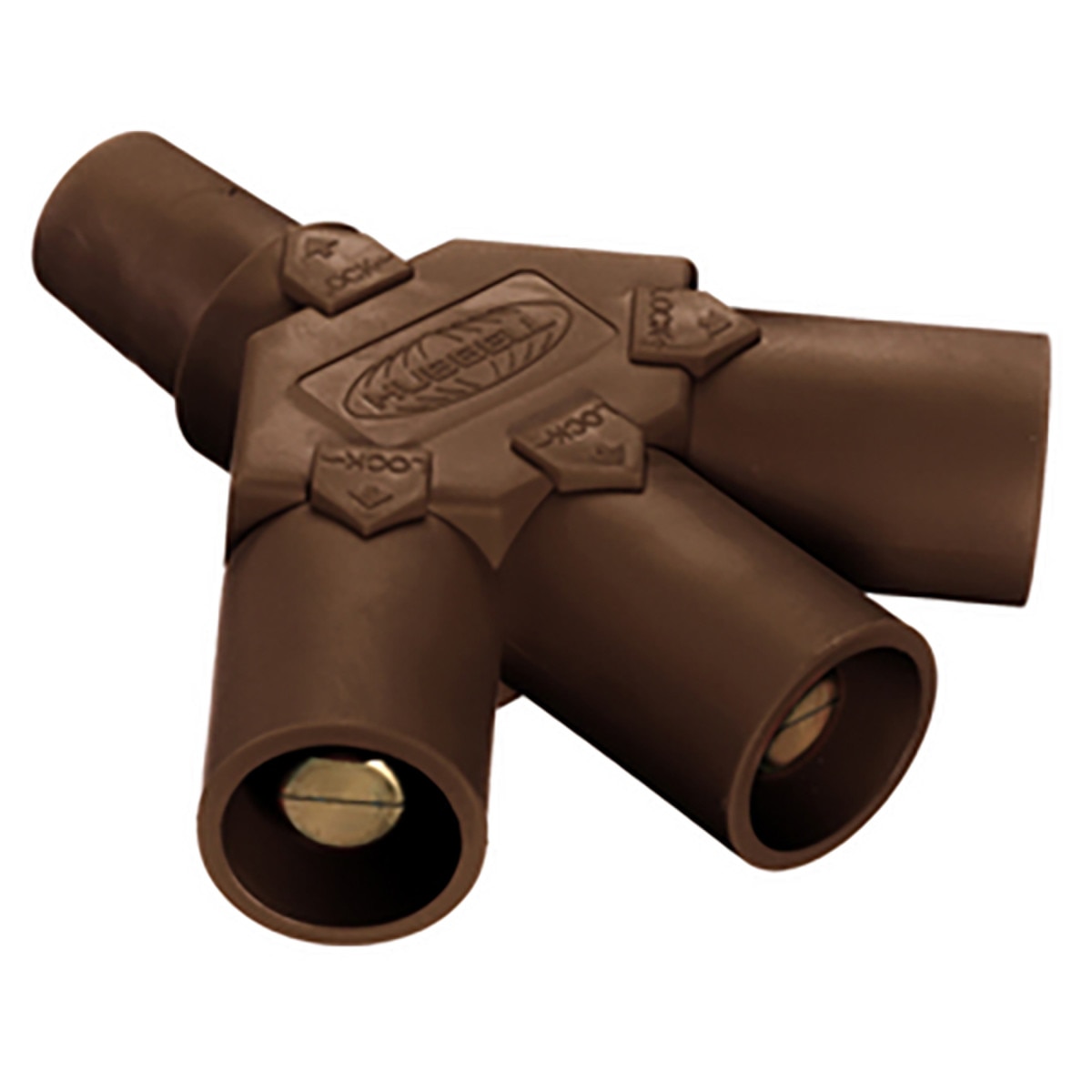

Hubbell Heavy Duty Single Pole Female-Male-Male-Male Tri-Tap, 400A 600V AC/DC, Pre-Wired - Brown

Heavy Duty Products, Single Pole Devices, Industrial Grade, Female-Male-Male-Male, Tri-Tap, 400A 600V AC/DC, Single Conductor, Pre-Wired, Brown

• Standard Product

General:

• Application: High Ampacity
• Color: Brown
• EU RoHS Indicator: Contact Manufacturer
• Insulation: Insulated Body
• Item Type: Tri-Taps
• Material: Brass and Elastomer
• Number Of Pins: 1) In, 3) Out- Male-Female-Female-Female
• OEM Brand Name: Hubbell Wiring Device-Kellems
• Operating Temperature: Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
• Series: Series 16
• Style: 3-Fer Female-Male-Male-Male
• Type: Tees and 3-Fers
• UPC: 783585112428

Performance:

• Electrical - Amperage Rating - 400A Maximum
• Electrical - Voltage Ratings - 600V AC Maximum, 250V DC Maximum
• Mechanical - Product Identification - Ratings are a permanent part of the device

Electrical Ratings:

• Amperage Rating: 400 A
• Current / Amperage Rating: 400 A
• Current Rating: 400 A
• Voltage Rating Description: 600V AC/DC
• Wattage: 360000

Industry Standard(s):

• UL 498 And UL1691

Hubbell HBLF3MBN Installation Manual.pdf
Hubbell HBLF3MBN Specifications.pdf
Hubbell HBLF3MBN Dimensional Drawing.pdf
Hubbell HBLF3MBN Warranty.pdf
