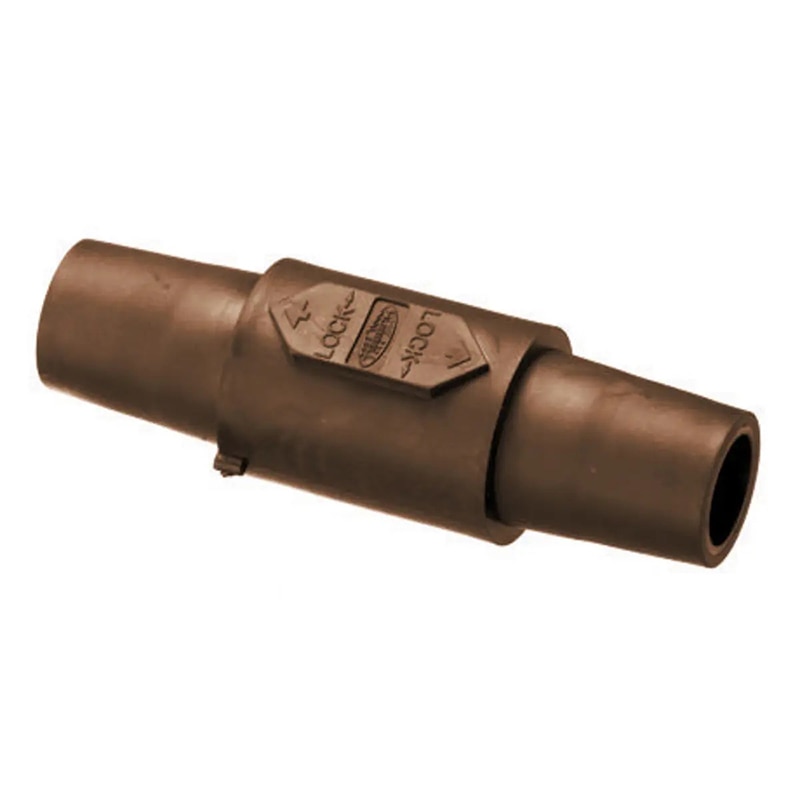

Hubbell Heavy Duty Single Pole Industrial Grade Single Conductor Pre-Wired Double Female Coupler, 400A 600V AC/DC - Brown

Heavy Duty Products, Single Pole Devices, Industrial Grade, Double Female, Coupler, 400A 600V AC/DC, Single Conductor, Pre-Wired, Brown

Standard Product

General:

• Application: High Ampacity
• Color: Brown
• Insulation: Insulated Body
• Item Type: Gender Reverser
• Material: Brass and Elastomer
• Number Of Pins: 1) In, 1) Out
• OEM Brand Name: Hubbell Wiring Device-Kellems
• Operating Temperature: Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
• Series: Series 16
• Style: Double Female
• Type: Gender Reversing Devices
• UPC: 783585003399

Performance:

• Electrical - Amperage Rating - 400A Maximum
• Electrical - Voltage Ratings - 600V AC Maximum
• 250V DC Maximum
• Mechanical - Product Identification - Ratings are a permanent part of the device

Electrical Ratings:

• Amperage Rating: 400 A
• Current / Amperage Rating: 400 A
• Current Rating: 400 A
• Voltage Rating Description: 600V AC/DC
• Wattage: 360000

Certifications and Compliance:

• Industry Standard(s): UL 498 And UL1691

Logistics:

• Carton Quantity: 10

Hubbell HBLDFBN Instruction Manual.pdf
Hubbell HBLDFBN Specifications.pdf
Hubbell HBLDFBN Dimensional Drawing.pdf
