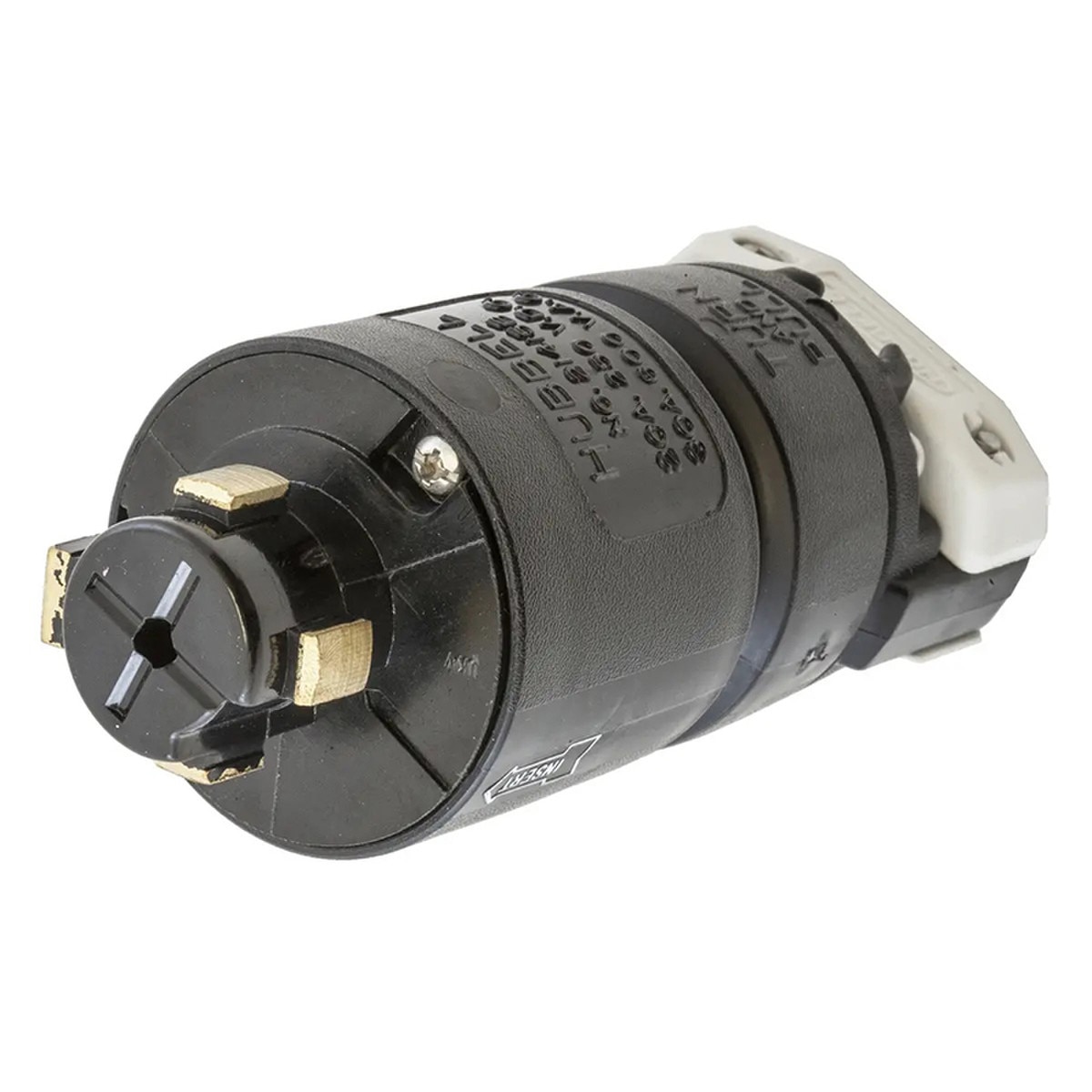

Hubbell Hubbellock 30A 600V AC, 20A 250V DC Male Plug 3-Pole 4-Wire Grounding, Non-NEMA, Screw Terminal - Black and White

Locking Devices, Hubbellock®, Industrial, Male Plug, 30A 600V AC, 20A 250V DC, 3-Pole 4-Wire Grounding Hubbellock® Plug, Black nylon housing, thermoplastic interior, Non-NEMA, Screw Terminal, Black and White.

The Hubbellock devices feature an exclusive design unlike any other in the industry. The unique design is built to provide the safest heavy duty device even in some of the harshest environments. These Hubbellock plugs and connector bodies are built with a super tough nylon housing for high impact resistance and a one of kind interior design for superior safety that Hubbell is known for. The male contacts are molded into the nose for damage resistance and completely eliminate the chance of deformity. Additionally, the plug as well as the connector retains power mechanical cord grips that not only secure the cable but also clamp down on the conductors in order to provide unrivaled strain relief. Inside the connector is Hubbell's unique safety design. With unparalleled box terminations the connector interior holds a spring-loaded safety shutter to provide the ultimate arc protection. Furthermore the exceptional heat and impact resistance is maintained by the thermoplastic interior contributing toa longer lasting device. In all, the one of a kind function of the Hubbellock devices provide a safe and dependable performance in the most demanding applications.

• Molded-in male contacts are resistant to damage and provide a consistently positive connection
• Insulated non-metallic housing enhances safety and abuse resistance
• Box terminals in conjunction with screws with pressure pads provide maximum termination strength and dependability
• Three-piece clamp assembly provides maximum strain relief and protects against entry of moisture and dust

General:

• Color: Black, White
• Cord Range: 0.700"-1.200" (17.78-30.5)
• Item Type: 20A/30A Hubbellock® Plug
• Material: Nylon
• Number Of Poles: 3-Pole
• Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
• Type: Plugs
• UPC: 783585017273

Dimensions:

• Dimensions: 2.33 in x 0.94 in x 5.63 in
• Height: 5.63 in
• Length: 2.33 in
• Weight: 0.8 lb
• Width: 0.94 in

Performance:

• Electrical - Current Interrupting - Certified for current interrupting at full rated current
• Electrical - Dielectric Voltage Withstand - 2,000V minimum
• Environmental - Flammability - UL 94 VO for Receptacles and Inlets. HB or better for Plugs and Connectors
• Environmental - Moisture Resistance - IP30 Suitability
• Environmental - Operating Temperatures - Maximum Continuous 75°C,Minimum -40°C (w/o impact)
• Mechanical - Terminal Accommodation - #10 AWG - #6 AWG stranded copper wire only.
• Mechanical - Terminal Identification - Terminals identified in accordance with UL 498

Electrical Ratings:

• Amperage Rating: 20/30 A
• Current / Amperage Rating: 20/30 A
• Dielectric Strength: Withstands 2,000V minimum
• Voltage Rating: 250 VDC/600 VAC
• Voltage Rating Description: 250 VDC/600 VAC

Conductor Related:

• Cable Range: 0.700 - 1.200 in
• Number Of Wires: 4-Wire
• Wire Size: #10 AWG to #6 AWG

Certifications and Compliance:

• Certified to CSA Standard
• Listed to UL Standard

Logistics:

• Carton Quantity: 10
