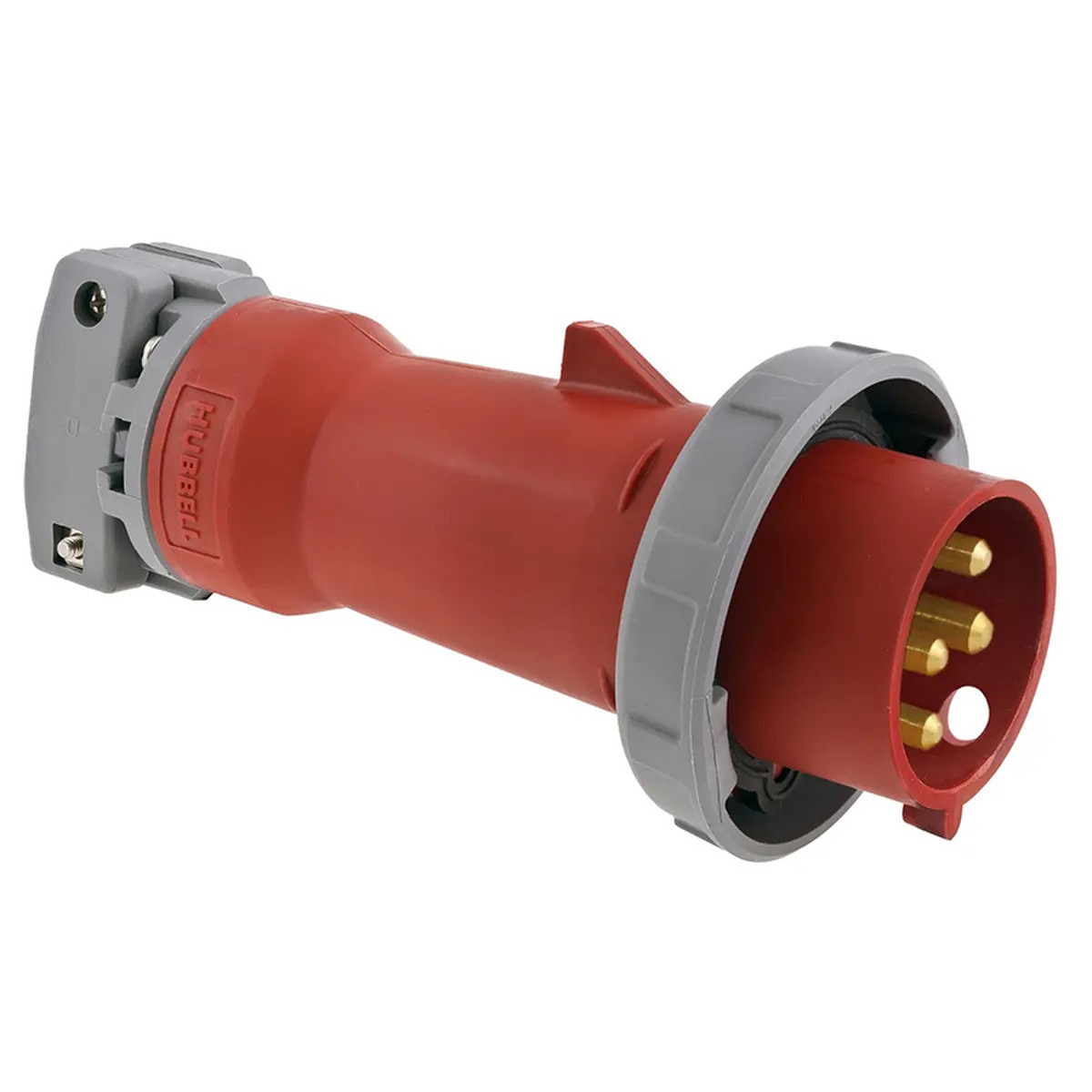

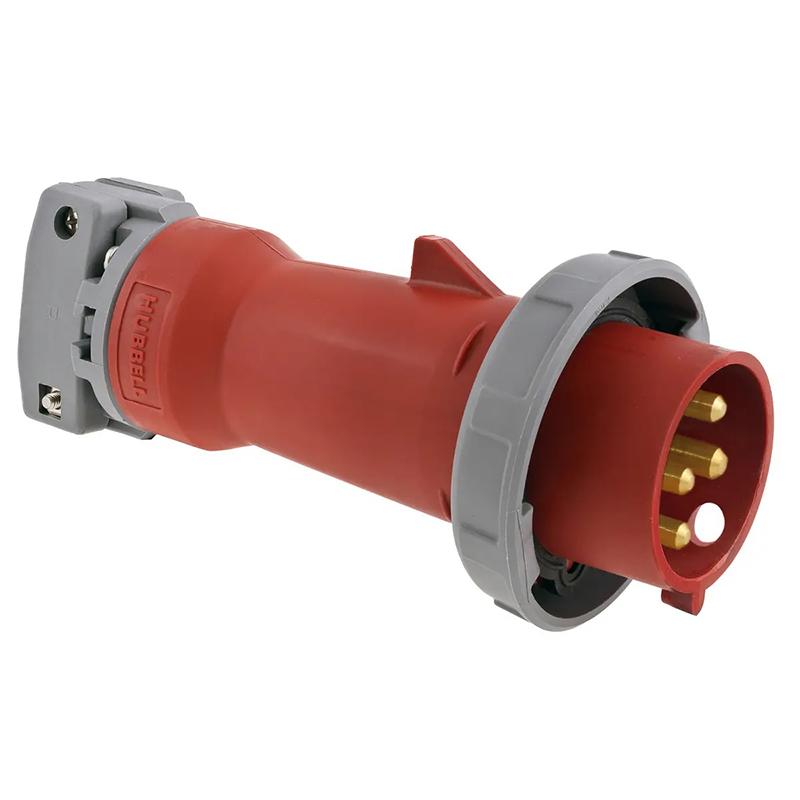

Hubbell IEC Pin and Sleeve Industrial Grade Watertight Male Plug, 100A 3-Phase Delta 480V AC, 3- Pole 4-Wire Grounding

Heavy Duty Products, IEC Pin and Sleeve Devices, Industrial Grade, Male, Plug, 100A 3-Phase Delta 480V AC, 3- Pole 4-Wire Grounding, Terminal Screws, Red, Watertight

Watertight Devices - Hubbell’s IEC 60309 Pin and Sleeve plugs, connectors, inlets and receptacles are the highest performing products available. The HBL® series of IEC pin and sleeve were designed for the demanding North American market. Hubbell was the first and is still only manufacturer of IEC 60309 devices in the USA and have numerous innovative features noted below. The IEC line of plugs and connectors are made with a rugged super tough, one-piece housing. The thermoset polyester contact carrier provides a high resistance to electrical tracking. They withstand higher temperatures which may result from overload or arcing. The heavy-duty, external cord grip provides superior strain relief on the conductors. Hubbell’s horsepower rated plugs and receptacles meet NEC 430.109(F) requirements and recognized as an approved disconnecting “line of sight” disconnecting means.

• Solid one-piece pins for reliable electrical contact
• Gasket sealing ring provides watertight seal
• Heavy duty external cord grips
• Watertight

General:

• Application: High Ampacity Connections
• Catalog Number: HBL4100P7W
• Color: Red
• EU RoHS Indicator: Yes
• Material: Composite
• Material - Mounting Hardware: Cord Mounted
• Number Of Poles: 3-Pole
• OEM Brand Name: Hubbell Wiring Device-Kellems
• Style: Standard Service
• Type: Watertight Plug
• UPC: 783585404042

Specifications:

• Contact Carrier - High-Impact Thermoset
• Housing - Zytel® ST801 Nylon
• Locking Ring - Reinforced Thermoplastic Polyester
• Retainer - High-Impact Thermoset
• Terminal Screws - Stainless Steel

Electrical Ratings:

• Amperage Rating: 100 A
• Connectivity: Pressure Terminal Screws
• Phase: Three Phase
• Voltage Rating: 3 Phase 480 VAC

Conductor Related:

• Number Of Wires: 4-Wire
• Wire Size: #3 AWG to #1/0 AWG

Certifications And Compliance:

• Buy America(n) Qualified: TAA Compliant (All status valid till December 2024)
• EU RoHS Indicator: Yes
• Nema Rating: Non-NEMA

Industry Standard(s):

• CSA Standard C22.2 No. 182.1
• UL Classified to IEC60309-1
• UL Listed, File E146032

Configuration:

• Cord Type: All Portable
• Number Of Poles: 3-Pole

Logistics:

• Carton Quantity: 6
• Pallet Quantity: 126
