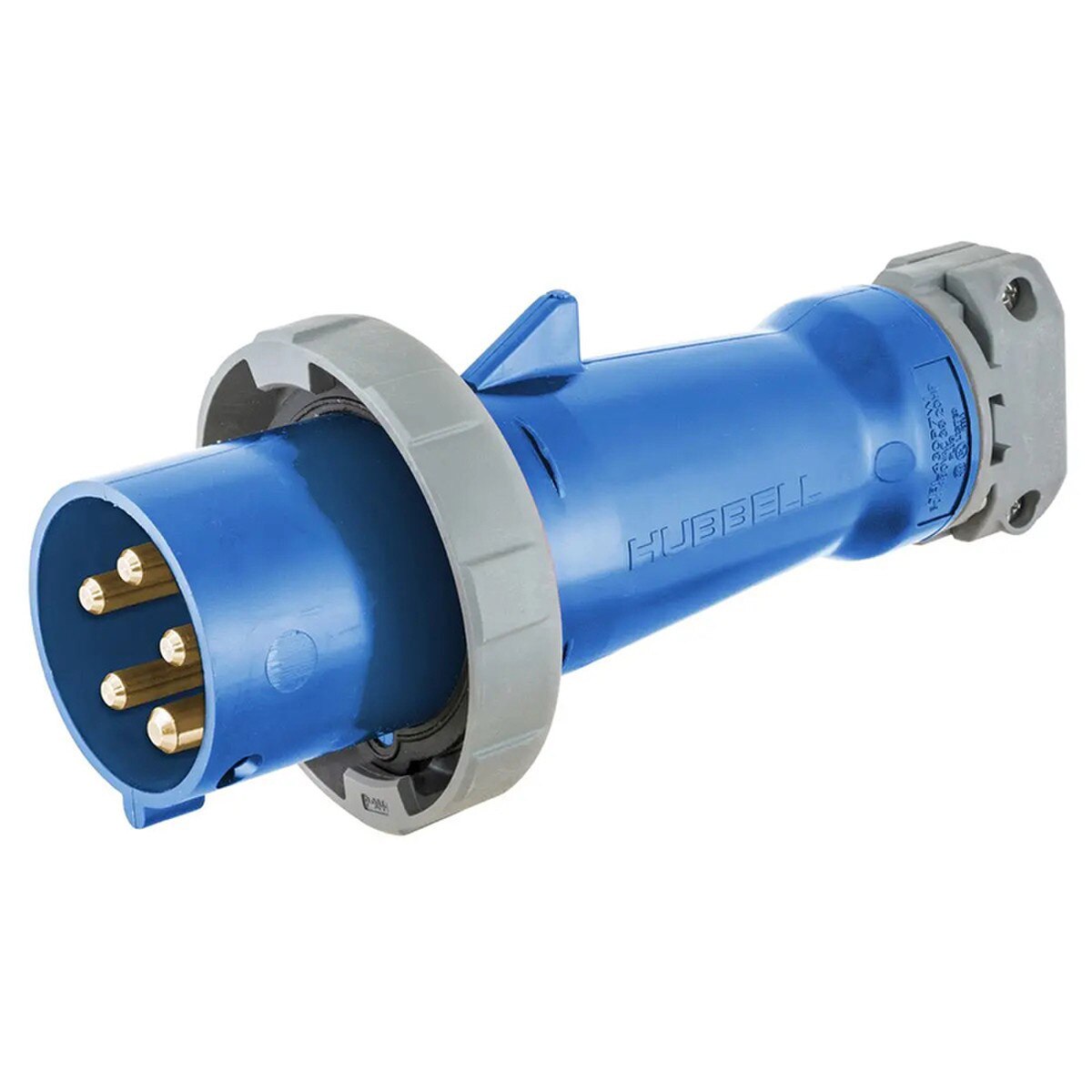

Hubbell IEC Pin and Sleeve Male Plug, 60A 3-Phase Wye 120/208V AC, 4- Pole 5-Wire Grounding - Watertight

(0)No Reviews yet
SKU: Hubbell HBL560P9W


Heavy Duty Products, IEC Pin and Sleeve Devices, Industrial Grade, Male, Plug, 60A 3-Phase Wye 120/208V AC, 4- Pole 5-Wire Grounding, Terminal Screws, Blue, Watertight

Watertight Devices - Hubbell’s IEC 60309 Pin and Sleeve plugs, connectors, inlets and receptacles are the highest performing products available. The HBL® series of IEC pin and sleeve were designed for the demanding North American market. Hubbell was the first and is still only manufacturer of IEC 60309 devices in the USA and have numerous innovative features noted below. The IEC line of plugs and connectors are made with a rugged super tough, one-piece housing. The thermoset polyester contact carrier provides a high resistance to electrical tracking. They withstand higher temperatures which may result from overload or arcing. The heavy-duty, external cord grip provides superior strain relief on the conductors. Hubbell’s horsepower rated plugs and receptacles meet NEC 430.109(F) requirements and recognized as an approved disconnecting “line of sight” disconnecting means.

  • Solid one-piece pins for reliable electrical contact
  • Gasketed sealing ring provides watertight seal
  • Heavy duty external cord grips
  • Watertight


  • Application: High Ampacity Connections
  • Environmental Conditions: Watertight
  • Item Type: Male Plug
  • Material: Composite
  • Material - Mounting Hardware: Cord Mounted
  • Number Of Poles: 4-Pole
  • OEM Brand Name: Hubbell Wiring Device-Kellems
  • Series: HBL Heavy Duty
  • Style: Standard Service
  • Type: Watertight Plug
  • UPC: 783585405704


  • Electrical - Current Interrupting - Certified for current interrupting at full rated current
  • Electrical - Dielectric Voltage - Withstands 3,000V AC Min
  • Electrical - Max. Working Voltage - 600V AC RMS
  • Environmental - Flammability - HB or Better per UL 94 or CSA C22.2 No. 0.17
  • Environmental - Ingress Protection - IP67 Suitability
  • Environmental - Moisture Resistance - Watertight per IEC 60309-1
  • Environmental - Operating Temperature - Maximum Continuous 75°C, Minimum - 40°C w/o impact
  • Mechanical - Impact Resistance - Per CSA C22.2 No. 182.1 / UL1682
  • Mechanical - Product Identification - Identification and ratings are a permanent part of the device housing.
  • Mechanical - Terminal Identification - Terminals identified in accordance with North American and IEC conventions


  • Display Size: Standard Sized

Electrical Ratings:

  • Amperage Rating: 60 A
  • Connectivity: Pressure Terminal Screws
  • Current / Amperage Rating: 60 A
  • Current Rating: 60 A
  • Phase: Three Phase
  • Voltage Rating: 3 Phase Y 120/208 VAC
  • Voltage Rating Description: 3-Phase 120/208 VAC

Conductor Related:

  • Cord Type: All Portable
  • Wire Size: #8 AWG to #2 AWG

Certifications and Compliance:

  • CSA Standard C22.2 No. 182.1
  • UL Classified to IEC60309-1
  • UL Listed, File E146032
  • Nema Rating: Non-NEMA


  • Carton Quantity: 10
  • Pallet Quantity: 180

Hubbell HBL560P9W Instruction Manual.pdf
Hubbell HBL560P9W Specifications.pdf
Hubbell HBL560P9W Dimensional Drawing.pdf
Hubbell HBL560P9W Warranty.pdf
