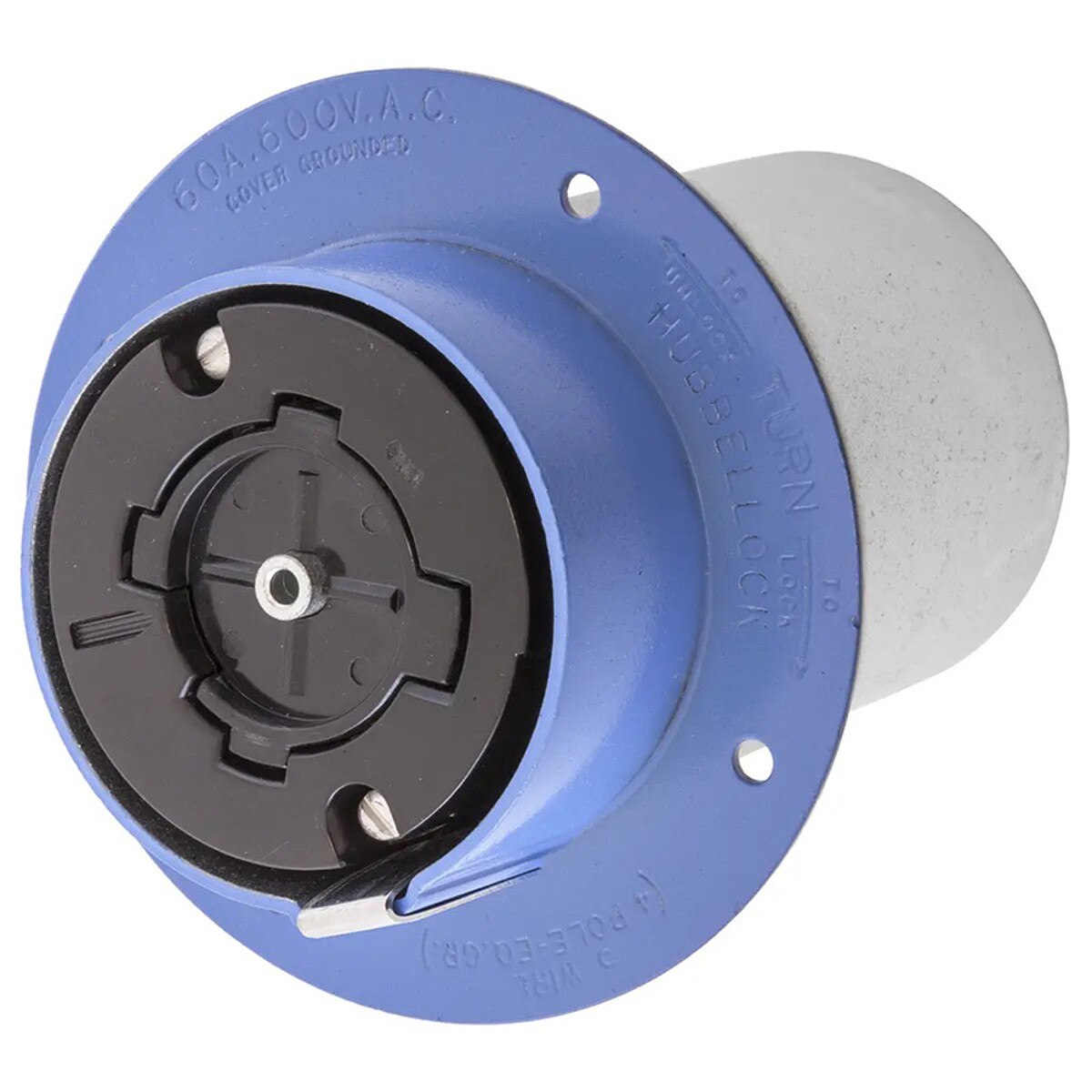

Hubbell Locking Flanged Receptacle, 60A 600V AC, 4-Pole 5-Wire Grounding, Non NEMA, Screw Terminal - Blue

(0)No Reviews yet
$358.71
SKU: Hubbell HBL26521

Details

Locking Devices, Hubbellock®, Industrial, Flanged Receptacle, 60A 600V AC, 4-Pole 5-Wire Grounding, Black phenolic interior with steel housing and flange with blue finish, Non NEMA, Screw Terminal, Blue



The Hubbellock devices feature an exclusive design unlike any other in the industry. The unique design is built to provide the safest heavy duty device even in some of the harshest environments. These Hubbellock plugs and connector bodies are built with a super tough nylon housing for high impact resistance and a one of kind interior design for superior safety that Hubbell is known for. The male contacts are molded into the nose for damage resistance and completely eliminate the chance of deformity. Additionally, the plug as well as the connector retains power mechanical cord grips that not only secure the cable but also clamp down on the conductors in order to provide unrivaled strain relief. Inside the connector is Hubbell's unique safety design. With unparalleled box terminations the connector interior holds a spring-loaded safety shutter to provide the ultimate arc protection. Furthermore the exceptional heat and impact resistance is maintained by the thermoplastic interior contributing toa longer lasting device. In all, the one of a kind function of the Hubbellock devices provide a safe and dependable performance in the most demanding applications.


  • Spring loaded safety shutter contains arcing when mating or un-mating devices under load
  • Spring loaded safety shutter automatically ejects the plug eliminating contact teasing
  • Box terminals in conjunction with stainless steel terminal screws provide maximum termination strength and dependability
  • Metallic housing provides protection from damage in harsh environments
  • Auto Ejects Improperly Made Connection

General:

  • Application: Heavy Duty Industrial
  • Environmental Conditions: Indoor Dry Unless Protected By Additional Means
  • Item Type: 60A Grounding Hubbellock® Flanged Receptacle
  • Material: Steel, Zinc Plated
  • Material - Mounting Hardware: Screw Mounting
  • Number Of Poles: 4-Pole
  • OEM Brand Name: Hubbell Wiring Device-Kellems
  • Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
  • Type: Flanged Receptacle
  • UPC: 783585017525

Performance:

  • Electrical - Current Interrupting - Certified for current interrupting at full rated current
  • Electrical - Dielectric Voltage - 2,000V minimum
  • Environmental - Flammability - UL 94 V0 for Receptacles and Inlets.HB or better for Plugs and Connectors
  • Environmental - Moisture Resistance - IP30 Suitability
  • Environmental - Operating Temperatures - Maximum Continuous 75°C,Minimum -40°C (w/o impact)
  • Mechanical - Terminal Accomodation - #8 AWG - #4 AWG solid or stranded copper wire only.
  • Mechanical - Terminal Identification - Terminals identified in accordance with UL 498

Dimensions:

  • Dimensions: 4.12 in x 2.87 in x 4.53 in
  • Display Size: Standard Sized Product
  • Height: 4.53 in
  • Length: 4.12 in
  • Weight: 2.1 lb
  • Width: 2.87 in

Electrical Ratings:

  • Amperage Rating: 60 A
  • Connectivity: Screw Terminals
  • Current / Amperage Rating: 60 A
  • Current Rating: 60 A
  • Dielectric Strength: Withstands 2,000V minimum
  • Phase: Multi Phase
  • Voltage Rating: 600 VAC
  • Voltage Rating Description: 600 VAC

Conductor Related:

  • Number Of Wires: 5-Wire
  • Wire Size: #8 AWG to #4 AWG

Certifications and Compliance:

  • Certified to CSA Standard
  • Listed to UL Standard

Logistics:

  • Carton Quantity: 5


Hubbell HBL26521 Instruction Manual.pdf
Hubbell HBL26521 Specifications.pdf
Hubbell HBL26521 Dimensional Drawing.pdf
Hubbell HBL26521 Warranty.pdf
