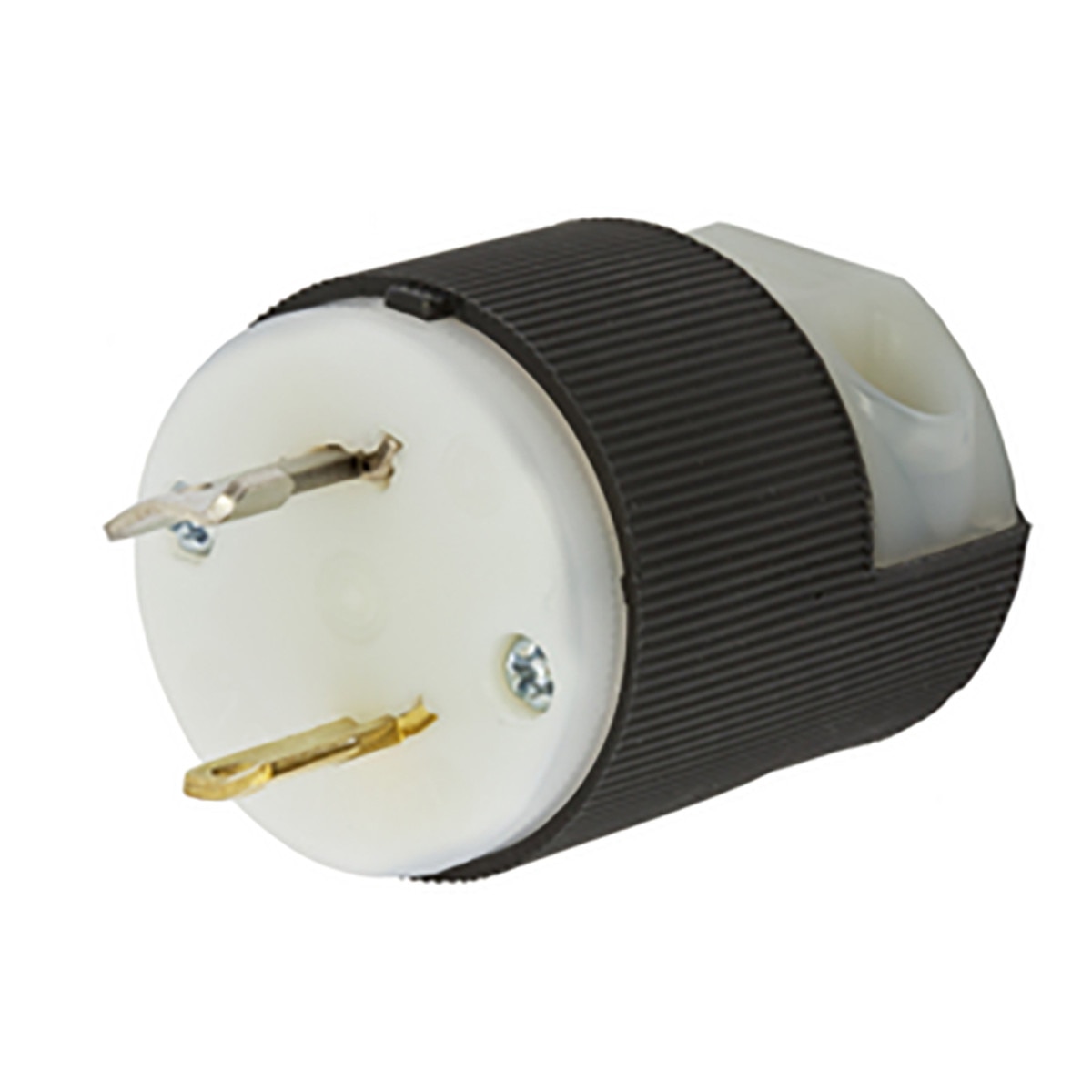

Hubbell Midget Twist-Lock® Male Plug, 15A 125V, 2-Pole 2-Wire Non Grounding, L1-15P, Screw Terminal - Black and White

Locking Devices, Midget Twist-Lock®, Industrial, Male Plug, 15A 125V, 2-Pole 2-Wire Non Grounding, L1-15P, Screw Terminal, Black and White.

• Weather protective covering

General:

• Cord Range: 0.230"-0.720"(5.8-18.3)
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: Yes
• Horsepower - Maximum: 0.5
• Item Type: Plug
• Material: Composite
• Material - Mounting Hardware: Cord Mounted
• Number Of Poles: 2-Pole
• OEM Brand Name: Hubbell Wiring Device-Kellems
• Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
• Type: Plugs
• UPC: 783585178509

Performance:

• Electrical - Current Interrupting - Certified for current interrupting at full rated current
• Electrical - Dielectric Voltage - Withstands 2,000V minimum
• Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17
• Environmental - Moisture Resistance - IP20 Suitability
• Environmental - Operating Temperatures - Maximum Continuous 75°C, Minimum -40°C (w/o impact)
• Mechanical - Terminal Accommodation - #18 AWG - #10 AWG stranded copper wire only.
• Mechanical - Terminal Identification - Terminals identified in accordance with UL 498

Dimensions:

• Dimensions: 1.96 in x 1.52 in x 1.52 in
• Display Size: Standard Sized
• Height: 1.52 in
• Length: 1.96 in
• Weight: 0.15 lb
• Width: 1.52 in

Electrical Ratings:

• Amperage Rating: 15 A
• Connectivity: Pressure Terminal Screws
• Current / Amperage Rating: 15 A
• Current Rating: 15 A
• Dielectric Strength: Withstands 2,000V minimum
• Phase: Single Phase
• Voltage Rating: 125 V
• Voltage Rating Description: 125 V

Conductor Related:

• Cable Range: 0.230 - 0.720 in
• Cord Type: All Listed Portables
• Number Of Wires: 3-Wire
• Wire Size: #14 AWG to #12 AWG

Certifications And Compliance:

• Nema Rating
• L1-15P
• Standards - RoHS Compliance Status
• CM

Industry Standard(s):

• Certified to CSA C22.2 No. 42
• Fed. Spec W-C-596
• Listed to UL 498

Logistics:

• Carton Quantity: 10
• Pallet Quantity: 3600
