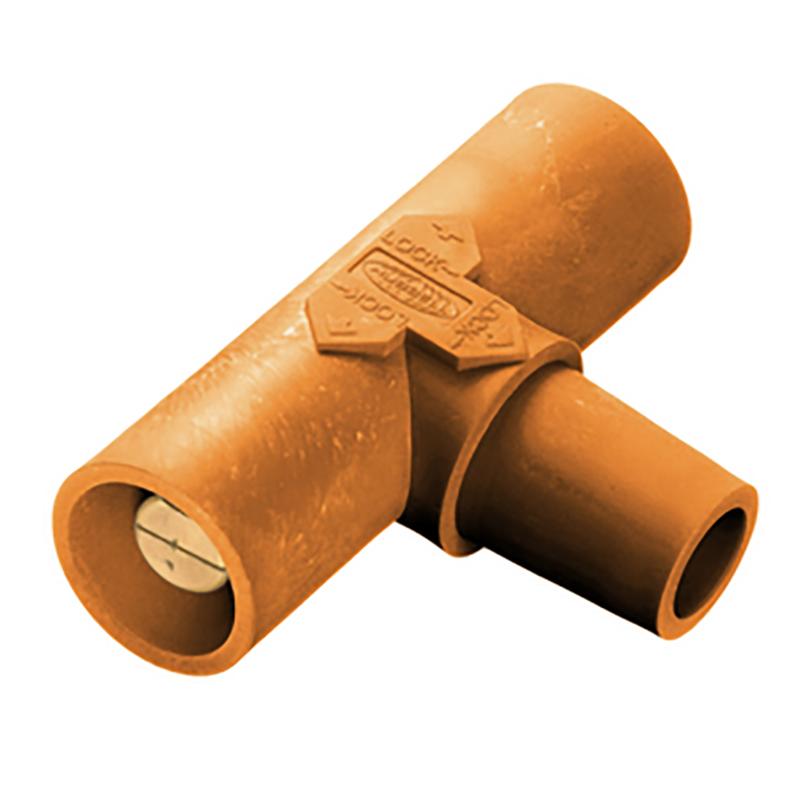

Hubbell Paralleling Tee - Orange

Heavy Duty Products, Single Pole Devices, Industrial Grade, Female-Male-Male, Paralleling Tee, 300/400A 600V AC/DC, Single Conductor, Pre-Wired, Orange

General:

• Application: High Ampacity
• Color: Orange
• EU RoHS Indicator: Contact Manufacturer
• Insulation: Insulated Body
• Item Type: T-Fittings
• Material: Brass and Elastomer
• Number Of Pins: 1) In, 2) Out- Male-Female-Female
• OEM Brand Name: Hubbell Wiring Device-Kellems
• Operating Temperature: Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
• Series: Series 16
• Style: Paralleling Tee Femal-Male-Male
• Type: Tees and 3-Fers
• UPC: 783585113142

Performance:

• Electrical - Amperage Rating - 400A Maximum
• Electrical - Voltage Ratings - 600V AC Maximum, 250V DC Maximum
• Mechanical - Product Identification - Ratings are a permanent part of the device

Electrical Ratings:

• Amperage Rating: 400 A
• Current / Amperage Rating: 400 A
• Current Rating: 400 A
• Voltage Rating Description: 600V AC/DC
• Wattage: 360000

Certifications And Compliance:

• Industry Standard(s): UL 498 And UL1691

Logistics:

• Carton Quantity: 10
