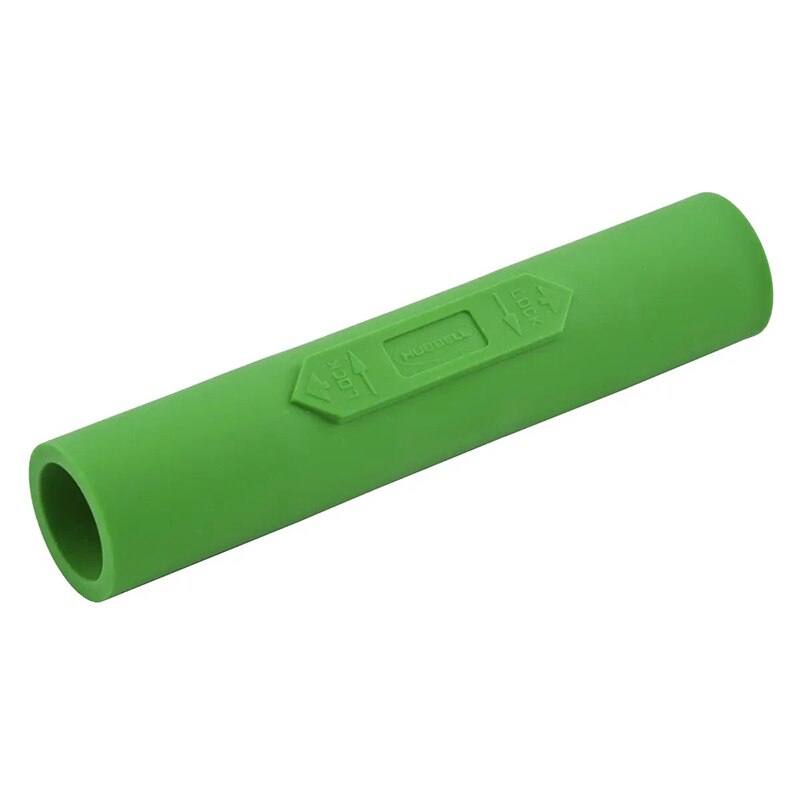

Hubbell Single Pole Double Male Coupler, 150 Amp Series - Green

Single Pole Products, Double Male Coupler, 150 Amp Series, Green

Hubbell Wiring Device–Kellems offers a full line of innovative, high quality, Series 15 and Series 16 single pole plugs, receptacles and accessories for the most demanding environments. Single pole devices are the right choice for supplying temporary electrical power distribution for entertainment, theme parks, carnival equipment, concerts, movie making and numerous other applications requiring temporary power. Single pole devices have been designed with ease of assembly and disassembly in mind, no special tools are required. A high strength non-conductive retaining screw is all that is needed to securely lock the contacts to the insulated sleeve.

• Double Male Coupler
• 150 Amp Series
• Green
• Standard Product

General:

• Application: Temporary Electrical Power
• Catalog Number: HBL15DMGN
• Color: Green
• EU RoHS Indicator: Contact Manufacturer
• Insulation: Insulated Body
• Item Type: Double Male Coupler
• Material: Brass and Non-Metallic
• Material - Mounting Hardware: Cord Mounted
• Number Of Poles: 1-Pole
• OEM Brand Name: Hubbell Wiring Device-Kellems
• Style: Male-Male
• Temperature Rating: Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
• Type: Gender Reversing Devices
• UPC: 783585458670

Electrical Ratings:

• Amperage Rating: 150 A
• Connectivity: Plug-In

Conductor Related:

• Number of Conductors: 1 Conductor

Certifications And Compliance:

• EU RoHS Indicator: Contact Manufacturer
• Nema Rating: Non-NEMA

Industry Standard(s):

• National Electric Code (NEC), ANSI/NFPA 70
• UL and cUL Listed
• UL Enclosure Types 3R, 4X, 12

Operational:

• Temperature Rating: Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.

Configuration:

• Number Of Poles: 1-Pole

Logistics:

• Carton Quantity: 25
