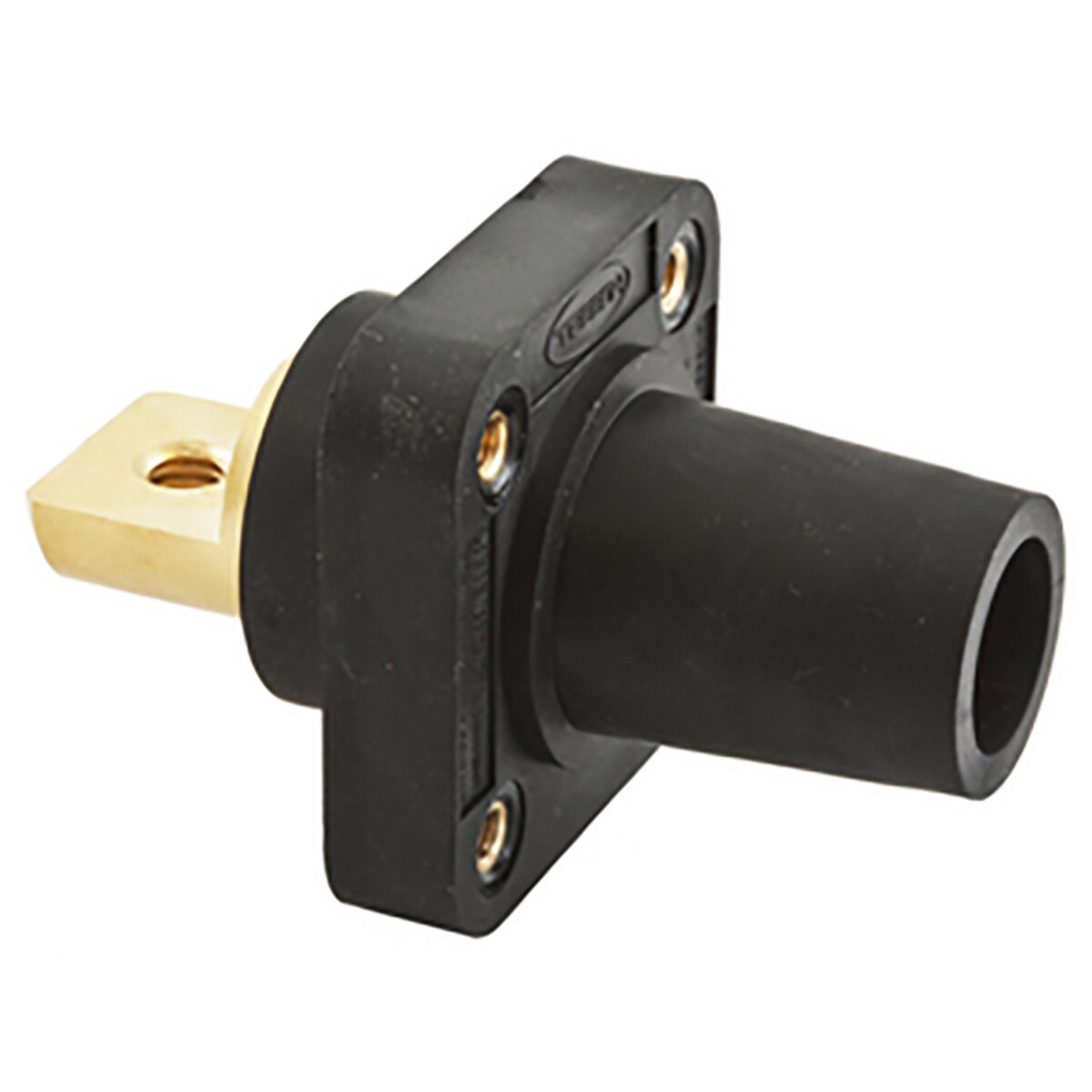

Hubbell Single Pole, Female Bus Receptacle, 300/400A 600V AC/DC, Single Conductor - Black

Heavy Duty Products, Single Pole Devices, Industrial Grade, Female Bus Receptacle, 300/400A 600V AC/DC, Single Conductor, Black

Hubbell Wiring Device–Kellems offers a full line of innovative, high quality, Series 15 and Series 16 single pole plugs, receptacles and accessories for the most demanding environments. Single pole devices are the right choice for supplying temporary electrical power distribution for entertainment, theme parks, carnival equipment, concerts, movie making and numerous other applications requiring temporary power. Single pole devices have been designed with ease of assembly and disassembly in mind, no special tools are required. A high strength non-conductive retaining screw is all that is needed to securely lock the contacts to the insulated sleeve.

General:

• Application: High Ampacity Connections
• Color: Black
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: No
• Item Type: Flanged Single
• Material: Thermoplastic
• Material - Mounting Hardware: Screw Mounting
• Number Of Poles: 1-Pole
• OEM Brand Name: Hubbell Wiring Device-Kellems
• Series: Series 16
• Style: Bus Bar Mount Female
• Type: Receptacle
• UPC: 783585192635

Performance:

• Electrical - Amperage Rating - 400A Maximum
• Electrical - Voltage Ratings - 600V AC Maximum, 250V DC Maximum
• Environmental - Flammability - HB per UL94 or CSA 22.2. 0.17
• Mechanical - Product Identification - Ratings are a permanent part of device
• Mechanical - Terminal Accommodation - #4 to 4/0 AWG

Dimensions:

• Display Size: Standard Sized Product

Electrical Ratings:

• Amperage Rating: 400 A
• Connectivity: Screw Terminals
• Current / Amperage Rating: 400 A
• Current Rating: 400 A
• Phase: Single Phase
• Voltage Rating Description: 600V AC/DC
• Wattage: 240000

Conductor Related:

• Wire Size: #4 AWG to #4/0 AWG

Industry Standard(s):

• National Electric Code (NEC), ANSI/NFPA 70
• UL and cUL Listed
• UL Enclosure Types 3R, 4X, 12
• Nema Rating: Non-NEMA

Logistics:

• Carton Quantity: 25
• Pallet Quantity: 1575
