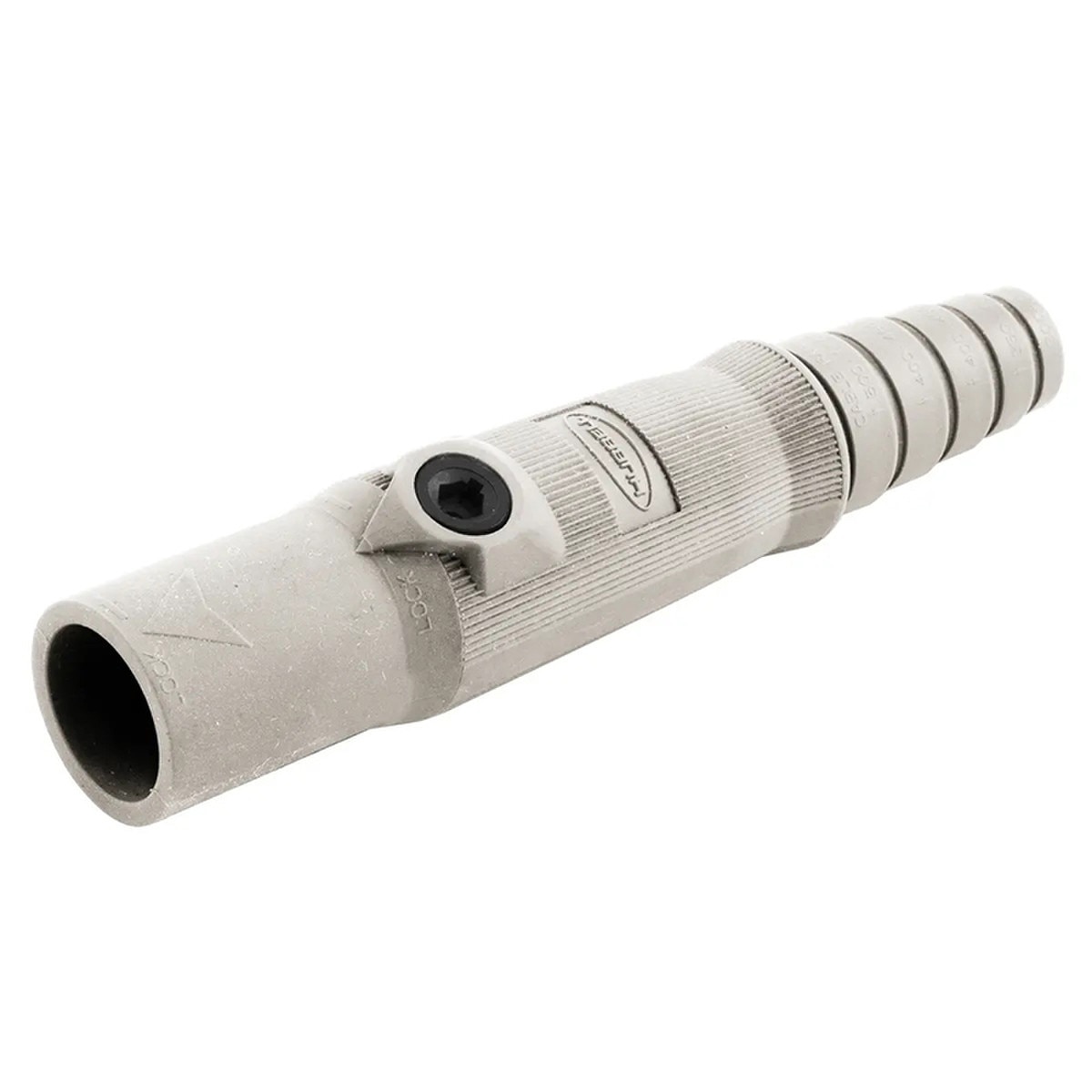

Hubbell Single Pole Male Plug, 150 Amp Series - White

Single Pole Products, Male Plug, 150 Amp Series, White

Hubbell Wiring Device–Kellems offers a full line of innovative, high quality, Series 15 and Series 16 single pole plugs, receptacles and accessories for the most demanding environments. Single pole devices are the right choice for supplying temporary electrical power distribution for entertainment, theme parks, carnival equipment, concerts, movie making and numerous other applications requiring temporary power. Single pole devices have been designed with ease of assembly and disassembly in mind, no special tools are required. A high strength non-conductive retaining screw is all that is needed to securely lock the contacts to the insulated sleeve.

• Insulgrip® Style Housing for Superior Gripping
• Non-Conductive Retaining Screw locks contacts in place
• Large Raised Alignment Arrow aids in the mating of devices

General:

• Catalog Number: HBL15MW
• Color: White
• EU RoHS Indicator: Contact Manufacturer
• Style: Male
• Type: Plugs
• UPC: 783585458335

Specifications:

• Base Compound - Thermoplastic Elastomer (TPE)
• Contact Material - Brass
• Retaining Screw Material - Nylon

Electrical Ratings:

• Amperage Rating: 150 A

Certifications And Compliance:

• EU RoHS Indicator: Contact Manufacturer

Industry Standard(s)::

• National Electric Code (NEC), ANSI/NFPA 70
• UL and cUL Listed
• UL Enclosure Types 3R, 4X, 12

Logistics:

• Carton Quantity: 25
• Pallet Quantity: 4500

Hubbell HBL15MW Specifications.pdf
Hubbell HBL15MW Installation Manual.pdf
Hubbell HBL15MW Sales Drawing.pdf
Hubbell HBL15MW Warranty.pdf
