  • Hubbell Single Pole Male Plug, 300A 600V AC/DC, Single Conductor, Double Set Screws - Yellow

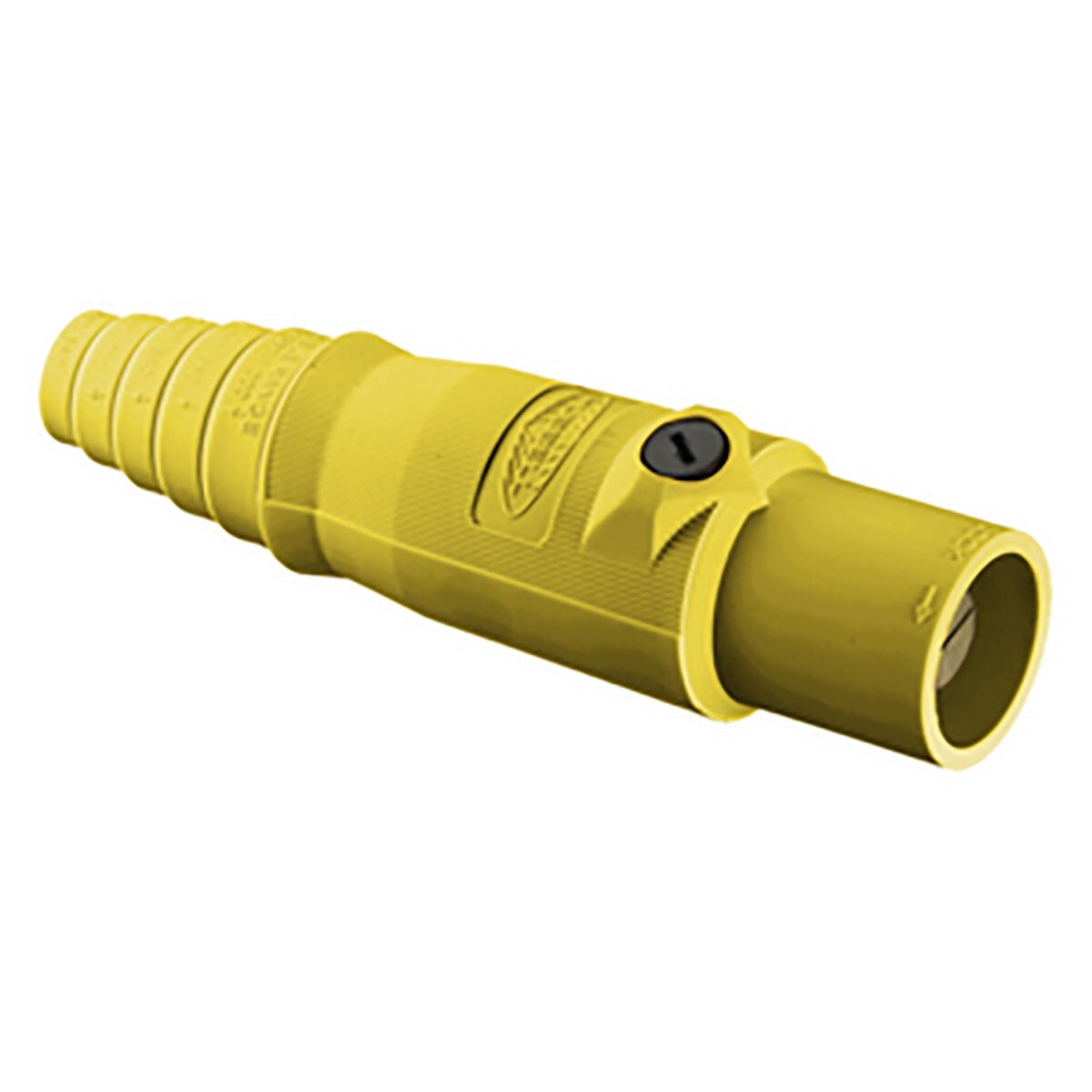

Hubbell Single Pole Male Plug, 300A 600V AC/DC, Single Conductor, Double Set Screws - Yellow

(0)No Reviews yet
$27.16
SKU: Hubbell HBL300MY

Details

Heavy Duty Products, Single Pole Devices, Industrial Grade, Male, Plug, 300A 600V AC/DC, Single Conductor, Double Set Screws, Yellow


Hubbell Wiring Device–Kellems offers a full line of innovative, high quality, Series 15 and Series 16 single pole plugs, receptacles and accessories for the most demanding environments. Single pole devices are the right choice for supplying temporary electrical power distribution for entertainment, theme parks, carnival equipment, concerts, movie making and numerous other applications requiring temporary power. Single pole devices have been designed with ease of assembly and disassembly in mind, no special tools are required. A high strength non-conductive retaining screw is all that is needed to securely lock the contacts to the insulated sleeve.


  • Insulgrip® Style Housing for Superior Gripping
  • Non-Conductive Retaining Screw locks contacts in place
  • Large Raised Alignment Arrow aids in the mating of devices

General:

  • Color: Yellow
  • EU RoHS Indicator: Yes
  • Series: Series 16
  • Style: Male
  • Type: Plugs
  • UPC: 783585112152

Performance:

  • Electrical - Amperage Rating - 400A Maximum
  • Electrical - Voltage Ratings - 600V AC Maximum, 250V DC Maximum
  • Environmental - Flammability - HB per UL94 or CSA 22.2. 0.17
  • Mechanical - Product Identification - Ratings are a permanent part of device
  • Mechanical - Terminal Accommodation - #6 to 2/0 AWG

Electrical Ratings:

  • Amperage Rating: 300 A
  • Current / Amperage Rating: 300 A
  • Voltage Rating Description: 600V AC/DC

Industry Standard(s):

  • National Electric Code (NEC), ANSI/NFPA 70
  • UL and cUL Listed
  • UL Enclosure Types 3R, 4X, 12

Logistics:

  • Carton Quantity: 10
  • Pallet Quantity: 2500


Hubbell HBL300MY Specifications.pdf
Hubbell HBL300MY Installation Manual.pdf
Hubbell HBL300MY Dimensional Drawing.pdf
Hubbell HBL300MY Warranty.pdf
