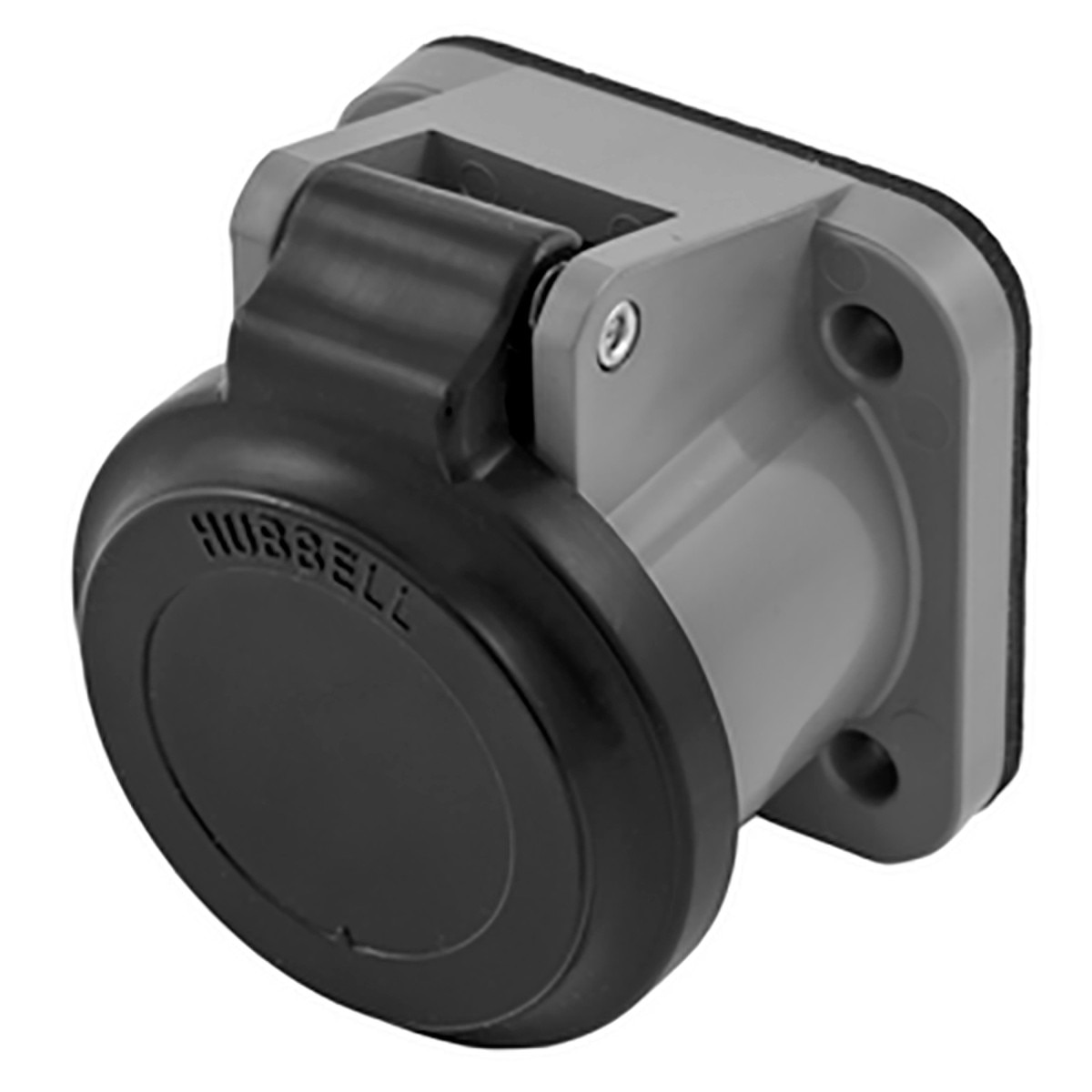

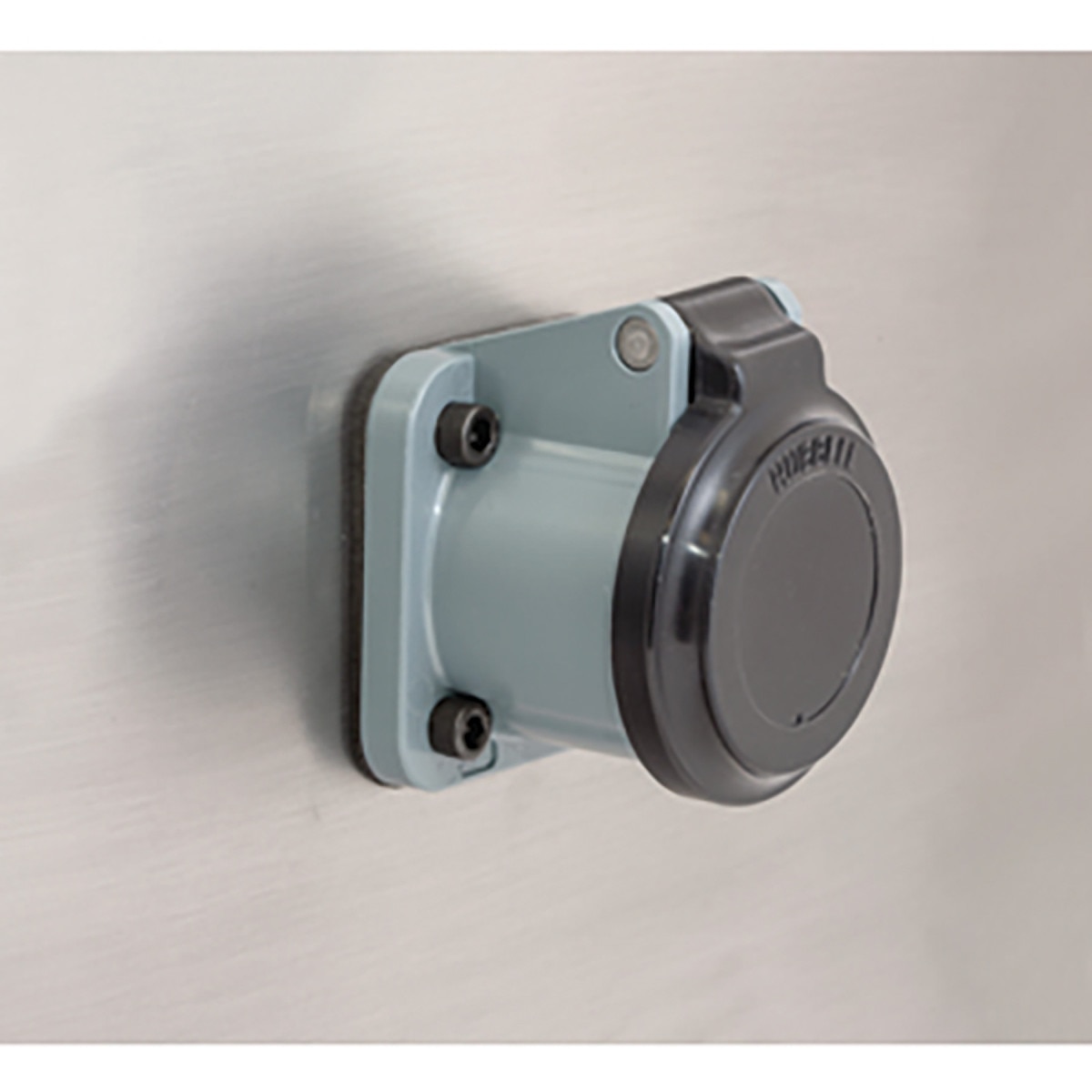

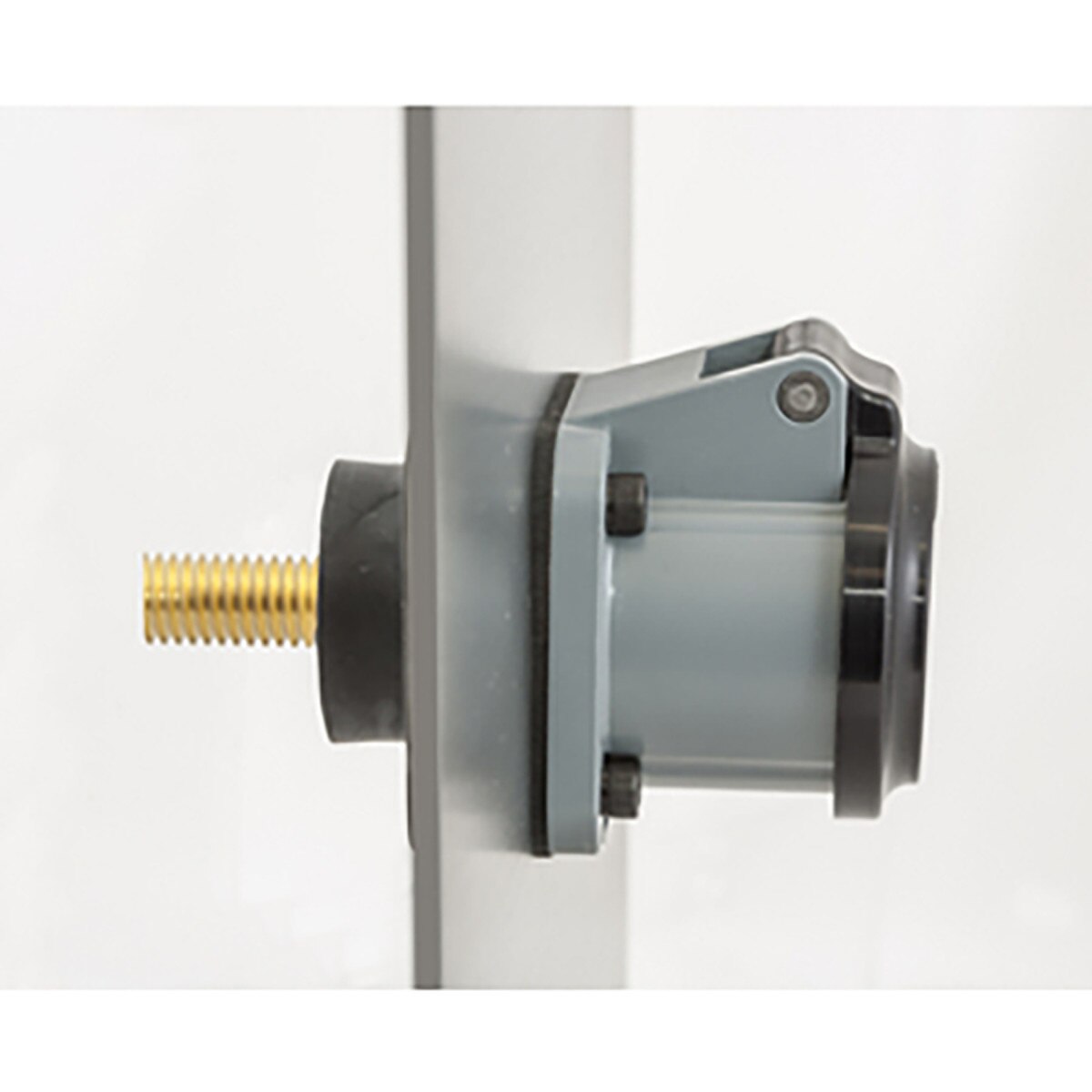

Hubbell Single Pole Weatherproofing Cover, Non-Metallic - Black

Single Pole Products, Weatherproofing Cover, Non-Metallic, Black

Hubbell Wiring Device–Kellems offers a full line of innovative, high quality, Series 15 and Series 16 single pole plugs, receptacles and accessories for the most demanding environments. Single pole devices are the right choice for supplying temporary electrical power distribution for entertainment, theme parks, carnival equipment, concerts, movie making and numerous other applications requiring temporary power. Single pole devices have been designed with ease of assembly and disassembly in mind, no special tools are required. A high strength non-conductive retaining screw is all that is needed to securely lock the contacts to the insulated sleeve.

General:

• Application: Weatherproofing
• Color: Black
• Construction: Fabricated
• EU RoHS Indicator: No
• Item Type: Cover
• Material: Non-Metallic
• Material - Mounting Hardware: Mounts to Device
• OEM Brand Name: Hubbell Wiring Device-Kellems
• Series: Series 16
• Type: Weather Protective Cover
• UPC: 783585198460

Dimensions:

• Display Size: 1 Device

Electrical Ratings:

• Amperage Rating: 400 A
• Current / Amperage Rating: 400 A
• Voltage Rating Description: 600V AC/DC

Certifications And Compliance:

• Standards - RoHS Compliance Status: CM

Industry Standard(s):

• National Electric Code (NEC), ANSI/NFPA 70
• UL and cUL Listed
• UL Enclosure Types 3R, 4X, 12

Logistics:

• Carton Quantity: 25
• Pallet Quantity: 2375

Hubbell HBLNCBK Specifications.pdf
Hubbell HBLNCBK Installation Manual.pdf
Hubbell HBLNCBK Dimensional Drawing.pdf
Hubbell HBLNCBK Warranty.pdf
