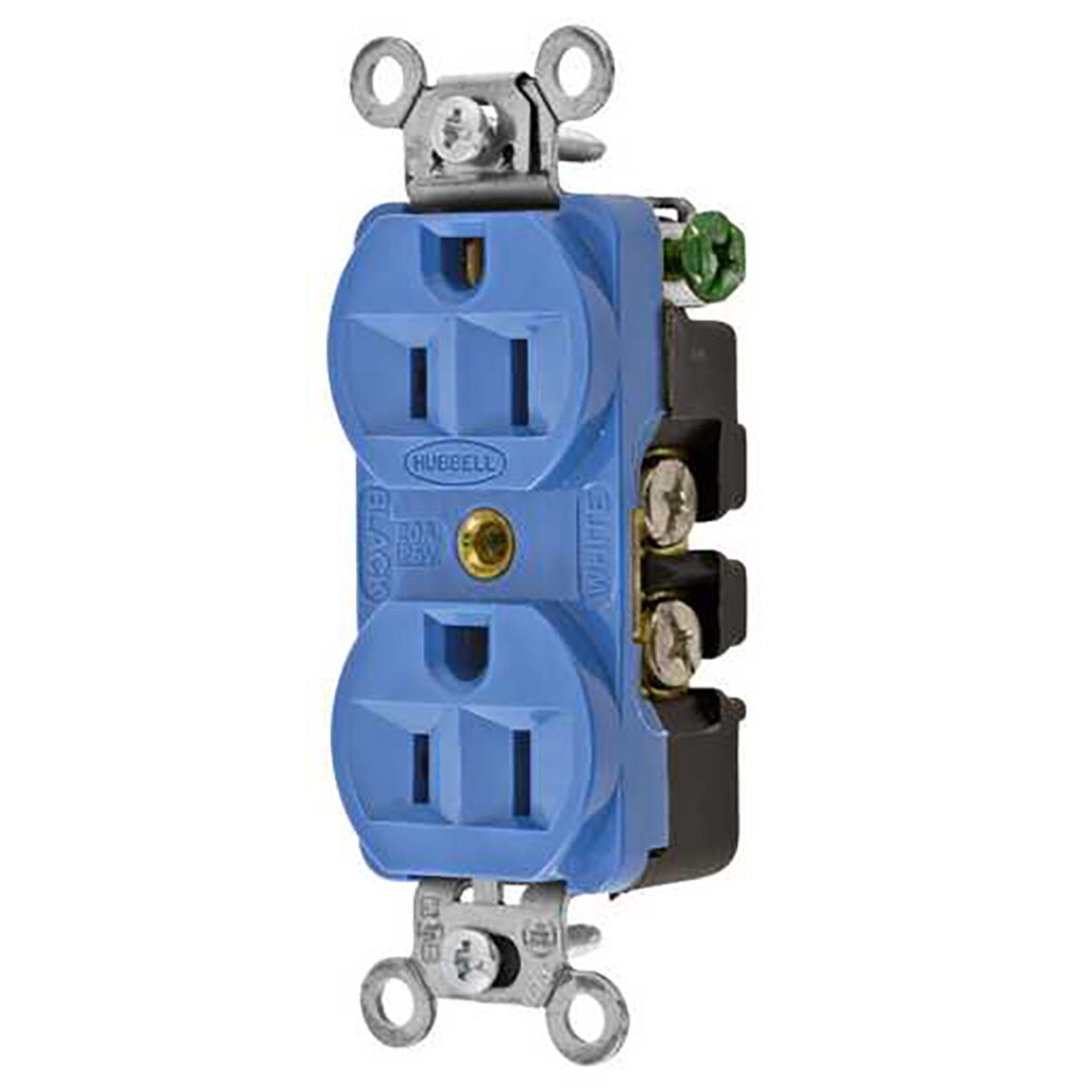

Hubbell Straight Blade Duplex Receptacle, 2-Pole 3-Wire Grounding, 15A 125V, 5-15R - Blue

Straight Blade Devices, Receptacles, Duplex, Commercial/Industrial Grade, 2-Pole 3-Wire Grounding, 15A 125V, 5-15R, Blue

• Self Grounding

General:

• Application: Hubbell-Pro Extra Heavy Duty
• Color: Blue
• Environmental Conditions: Indoor Dry unless protected by additional means
• EU RoHS Indicator: No
• Item Type: Traditional Duplex
• Material: Thermoplastic/Composite
• Material - Mounting Hardware: Screw Mounting
• Mounting Type: Screw Mount
• Number Of Poles: 2-Pole
• OEM Brand Name: Hubbell Wiring Device-Kellems
• Series: Hubbell-PRO
• Size: Standard Sized Product
• Style: Finder Groove Face
• Temperature Rating: Maximum continuous 75°C; minimum -40°C (w/o impact)
• Type: Standard Duplex
• UPC: 783585147178

Dimensions:

• Display Size: Standard Sized Product

Electrical Ratings:

• Amperage Rating: 15 A
• Connectivity: Back and Side Wired
• Current / Amperage Rating: 15 A
• Current Rating: 15 A
• Phase: Single Phase
• Voltage Rating: 125 V
• Wattage: 1875 W

Conductor Related:

• Number Of Wires: 3-Wire
• Wire Size: #14 AWG to #10 AWG

Certifications And Compliance:

• Industry Standard(s): UL File No. E2186, Certified to CSA 22.2, No. 42 File 285, Fed. Spec. W-C-596, NEMA® WD-6 Compliant
• Nema Rating: 5-15R

Logistics:

• Carton Quantity: 10

Hubbell 5262BL Specifications.pdf
Hubbell 5262BL Installation Manual.pdf
Hubbell 5262BL Dimensional Drawing.pdf
Hubbell 5262BL Warranty.pdf
