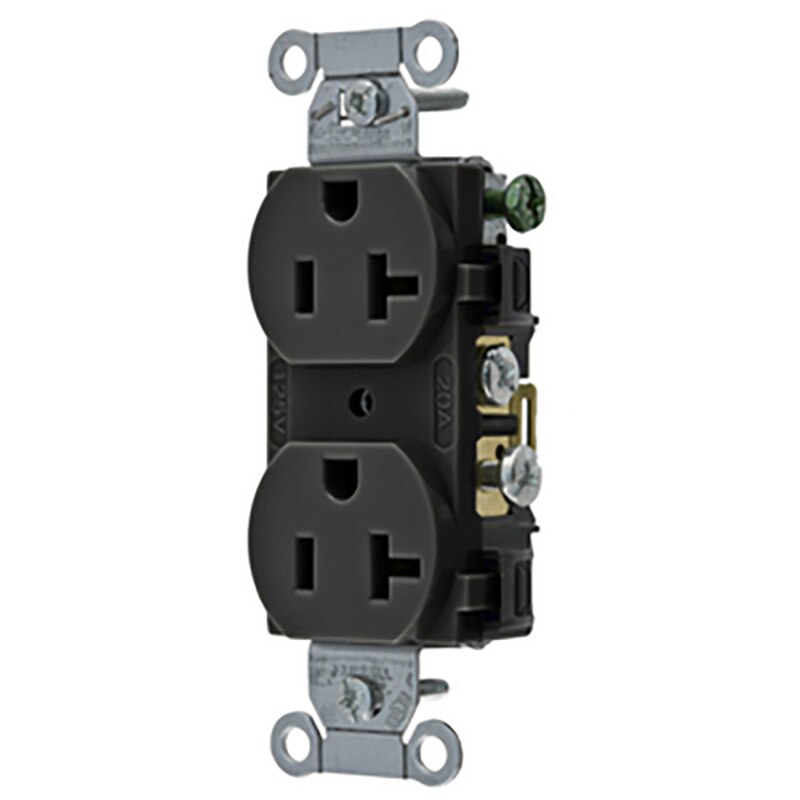

Hubbell Straight Blade Duplex Receptacle, 2-Pole 3-Wire Grounding, 20A 125V, 5-20R - Black

Straight Blade Devices, Receptacles, Duplex, Commercial Grade, 2-Pole 3-Wire Grounding, 20A 125V, 5-20R, Black, Single Pack.

• Self Grounding

General:

• Application: Commercial Specification Grade
• Color: Black
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: Yes
• Horsepower - Maximum: 1
• Item Type: Traditional Duplex
• Material: Nylon
• Material - Mounting Hardware: Screw Mounting
• Number Of Poles: 2-Pole
• OEM Brand Name: Hubbell Wiring Device-Kellems
• Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
• Series: Commercial Specification Grade
• Style: Smooth Face
• Type: Standard Duplex
• UPC: 783585900193

Performance:

• Electrical - Current Interrupting - Certified for current interrupting at full rated current
• Electrical - Dielectric Voltage - Withstands 2,000V minimum
• Environmental - Flammability - UL 94 V-2
• Environmental - Operating Temperatures - Maximum continuous 75°C minimum -40°C (w/o impact)
• Mechanical - Product Identification - Ratings are a permanent part of the device
• Mechanical - Terminal Accommodation - #12-#10 AWG copper stranded or solid conductor only
• Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA

Dimensions:

• Dimensions: 1.32 in x 0.83 in x 3.28 in
• Display Size: Standard Sized Product
• Height: 3.28 in
• Length: 1.32 in
• Weight: 0.2 lb
• Width: 0.83 in

Electrical Ratings:

• Amperage Rating: 20 A
• Connectivity: Side Wired
• Current / Amperage Rating: 20 A
• Current Rating: 20 A
• Dielectric Strength: Withstands 2,000V minimum
• Phase: Single Phase
• Voltage Rating: 125 V
• Voltage Rating Description: 125 V
• Wattage: 2500 W

Conductor Related:

• Number Of Wires: 3-Wire
• Wire Size: #12 AWG to #10 AWG

Industry Standard(s):

• Certified to CSA, C22.2, No. 42
• Fed. Spec. W-C-596
• NEMA® WD-6 Compliant
• UL Listed to UL498 File No. E2186

Certifications And Compliance:

• Nema Rating: 5-20R
• Standards - RoHS Compliance Status: CM

Logistics:

• Carton Quantity: 10
• Pallet Quantity: 9000
