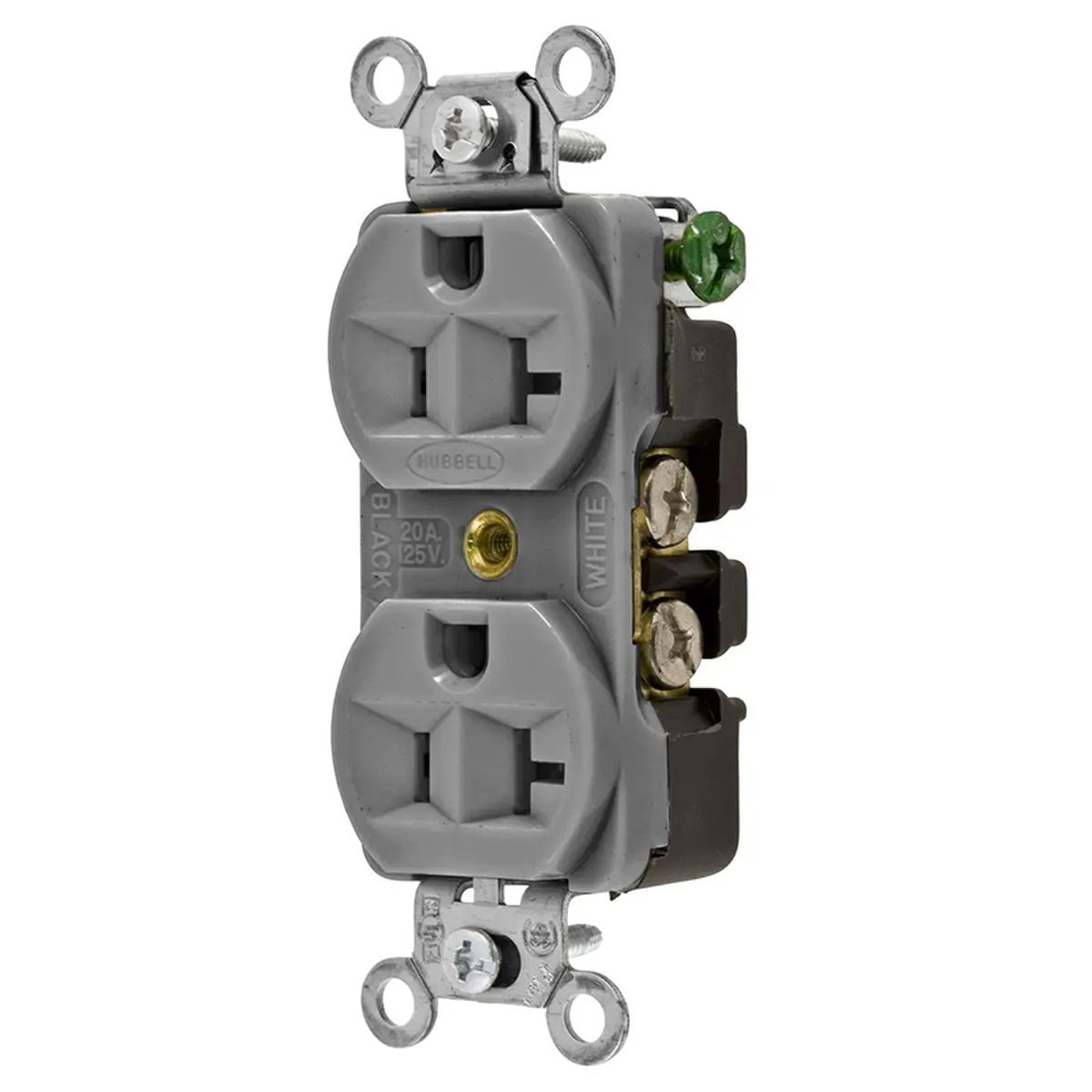

Hubbell Straight Blade Duplex Receptacle 2-Pole 3-Wire Grounding, 20A 125V, 5-20R - Gray

(0)No Reviews yet
$7.79
SKU: Hubbell 5362G

Details

Straight Blade Devices, Receptacles, Duplex, Commercial/Industrial Grade, 2-Pole 3-Wire Grounding, 20A 125V, 5-20R, Gray

At A Glance:

  • Slender/compact design
  • Finder Groove Face
  • Triple wipe contacts
  • Self Grounding

General:

  • Application: Hubbell-Pro Heavy Duty
  • Color: Gray
  • Environmental Conditions: Indoor Dry unless protected by additional means
  • Horsepower - Maximum: 1
  • Item Type: Traditional Duplex
  • Material: Thermoplastic/Composite
  • Material - Mounting Hardware: Screw Mounting
  • Mounting Type: Screw Mount
  • Number Of Poles: 2-Pole
  • OEM Brand Name: Hubbell Wiring Device-Kellems
  • Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact

Performance:

  • Electrical - Current Interrupting - Certified for current interrupting at full rated current
  • Electrical - Dielectric Voltage - Withstands 2,000V minimum
  • Environmental - Flammability - UL 94 V-2
  • Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact)
  • Mechanical - Product Identification - Ratings are a permanent part of the device
  • Mechanical - Terminal Accommodation - #12-#10 AWG copper stranded or solid conductor only
  • Mechanical - Terminal Identification - Terminal wire leads identified in accordance with UL 498
  • Series: Hubbell-PRO
  • Size: Standard Sized Product
  • Style: Finder Groove Face
  • Temperature Rating: Maximum continuous 75°C; minimum -40°C (w/o impact)
  • Type: Standard Duplex
  • UPC: 783585834993

Dimensions:

  • Dimensions: 3.28 in x 1.41 in x 1.09 in
  • Display Size: Standard Sized Product
  • Height: 1.09 in
  • Length: 3.28 in
  • Weight: 0.2 lb
  • Width: 1.41 in

Electrical Ratings:

  • Amperage Rating: 20 A
  • Connectivity: Back and Side Wired
  • Current / Amperage Rating: 20 A
  • Current Rating: 20 A
  • Dielectric Strength: Withstands 2,000V minimum
  • Phase: Single Phase
  • Voltage Rating: 125 V
  • Voltage Rating Description: 125 V
  • Wattage: 1875 W

Conductor Related:

  • Number Of Wires: 3-Wire
  • Wire Size: #12 AWG to #10 AWG

Certifications and Compliance:

  • Industry Standard(s): UL File No. E2186, Certified to CSA 22.2, No. 42 File 285, Fed. Spec. W-C-596, NEMA® WD-6 Compliant
  • Nema Rating: 5-20R
  • Standards - RoHS Compliance Status: CM

Logistics:

  • Carton Quantity: 10


Hubbell 5362G Wiring Specifications.pdf
Hubbell 5362G Dimensional Drawing.pdf
