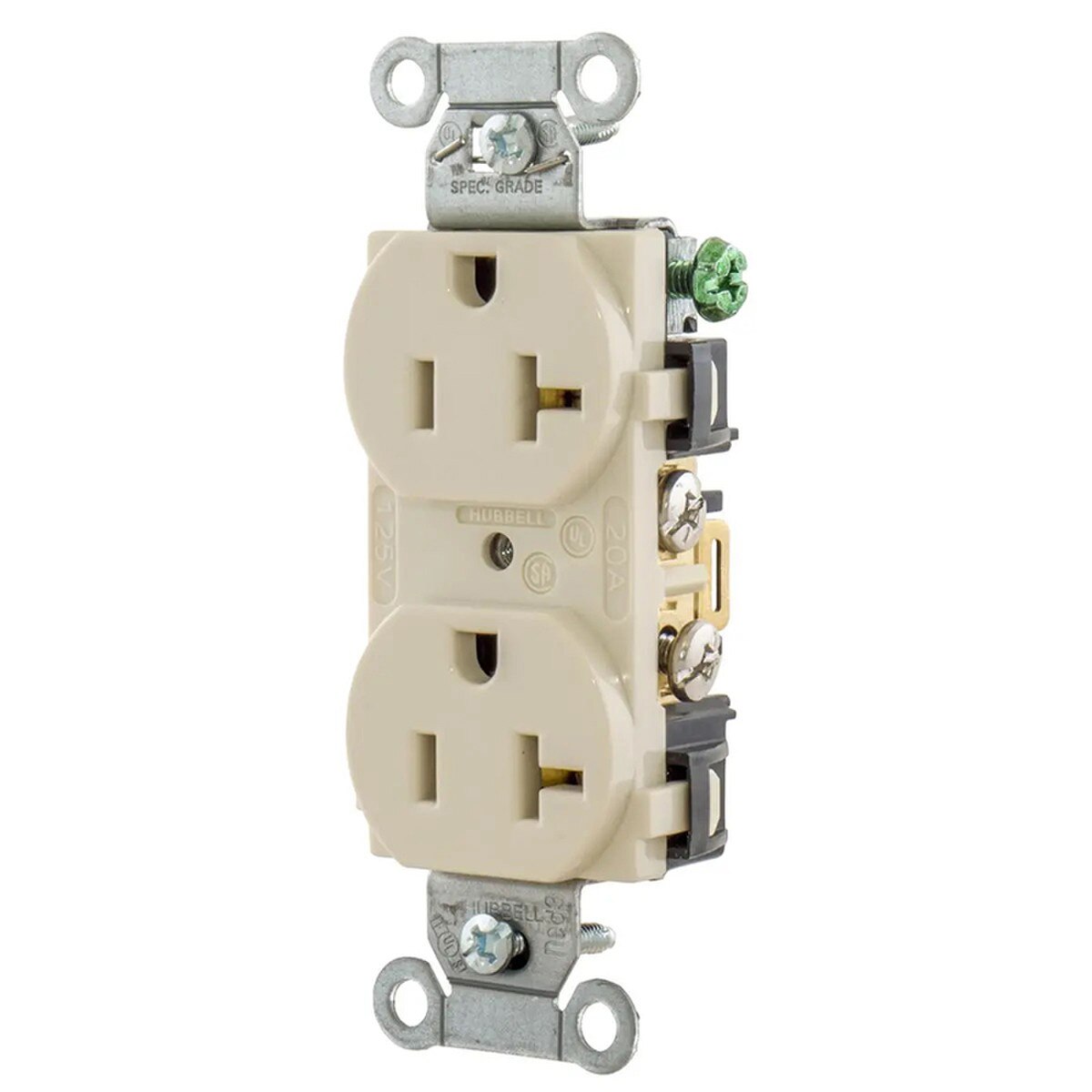

Hubbell Straight Blade Duplex Receptacle 2-Pole 3-Wire Grounding 20A-125V, 5-20R - Light Almond

Straight Blade Devices, Receptacles, Duplex, Commercial/Industrial Grade, 2-Pole 3-Wire Grounding, 20A 125V, 5-20R, Light Almond

Features:

• Easy access split circuit tab
• Smooth face
• Triple wipe contacts
• Wrap-around galvanized steel strap
• Self Grounding

General:

• Application: Hubbell-Pro Heavy Duty
• Color: Light Almond
• Environmental Conditions: Indoor Dry unless protected by additional means
• Horsepower - Maximum: 1
• Item Type: Traditional Duplex
• Material: Thermoplastic/Composite
• Material - Mounting Hardware: Screw Mounting
• Mounting Type: Screw Mount
• Number Of Poles: 2-Pole
• OEM Brand Name: Hubbell Wiring Device-Kellems
• Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
• Series: Hubbell-PRO
• Size: Standard Sized Product
• Style: Smooth Face
• Temperature Rating: Maximum continuous 75°C; minimum -40°C (w/o impact)
• Type: Standard Duplex
• UPC: 783585127705

Performance:

• Electrical - Current Interrupting - Certified for current interrupting at full rated current
• Electrical - Dielectric Voltage - Withstands 2,000V minimum
• Environmental - Flammability - UL 94 V-2
• Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact)
• Mechanical - Product Identification - Ratings are a permanent part of the device
• Mechanical - Terminal Accommodation - #12-#10 AWG copper stranded or solid conductor only
• Mechanical - Terminal Identification - Terminal wire leads identified in accordance with UL 498

Dimensions:

• Dimensions: 3.28 in x 1.41 in x 1.09 in
• Display Size: Standard Sized Product
• Height: 1.09 in
• Length: 3.28 in
• Weight: 0.15 lb
• Width: 1.41 in

Electrical Ratings:

• Amperage Rating: 20 A
• Connectivity: Back and Side Wired
• Current / Amperage Rating: 20 A
• Current Rating: 20 A
• Dielectric Strength: Withstands 2,000V minimum
• Phase: Single Phase
• Voltage Rating: 125 V
• Voltage Rating Description: 125 V
• Wattage: 1875 W

Conductor Related:

• Number Of Wires: 3-Wire
• Wire Size: #12 AWG to #10 AWG

Certifications and Compliance:

• Industry Standard(s): UL File No. E2186, Certified to CSA 22.2, No. 42 File 285, Fed. Spec. W-C-596, NEMA® WD-6 Compliant
• Nema Rating: 5-20R

Logistics:

• Carton Quantity: 10
