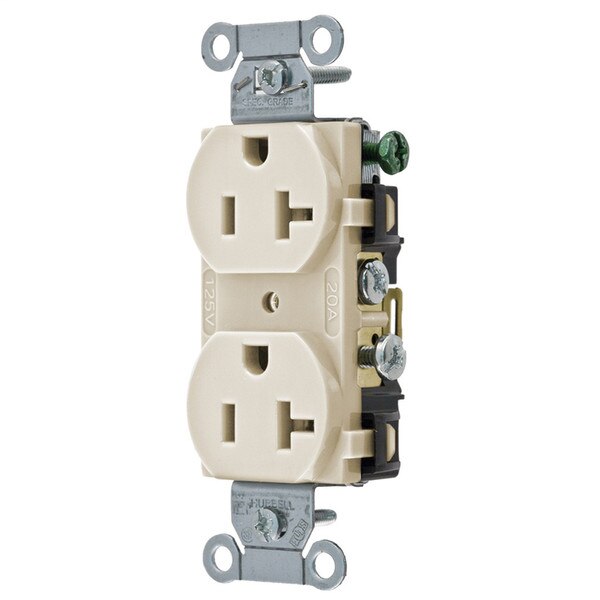

Hubbell Straight Blade Duplex Receptacle 2-Pole 3-Wire Grounding, 20A 125V, 5-20R - Light Almond
Details
At A Glance:
- Straight Blade Devices, Receptacles, Duplex, Commercial Grade, 2-Pole 3-Wire Grounding, 20A 125V, 5-20R, Light Almond.
Features:
- Easy access split circuit tab
- Self Grounding
- Fork terminal capable
- Smooth face
- Triple wipe contacts
Industry Standard(s):
- Certified to CSA, C22.2, No. 42
- Fed. Spec. W-C-596
- NEMA® WD-6 Compliant
- UL Listed to UL498 File No. E2186
Performance:
- Electrical - Current Interrupting - Certified for current interrupting at full rated current
- Electrical - Dielectric Voltage - Withstands 2,000V minimum
- Environmental - Flammability - UL 94 V-2
- Environmental - Operating Temperatures - Maximum continuous 75°C minimum -40°C (w/o impact)
- Mechanical - Product Identification - Ratings are a permanent part of the device
- Mechanical - Terminal Accommodation - #12-#10 AWG copper stranded or solid conductor only
- Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
Technical Information:
- Amperage: 20 Amp
- Applications: Commercial Specification Grade
- Base Material: Nylon
- Conductor Size: 4-12 AWG
- Connection Type: Back and Side Wired
- Current: 20 Amp
- Face Material: Nylon
- Grade: Commercial Specification
- Grounding: Grounding
- Horsepower: 1 hp
- Material: Nylon
- Mounting Type: Screw
- NEMA: 5-20R
- Number of Phases: 1 Phase
- Number of Poles: 2 Pole
- Number of Wires: 3 Wire
- Operating Temperature: -40 degrees C
- Size: Standard Sized
- Style: Smooth Face
- TC Connection: Back and Side Wired
- Type: Traditional, Standard Size
- Voltage: 125 Volt
- Wattage: 2500 Watt
- Wire Count: 3
- Wire Size: 14-10 AWG
General Product Info:
- Color: Light Almond
- Environmental Conditions: Indoor Dry Unless Protected by Additional Means

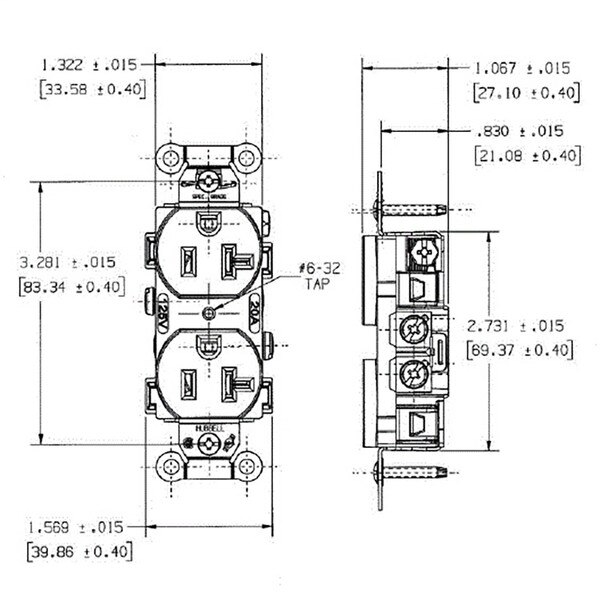

Dimensions:
- Height: 3.28 Inch
- Length: 1.32 Inch
- Width: 0.83 in
- Weight: 0.20 lb
Certifications and Compliance:
- Country of Origin: China
