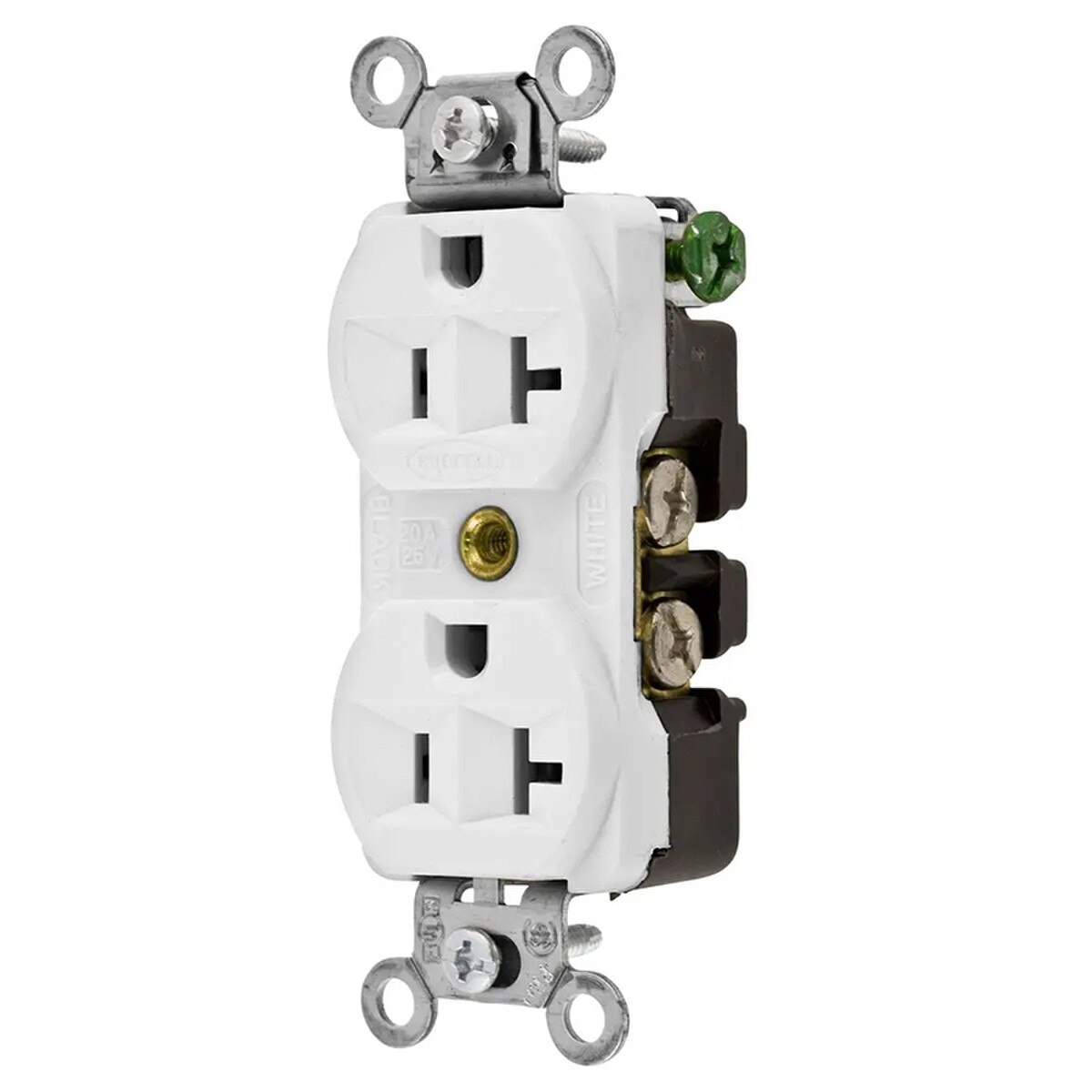

Hubbell Straight Blade Duplex Receptacle 2-Pole 3-Wire Grounding, 20A 125V, 5-20R - White

Straight Blade Devices, Receptacles, Duplex, Commercial/Industrial Grade, 2-Pole 3-Wire Grounding, 20A 125V, 5-20R, White

At A Glance:

• Slender/compact design
• Finder Groove Face
• Triple wipe contacts
• Self Grounding

General:

• Application: Hubbell-Pro Heavy Duty
• Color: White
• Environmental Conditions: Indoor Dry unless protected by additional means
• Horsepower - Maximum: 1
• Item Type: Traditional Duplex
• Material: Thermoplastic/Composite
• Material - Mounting Hardware: Screw Mounting
• Mounting Type: Screw Mount
• Number Of Poles: 2-Pole
• OEM Brand Name: Hubbell Wiring Device-Kellems
• Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact

Performance:

• Electrical - Current Interrupting - Certified for current interrupting at full rated current
• Electrical - Dielectric Voltage - Withstands 2,000V minimum
• Environmental - Flammability - UL 94 V-2
• Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact)
• Mechanical - Product Identification - Ratings are a permanent part of the device
• Mechanical - Terminal Accommodation - #12-#10 AWG copper stranded or solid conductor only
• Mechanical - Terminal Identification - Terminal wire leads identified in accordance with UL 498
• Series: Hubbell-PRO
• Size: Standard Sized Product
• Style: Finder Groove Face
• Temperature Rating: Maximum continuous 75°C; minimum -40°C (w/o impact)
• Type: Standard Duplex
• UPC: 783585835013

Dimensions:

• Dimensions: 3.28 in x 1.41 in x 1.09 in
• Display Size: Standard Sized Product
• Height: 1.09 in
• Length: 3.28 in
• Weight: 0.2 lb
• Width: 1.41 in

Electrical Ratings:

• Amperage Rating: 20 A
• Connectivity: Back and Side Wired
• Current / Amperage Rating: 20 A
• Current Rating: 20 A
• Dielectric Strength: Withstands 2,000V minimum
• Phase: Single Phase
• Voltage Rating: 125 V
• Voltage Rating Description: 125 V
• Wattage: 1875 W

Conductor Related:

• Number Of Wires: 3-Wire
• Wire Size: #12 AWG to #10 AWG

Certifications and Compliance:

• Industry Standard(s): UL File No. E2186, Certified to CSA 22.2, No. 42 File 285, Fed. Spec. W-C-596, NEMA® WD-6 Compliant
• Nema Rating: 5-20R
• Standards - RoHS Compliance Status: CM

Logistics:

• Carton Quantity: 10

Hubbell 5362W Wiring Specifications.pdf
Hubbell 5362W Dimensional Drawing.pdf
