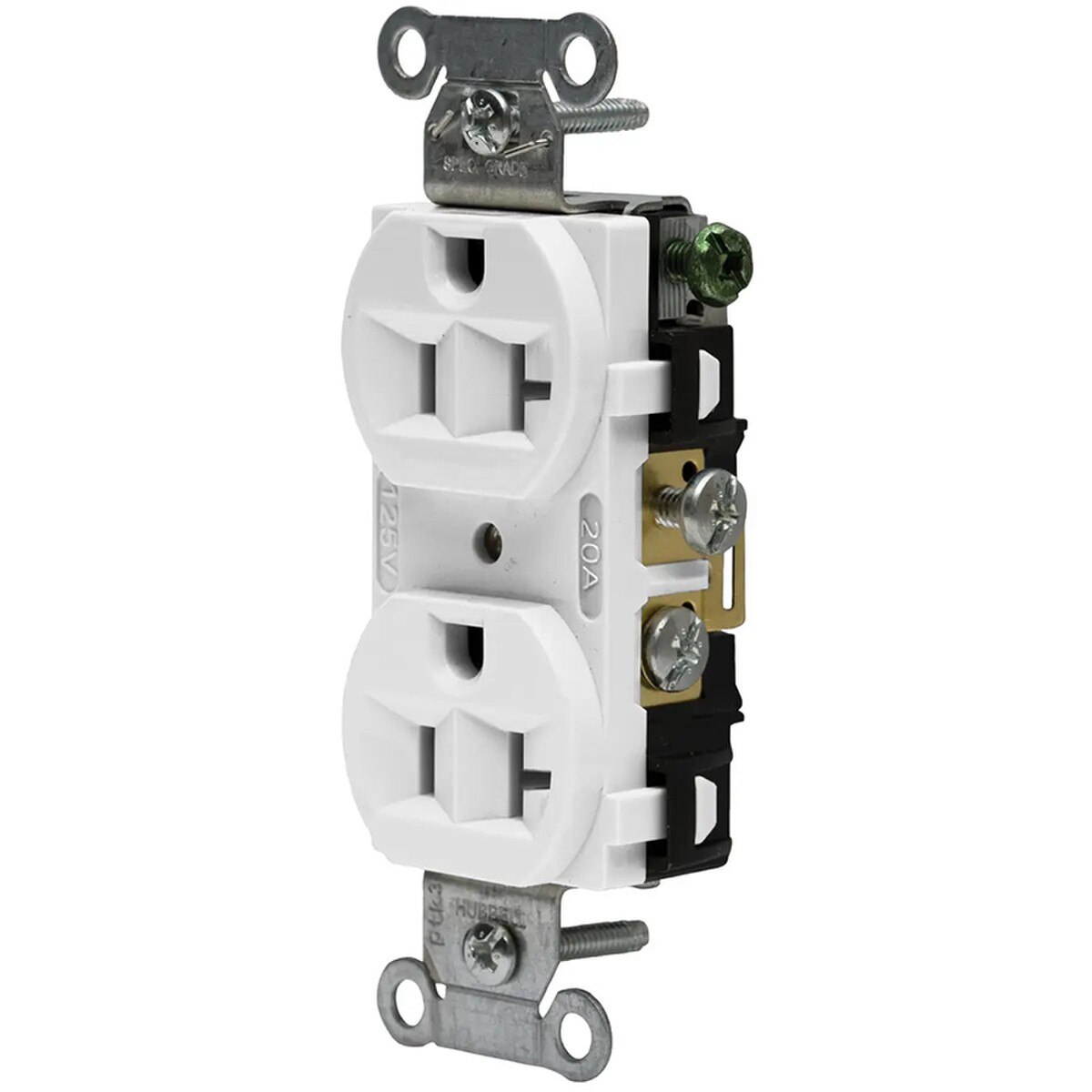

Hubbell Straight Blade Duplex Receptacle 2-Pole 3-Wire Grounding, 20A 125V, 5-20R - White

Straight Blade Devices, Receptacles, Duplex, Commercial Grade, 2-Pole 3-Wire Grounding, 20A 125V, 5-20R, White, Single Pack.

At A Glance:

• Easy access split circuit tab
• Fork terminal capable
• Finder Groove Face
• Triple wipe contacts
• Self Grounding

General:

• Application: Commercial Specification Grade
• Color: White
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• Horsepower - Maximum: 1
• Item Type: Traditional Duplex
• Material: Nylon
• Material - Mounting Hardware: Screw Mounting
• Number Of Poles: 2-Pole
• OEM Brand Name: Hubbell Wiring Device-Kellems
• Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
• Series: Commercial Specification Grade
• Style: Finder Groove Face
• Type: Standard Duplex
• UPC: 783585107905

Performance:

• Electrical - Current Interrupting - Certified for current interrupting at full rated current
• Electrical - Dielectric Voltage - Withstands 2,000V minimum
• Environmental - Flammability - UL 94 V-2
• Environmental - Operating Temperatures - Maximum continuous 75°C minimum -40°C (w/o impact)
• Mechanical - Product Identification - Ratings are a permanent part of the device
• Mechanical - Terminal Accommodation - #12-#10 AWG copper stranded or solid conductor only
• Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA

Dimensions:

• Dimensions: 1.32 in x 1.06 in x 3.28 in
• Display Size: Standard Sized Product
• Height: 3.28 in
• Length: 1.32 in
• Weight: 0.15 lb
• Width: 1.06 in

Electrical Ratings:

• Amperage Rating: 20 A
• Connectivity: Side Wired
• Current / Amperage Rating: 20 A
• Current Rating: 20 A
• Dielectric Strength: Withstands 2,000V minimum
• Phase: Single Phase
• Voltage Rating: 125 V
• Voltage Rating Description: 125 V
• Wattage: 2500 W

Conductor Related:

• Number Of Wires: 3-Wire
• Wire Size: #12 AWG to #10 AWG

Industry Standard(s):

• Certified to CSA, C22.2, No. 42
• Fed. Spec. W-C-596
• NEMA® WD-6 Compliant
• UL Listed to UL498 File No. E2186
• Nema Rating: 5-20R

Logistics:

• Carton Quantity: 10
