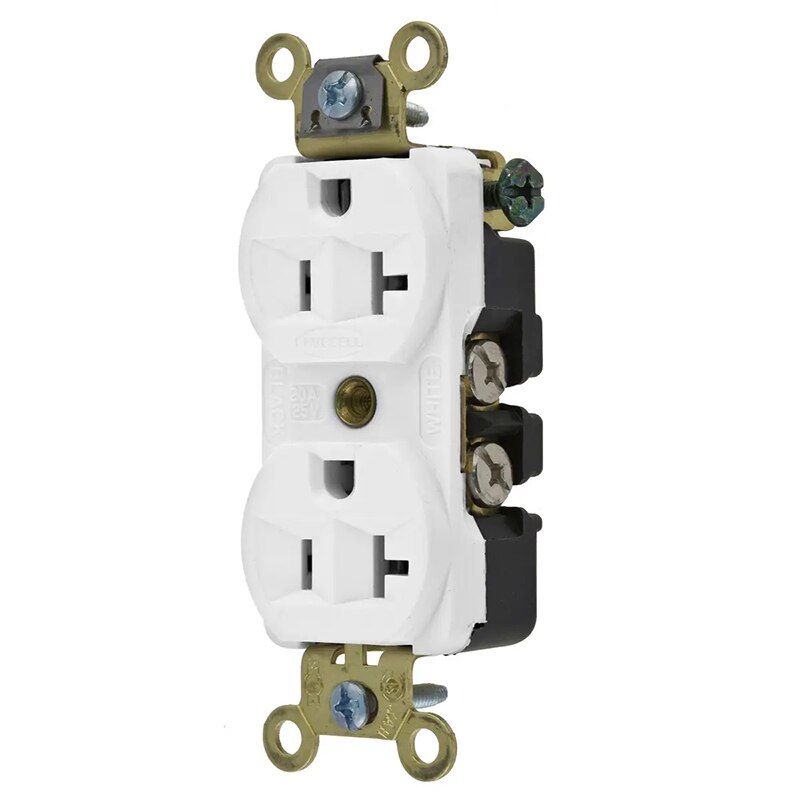

Hubbell Straight Blade Duplex Receptacle 2-Pole 3-Wire Grounding, 20A 125V, 5-20R - White

Straight Blade Devices, Receptacles, Duplex, Industrial Grade, 2-Pole 3-Wire Grounding, 20A 125V, 5-20R, White, Single Pack.

• Slender/compact design
• Brass Mounting Strap
• Triple wipe contacts
• Compact design and Self Grounding

General:

• Application: Extra Heavy Duty Compact
• Color: White
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• Horsepower - Maximum: 1
• Item Type: Traditional Duplex
• Material - Mounting Hardware: Screw Mounting
• Number Of Poles: 2-Pole
• OEM Brand Name: Hubbell Wiring Device-Kellems
• Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
• Series: Heavy Duty
• Style: Finder Groove Face
• Type: Standard Duplex
• UPC: 783585435084

Performance:

• Electrical - Current Interrupting - Certified for current interrupting at full rated current
• Electrical - Dielectric Voltage - Withstands 2,000V minimum
• Environmental - Flammability - UL 94 V-0
• Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact)
• Mechanical - Product Identification - Ratings are a permanent part of the device
• Mechanical - Terminal Accommodation - #12-#10 AWG stranded or solid copper wire only
• Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA

Dimensions:

• Dimensions: 3.28 in x 1.33 in x 1.05 in
• Display Size: Standard Sized Product
• Height: 1.05 in
• Length: 3.28 in
• Weight: 0.2 lb
• Width: 1.33 in

Electrical Ratings:

• Amperage Rating: 20 A
• Connectivity: Back and Side Wired Screw Terminals
• Current / Amperage Rating: 20 A
• Current Rating: 20 A
• Dielectric Strength: Withstands 2,000V minimum
• Phase: Single Phase
• Voltage Rating: 125 VAC
• Voltage Rating Description: 125 V
• Wattage: 2500 W

Conductor Related:

• Number Of Wires: 3-Wire
• Wire Size: #12 AWG to #10 AWG

Certifications and Compliance:

• Certified to CSA 22.2, No. 42 File 285
• Fed. Spec. W-C596G
• NEMA® WD-6 Compliant
• UL Listed to UL498 File No. E2186
• Nema Rating: 5-20R
• Standards - RoHS Compliance Status: CM

Logistics:

• Carton Quantity: 10
