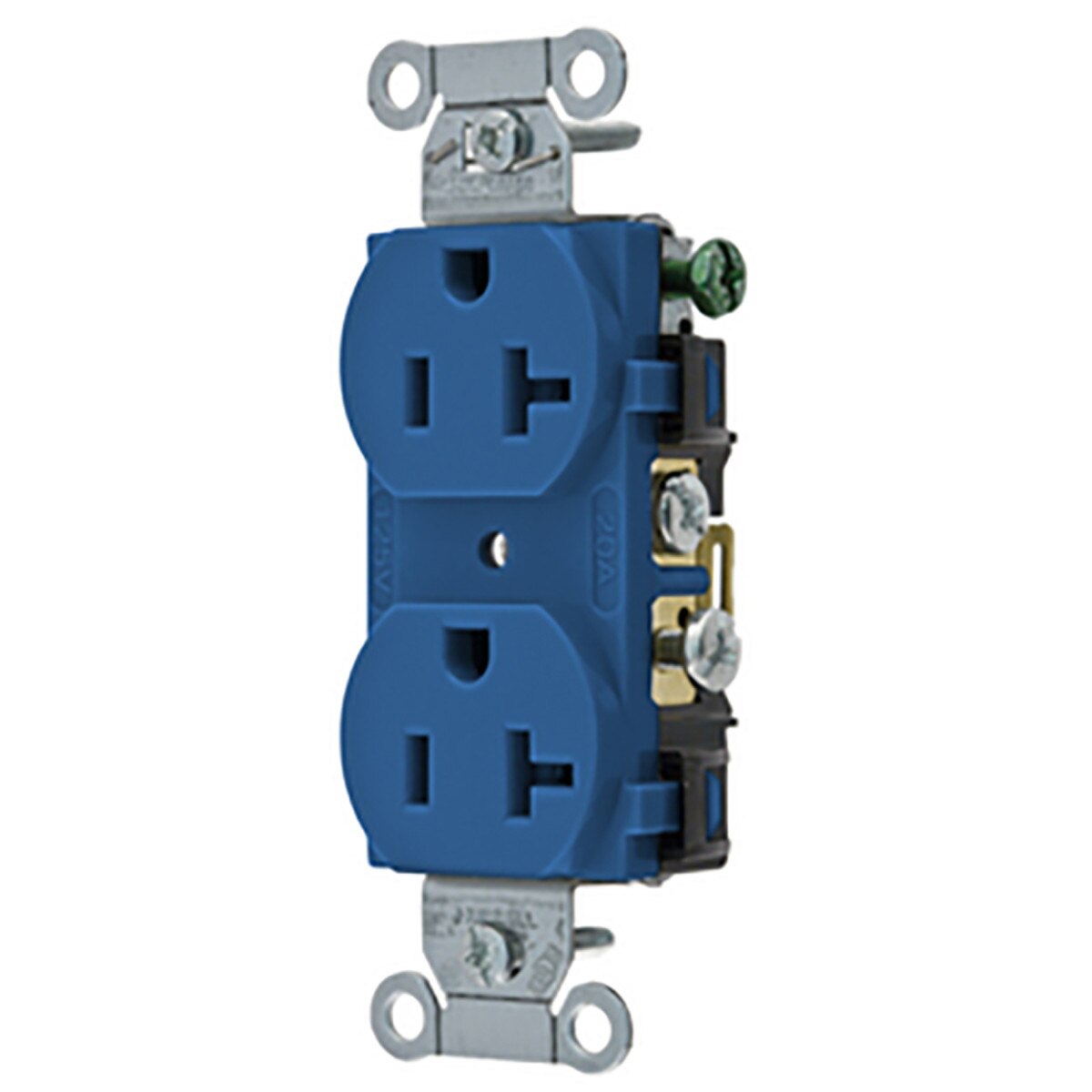

Hubbell Straight Blade Duplex Receptacle, Smooth Face, 20A 125V, 2-Pole 3-Wire Grounding, 5-20R, Side Wired Only - Blue

Straight Blade Devices, Duplex Receptacle, Commercial Grade, Smooth Face, 20A 125V, 2-Pole 3-Wire Grounding, 5-20R, Side Wired Only, Blue

• Easy access split circuit tab
• Fork terminal capable
• Smooth face
• Triple wipe contacts
• Self Grounding

General:

• Application: Commercial Specification Grade
• Color: Blue
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: No
• Item Type: Traditional Duplex
• Material: Thermoplastic
• Material - Mounting Hardware: Screw Mounting
• Number Of Poles: 2-Pole
• OEM Brand Name: Hubbell Wiring Device-Kellems
• UPC: 783585197548

Dimensions:

• Display Size: Standard Sized Product

Electrical Ratings:

• Amperage Rating: 20 A
• Connectivity: Back and Side Wired
• Current / Amperage Rating: 20 A
• Current Rating: 20 A
• Phase: Single Phase
• Voltage Rating: 125 VAC
• Wattage: 2500

Conductor Related:

• Number Of Wires: 3-Wire Grounding
• Wire Size: #14 AWG to #12 AWG

Certifications And Compliance:

• Nema Rating: 5-20R

Logistics:

• Carton Quantity: 10
• Pallet Quantity: 9000

Hubbell CR20BL Specifications.pdf
Hubbell CR20BL Dimensional Drawing.pdf
Hubbell CR20BL Warranty.pdf
