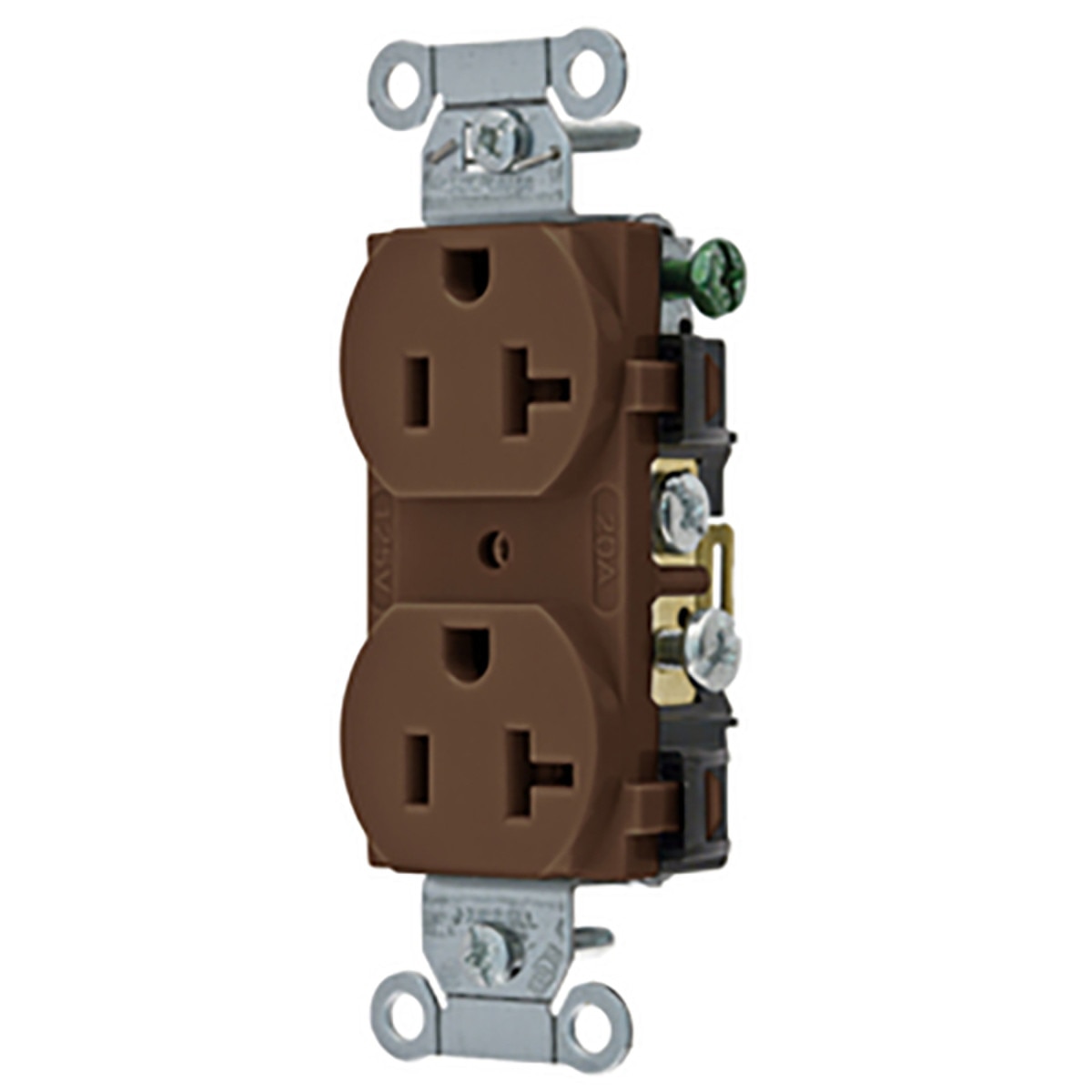

Hubbell Straight Blade Duplex Receptacles, 20A 125V, 2-Pole 3-Wire Grounding, 5-20R - Brown

(0)No Reviews yet
$3.36
SKU: Hubbell CR20

Details

Straight Blade Devices, Receptacles, Duplex, Commercial Grade, 20A 125V, 2-Pole 3-Wire Grounding, 5-20R, Brown, Single Pack.


  • Self Grounding

General:

  • Application: Commercial Specification Grade
  • Color: Brown
  • Environmental Conditions: Indoor Dry Unless Protected By Additional Means
  • EU RoHS Indicator: Yes
  • Horsepower - Maximum: 1
  • Item Type: Traditional Duplex
  • Material: Nylon
  • Material - Mounting Hardware: Screw Mounting
  • Number Of Poles: 2-Pole
  • OEM Brand Name: Hubbell Wiring Device-Kellems
  • Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
  • Series: Commercial Specification Grade
  • Style: Smooth Face
  • Type: Standard Duplex
  • UPC: 783585900100

Performance:

  • Electrical - Current Interrupting - Certified for current interrupting at full rated current
  • Electrical - Dielectric Voltage - Withstands 2,000V minimum
  • Environmental - Flammability - UL 94 V-2
  • Environmental - Operating Temperatures - Maximum continuous 75°C minimum -40°C (w/o impact)
  • Mechanical - Product Identification - Ratings are a permanent part of the device
  • Mechanical - Terminal Accommodation - #12-#10 AWG copper stranded or solid conductor only
  • Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA

Dimensions:

  • Dimensions: 1.32 in x 0.83 in x 3.28 in
  • Display Size: Standard Sized Product
  • Height: 3.28 in
  • Length: 1.32 in
  • Weight: 0.2 lb
  • Width: 0.83 in

Electrical Ratings:

  • Amperage Rating: 20 A
  • Connectivity: Side Wired
  • Current / Amperage Rating: 20 A
  • Current Rating: 20 A
  • Dielectric Strength: Withstands 2,000V minimum
  • Phase: Single Phase
  • Voltage Rating: 125 V
  • Voltage Rating Description: 125 V
  • Wattage: 2500 W

Conductor Related:

  • Number Of Wires: 3-Wire
  • Wire Size: #12 AWG to #10 AWG

Industry Standard(s):

  • Certified to CSA, C22.2, No. 42
  • Fed. Spec. W-C-596
  • NEMA® WD-6 Compliant
  • UL Listed to UL498 File No. E2186

Certifications And Compliance:

  • Nema Rating: 5-20R
  • Standards - RoHS Compliance Status: CM

Logistics:

  • Carton Quantity: 10
  • Pallet Quantity: 9000


Hubbell CR20 Specifications.pdf
Hubbell CR20 Dimensional Drawing.pdf
Hubbell CR20 Warranty.pdf
