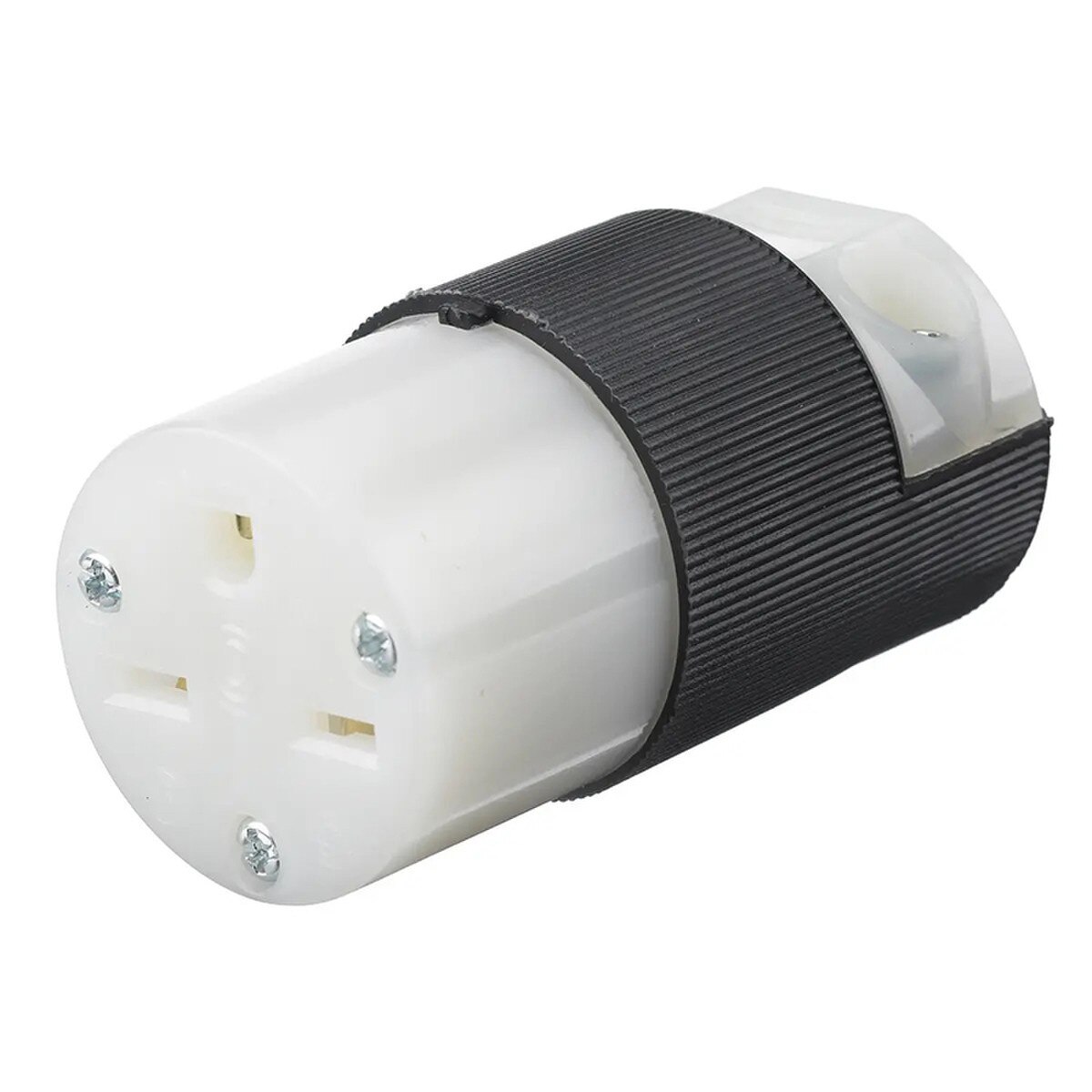

Hubbell Straight Blade Female Insulgrip Connector Body, 15A 250V, 6-15R - Black and White

Straight Blade Devices, Female Connector Body, Insulgrip Heavy Duty, Industrial/Commercial Grade, Straight, 2- Pole 3-Wire Grounding, 15A 250V, 6-15R, Black and White, Single Pack.

• Individual wiring terminals completely enclosed
• Powerful, offsetting cord grips clamp on individual conductors
• Fast lead assembly screws
• Beveled housing prevents snagging
• Standard Product

General:

• Application: Industrial/Commercial
• Cord Range: 0.230"-0.720" (5.8-18.3)
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• Insulation: Insulated Body
• Item Type: Insulgrip
• Material: Nylon
• Material - Mounting Hardware: Cord Mounted
• Number Of Poles: 2-Pole
• OEM Brand Name: Hubbell Wiring Device-Kellems
• Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
• Series: Insulgrip®
• Style: Standard
• Temperature Rating: Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
• Type: Connector Body
• UPC: 783585175805

Performance:

• Electrical - Current Interrupting - Certified for current interrupting at full rated current
• Electrical - Dielectric Voltage - Withstands 2,000V minimum
• Environmental - Flammability - UL 94 HB or better
• Environmental - IP Suitability - IP20
• Environmental - Operating Temperatures - Maximum continuous 75°C minimum -40°C (w/o impact)
• Mechanical - Product Identification - Ratings are a permanent part of the device
• Mechanical - Terminal Accommodation - #18-10 AWG copper conductors only
• Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA

Dimensions:

• Dimensions: 2.78 in x 1.53 in x 1.53 in
• Display Size: Standard
• Height: 1.53 in
• Length: 2.78 in
• Weight: 0.15 lb
• Width: 1.53 in

Electrical Ratings:

• Amperage Rating: 15 A
• Connectivity: Screw Terminals
• Current / Amperage Rating: 15 A
• Current Rating: 15 A
• Dielectric Strength: Withstands 2,000V minimum
• Voltage Rating: 250 V
• Voltage Rating Description: 250 V
• Wattage: 3750 W

Conductor Related:

• Conductor Range: #14 AWG to #12 AWG
• Number Of Conductors: 3-Wire Grounding
• Number Of Wires: 3-Wire
• Wire Size: #18 AWG to #10 AWG

Certifications and Compliance:

• CSA Certified to C22.2 No. 42 File 280
• NEMA® WD-6 Compliant
• UL Listed to UL498 File E1706
• Nema Rating: 6-15R
• Standards - RoHS Compliance Status: CM

Logistics:

• Carton Quantity: 10
• Pallet Quantity: 4000
