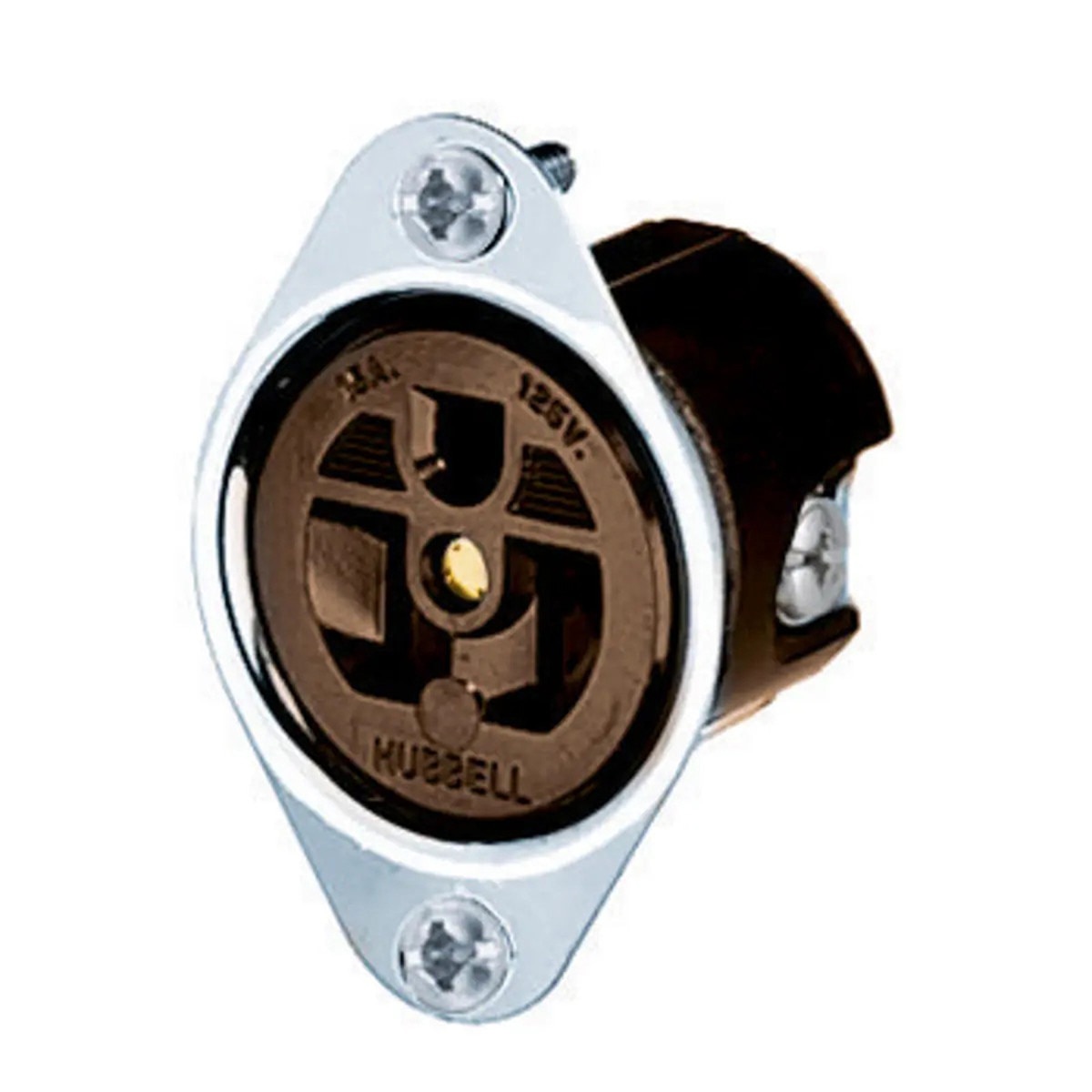

Hubbell Straight Blade Flanged Receptacle, Commercial /Industrial Grade, 2-Pole 3-Wire Grounding, 15A 125V, 5-15R - Brown

Straight Blade Devices, Receptacles, Flanged, Commercial /Industrial Grade, 2-Pole 3-Wire Grounding, 15A 125V, 5-15R, brown, Single Pack.

Stainless steel flange

General:

• Application: Heavy Duty
• Catalog Number: HBL5256
• Color: Brown
• Cord Range: 0.230"-0.720" (5.8-18.3)
• EU RoHS Indicator: No
• Material: Stainless Steel
• Material - Mounting Hardware: Screw Mounting
• Number Of Poles: 2-Pole
• OEM Brand Name: Hubbell Wiring Device-Kellems
• Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
• UPC: 783585013046

Specifications:

• Face - Phenolic
• Mounting Screw - Nickel plated brass
• Power Contacts - .040" (1.0) Brass
• Terminal Screw - #8-32 Brass, Multiple Drive

Dimensions:

• Weight: 0.15 lb

Electrical Ratings:

• Amperage Rating: 15 A
• Connectivity: Screw Terminals
• Dielectric Strength: Withstands 2,000V minimum
• Phase: Single Phase
• Voltage Rating: 125 V
• Wattage: 1875 W

Conductor Related:

• Number Of Wires: 3-Wire
• Wire Size: #14 AWG to #10 AWG

Certifications And Compliance:

• EU RoHS Indicator: No
• Nema Rating: 5-15R
• Standards - RoHS Compliance Status: CM

Industry Standard(s):

• Certified to CSA, C22.2, No. 42
• NEMA® WD-6 Compliant
• UL Listed, File E2186

Operational:

• Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact

Configuration:

• Number Of Poles: 2-Pole

Logistics:

• Carton Quantity: 10
• Pallet Quantity: 5000
