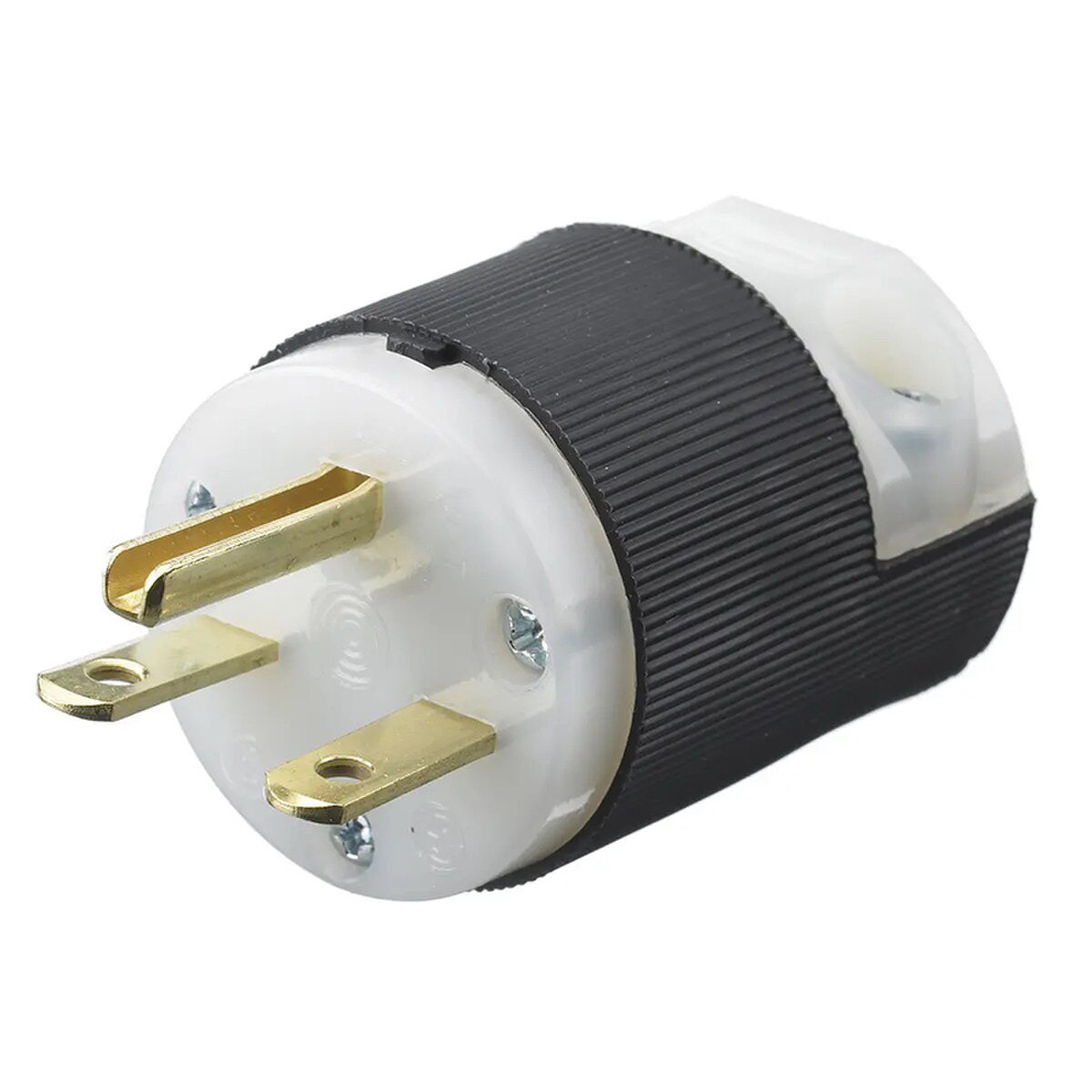

Hubbell Straight Blade Insulgrip Male Plug, 2-Pole 3- Wire Grounding, 15A 250V, 6-15P - Black and White

Straight Blade Devices, Male Plug, Insulgrip Heavy Duty, Industrial/Commercial Grade, Straight, 2-Pole 3- Wire Grounding, 15A 250V, 6-15P, Black and White, Single Pack.

• Ribbed nylon housing is impact and chemical resistant
• VARI-SIZE adjustable cord clamp
• Fast lead assembly screws
• Beveled housing prevents snagging

General:

• Color: Black and White
• Environmental Conditions: Ribbed Nylon Housing Is Impact and Chemical Resistant
• Horsepower - Maximum: 1.5
• Item Type: Insulgrip Plug
• Number Of Poles: 2-Pole
• OEM Brand Name: Hubbell Wiring Device-Kellems
• Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
• Series: Insulgrip®
• Style: Standard
• Type: Plug
• UPC: 783585175607

Performance:

• Electrical - Current Interrupting - Certified for current interrupting at full rated current
• Electrical - Dielectric Voltage - Withstands 2,000V minimum
• Environmental - Flammability - UL 94 HB or better
• Environmental - IP Suitability - IP20
• Environmental - Operating Temperatures - Maximum continuous 75°C minimum -40°C (w/o impact)
• Mechanical - Terminal Accommodation - #18-10 AWG. Standed copper wire only
• Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA

Dimensions:

• Dimensions: 1.97 in x 1.53 in x 1.53 in
• Height: 1.53 in
• Length: 1.97 in
• Weight: 0.15 lb
• Width: 1.53 in

Electrical Ratings:

• Amperage Rating: 15 A
• Current / Amperage Rating: 15 A
• Current Rating: 15 A
• Dielectric Strength: Withstands 2,000V minimum
• Voltage Rating: 250 V
• Voltage Rating Description: 250 V
• Wattage: 3750 W

Conductor Related:

• Number Of Wires: 3-Wire
• Wire Size: #18 AWG to #10 AWG

Certifications and Compliance:

• CSA Certified to C22.2 No. 42 File 280
• NEMA® WD-6 Compliant
• UL Listed to UL498 File E1706
• Nema Rating: 6-15P
• Standards - RoHS Compliance Status: CM

Logistics:

• Carton Quantity: 10
• Pallet Quantity: 6600
