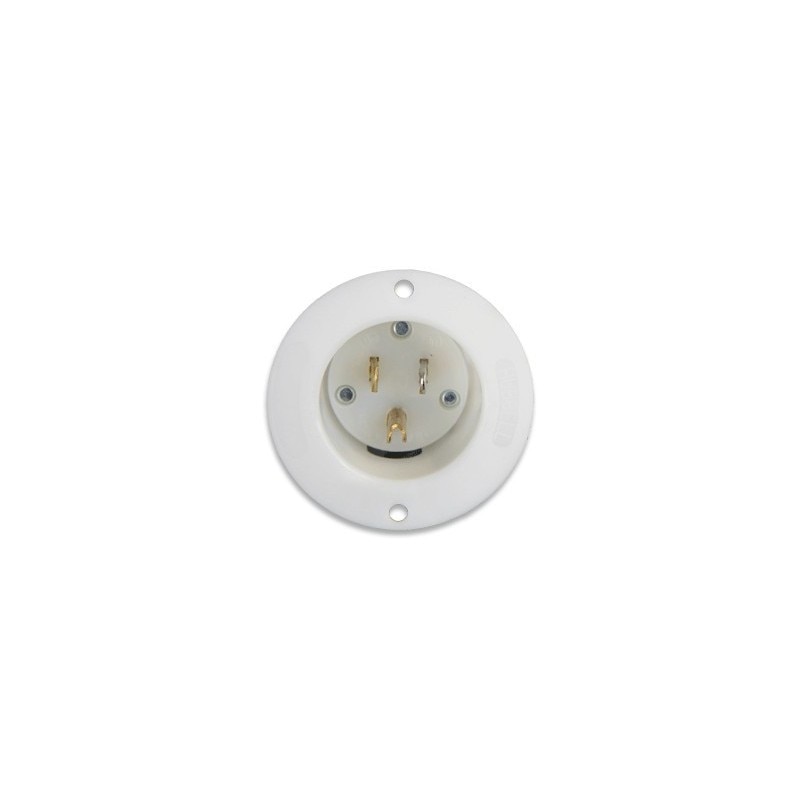

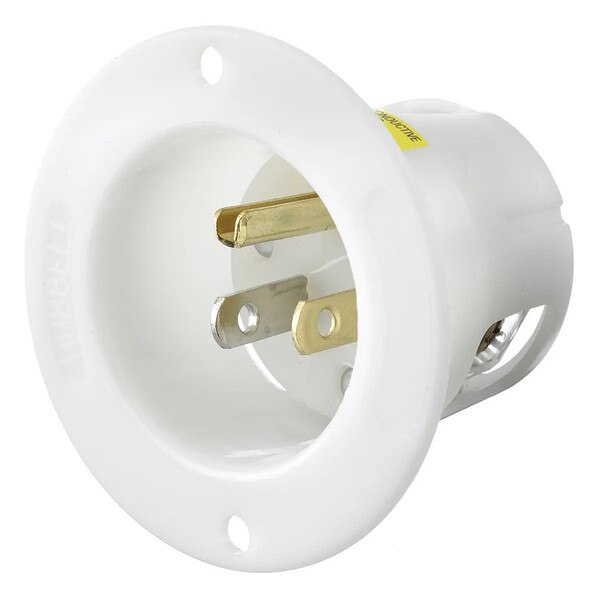

Hubbell Straight Blade Male Flanged Inlets, 15A 125V, 2-Pole 3-Wire Grounding, 5-15P - White

Straight Blade Devices, Male Inlets, Flanged, Industrial/Commercial, 15A 125V, 2-Pole 3-Wire Grounding, 5- 15P, White, Single Pack.

• Impact resistant thermoplastic construction
• Backwired terminations for ease of installation
• #8-32 Multiple drive terminal screws
• Mounting screws included

General:

• Application: Extra Heavy Duty Industrial
• Color: White
• Cord Range: 0.230"-0.360" (5.8-18.3)
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• Horsepower - Maximum: 0.50
• Insulation: Insulated Body
• Item Type: Standard Single
• Material: Nylon
• Material - Mounting Hardware: Screw Mounting
• Number Of Poles: 2-Pole
• OEM Brand Name: Hubbell Wiring Device-Kellems
• Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
• Series: Insulgrip®
• Style: Standard
• Type: Flanged Inlet
• UPC: 783585173504

Performance:

• Electrical - Current Interrupting - Certified for current interrupting at full rated current
• Electrical - Dielectric Voltage - Withstands 2,000V minimum
• Environmental - Flammability - UL 94 V-2
• Environmental - Operating Temperatures - Maximum continuous 75°C minimum -40°C (w/o impact)
• Mechanical - Product Identification - Ratings are a permanent part of the device
• Mechanical - Terminal Accommodation - #18-#10 AWG copper stranded or solid conductor only
• Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
• Temperature Rating: Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.

Dimensions:

• Dimensions: 1.71 in x 1.69 in x 1.71 in
• Display Size: Standard Sized Product
• Height: 1.71 in
• Length: 1.71 in
• Weight: 0.1 lb
• Width: 1.69 in

Electrical Ratings:

• Amperage Rating: 15 A
• Connectivity: Screw Terminals
• Current / Amperage Rating: 15 A
• Current Rating: 15 A
• Dielectric Strength: Withstands 2,000V minimum
• Phase: Single Phase
• Voltage Rating: 125 VAC
• Voltage Rating Description: 125 V
• Wattage: 1875 W

Conductor Related:

• Conductor Range: #18 AWG to #10 AWG
• Number Of Wires: 3-Wire
• Wire Size: #18 AWG to #12 AWG

Certifications and Compliance:

• Certified to CSA, C22.2, No. 42
• NEMA® WD-6 Compliant
• UL Listed, File E2186
• Nema Rating: 5-15P
• Standards - RoHS Compliance Status: CM

Logistics:

• Carton Quantity: 10
• Pallet Quantity: 4500
