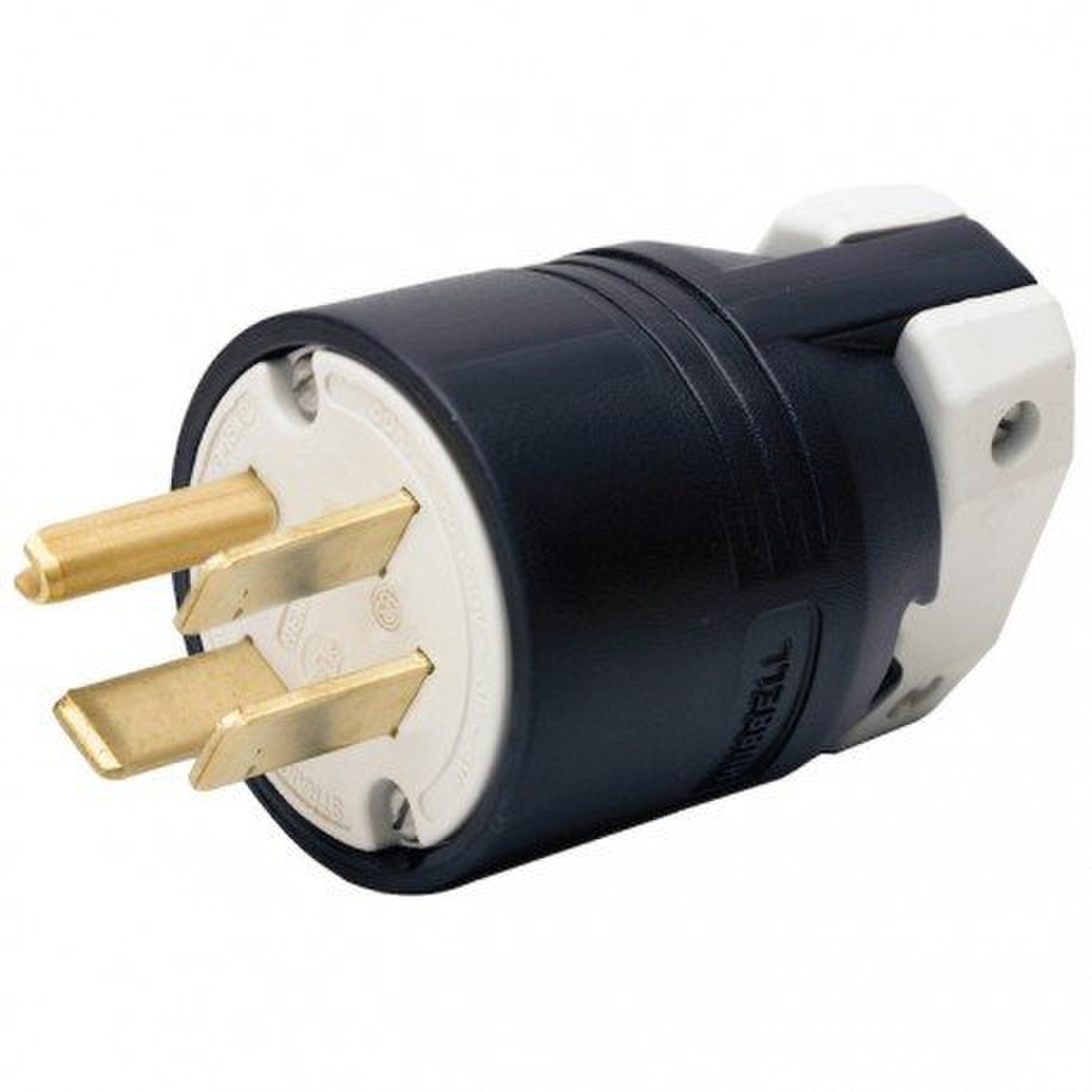

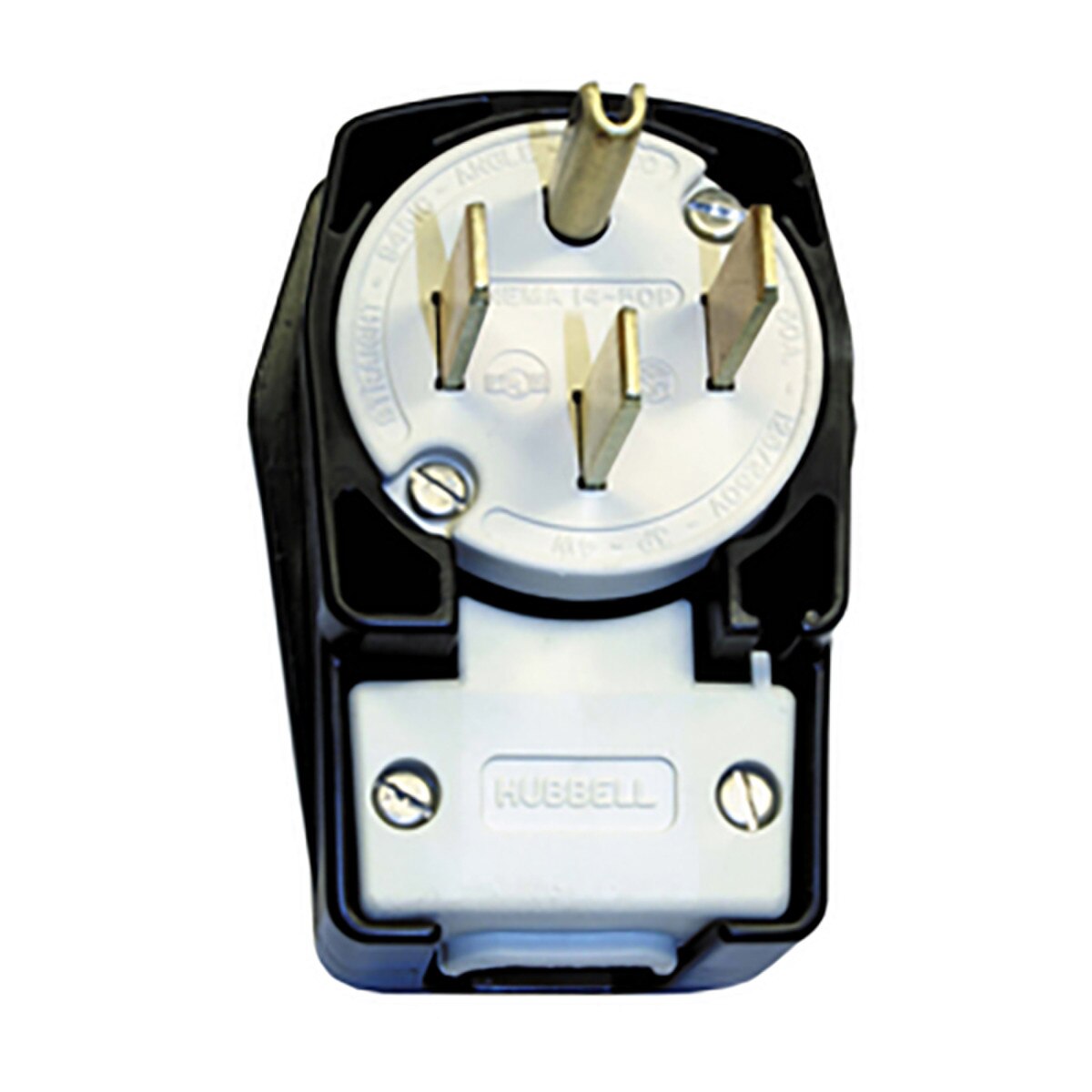

Hubbell Straight Blade Male Nylon Plug, 4-Position, Angled, 3-Pole 4-Wire Grounding, 50A 125/250V, 14-50P
Details
Straight Blade Devices, Male Plug, Nylon, 4-Position, Heavy Duty, Industrial/Commercial Grade, Angled, 3-Pole 4-Wire Grounding, 50A 125/250V, 14-50P, Black, Single Pack.
General:
- Color: Black
- Cord Range: 0.625"-1.310"
- EU RoHS Indicator: Contact Manufacturer
- Horsepower - Maximum: 3
- Material: Nylon
- Number Of Poles: 3-Pole
- OEM Brand Name: Hubbell Wiring Device-Kellems
- Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
- Series: Extra Heavy Duty
- Style: Grounding
- Type: Plug
- UPC: 783585015330
Dimensions:
- Dimensions: 4.5 in x 3.38 in x 2.37 in
- Height: 2.37 in
- Length: 4.5 in
- Weight: 0.8 lb
- Width: 3.38 in
Electrical Ratings:
- Amperage Rating: 50 A
- Current / Amperage Rating: 50 A
- Current Rating: 50 A
- Dielectric Strength: Withstands 2,000V minimum
- Voltage Rating: 125 V, 250 V
- Voltage Rating Description: 125/250 V
Conductor Related:
- Number Of Wires: 4-Wire
Certifications And Compliance:
- UL Listed to UL498 File E1706, CSA Certified to C22.2 No. 42 File 280
- Nema Rating: 14-50P
Logistics:
- Carton Quantity: 5
- Pallet Quantity: 765
Hubbell HBL9452C Instruction Manual.pdf
Hubbell HBL9452C Specifications.pdf
Hubbell HBL9452C Dimensional Drawing.pdf
Hubbell HBL9452C Warranty.pdf
